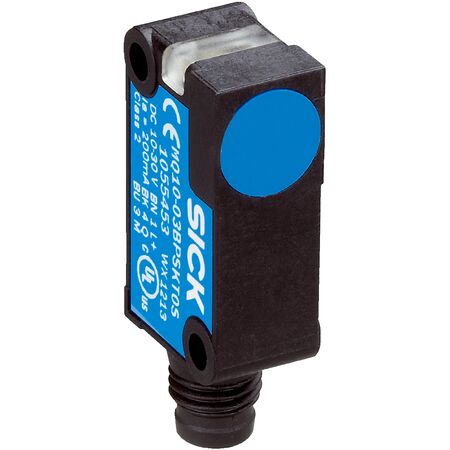

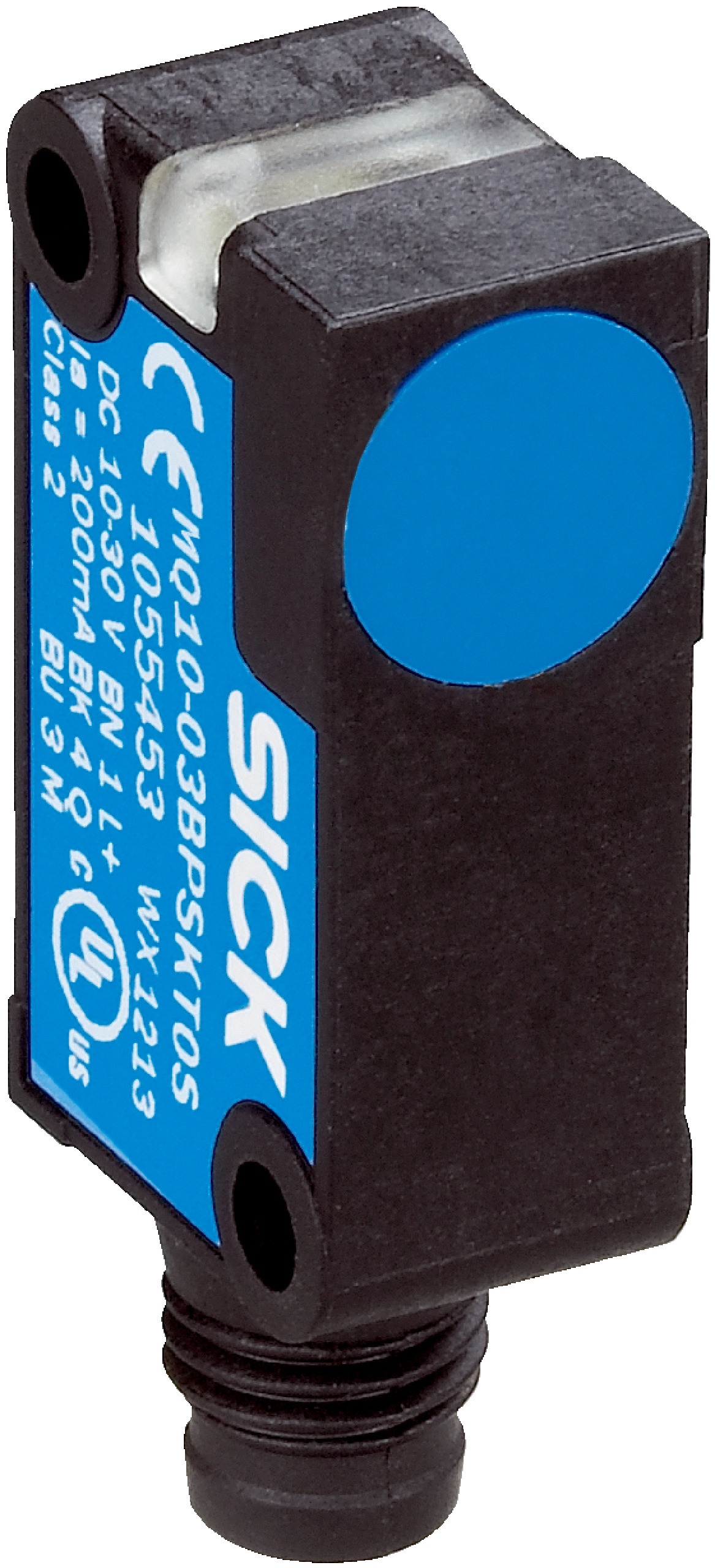

Rectangular Proximity Sensor | 60mm Sensing Range | IP67 Rated | 1000Hz Switching Frequency | by SICK
The Rectangular Proximity Sensor MQ10-60APSKT0 offers a sensing range of up to 60 mm and a safe sensing range of 48.6 mm, making it ideal for industrial automation and safety monitoring applications. With a high switching frequency of 1,000 Hz and an IP67 rated enclosure, this sensor is built for durability and reliability in harsh environments, ensuring optimal performance in manufacturing and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Rectangular plastic VISTAL®
- Sensing range Sn: 0 mm to 60 mm
- Safe sensing range Sa: 48.6 mm
- Magnetic sensitivity: 1 mT
- Switching frequency: 1,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.5 V
- Current consumption: 5 mA
- Time delay before availability: ≤ 26 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +75°C
- Housing and sensing face material: Plastic, VISTAL®
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with compact dimensions
- Sensing range up to 60 mm with safe sensing range of 48.6 mm
- High switching frequency of 1,000 Hz for fast response
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant for harsh environments
- Wide operating temperature range from -25°C to +75°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Energy-efficient operation with low current consumption
- Supports sustainable industrial automation by improving process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MQ10-60APSKT0 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
