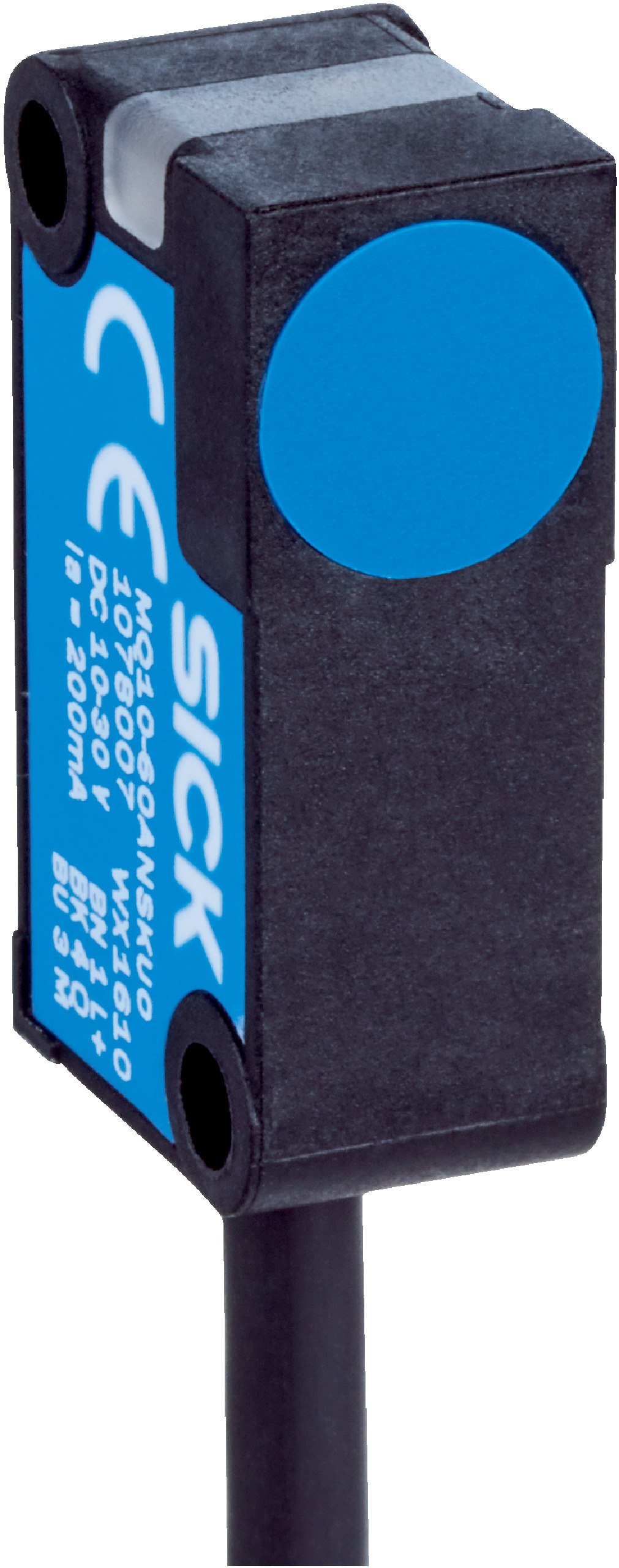

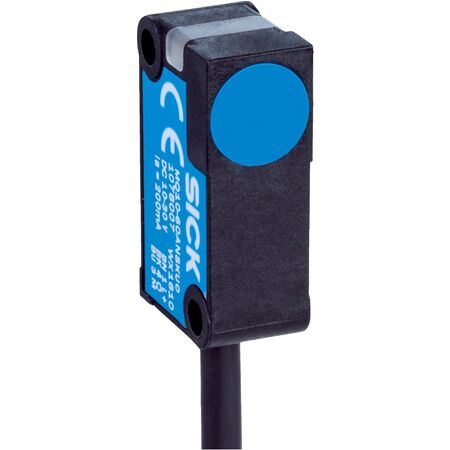

Rectangular Proximity Sensor | 60mm Sensing Range | 1000Hz Switching Frequency | IP67 Rated | by SICK
The Rectangular Proximity Sensor MQ10-60APSKRDS04 offers a sensing range of up to 60 mm and a high switching frequency of 1,000 Hz, making it ideal for industrial automation and safety control applications. Built for durability with an IP67 rating, this sensor ensures reliable performance in harsh environments, providing reverse polarity and short-circuit protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Sensing range Sn: 0 mm to 60 mm
- Safe sensing range Sa: 48.6 mm
- Voltage drop: ≤ 1.5 V
- Current consumption: 5 mA
- Time delay before availability: ≤ 26 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable: PUR material, 0.21 m length, M8 3-pin plug
- Protection: Reverse polarity, short-circuit, power-up pulse
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Operating temperature: -25 °C to +75 °C
- Housing and sensing face material: Plastic, VISTAL®
- Enclosure rating: IP67
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with durable plastic VISTAL® material
- Sensing range up to 60 mm with safe sensing range of 48.6 mm
- High switching frequency of 1,000 Hz for fast response
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Position sensing in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 5 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MQ10-60APSKRDS04 proximity sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
