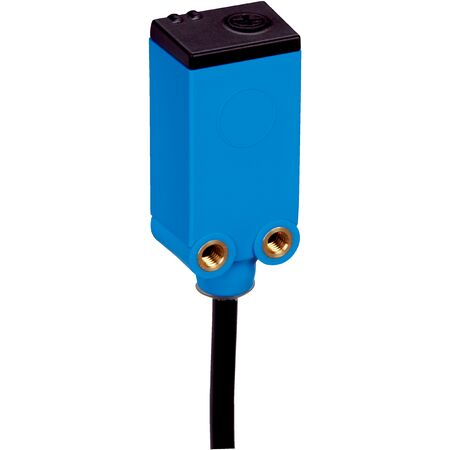

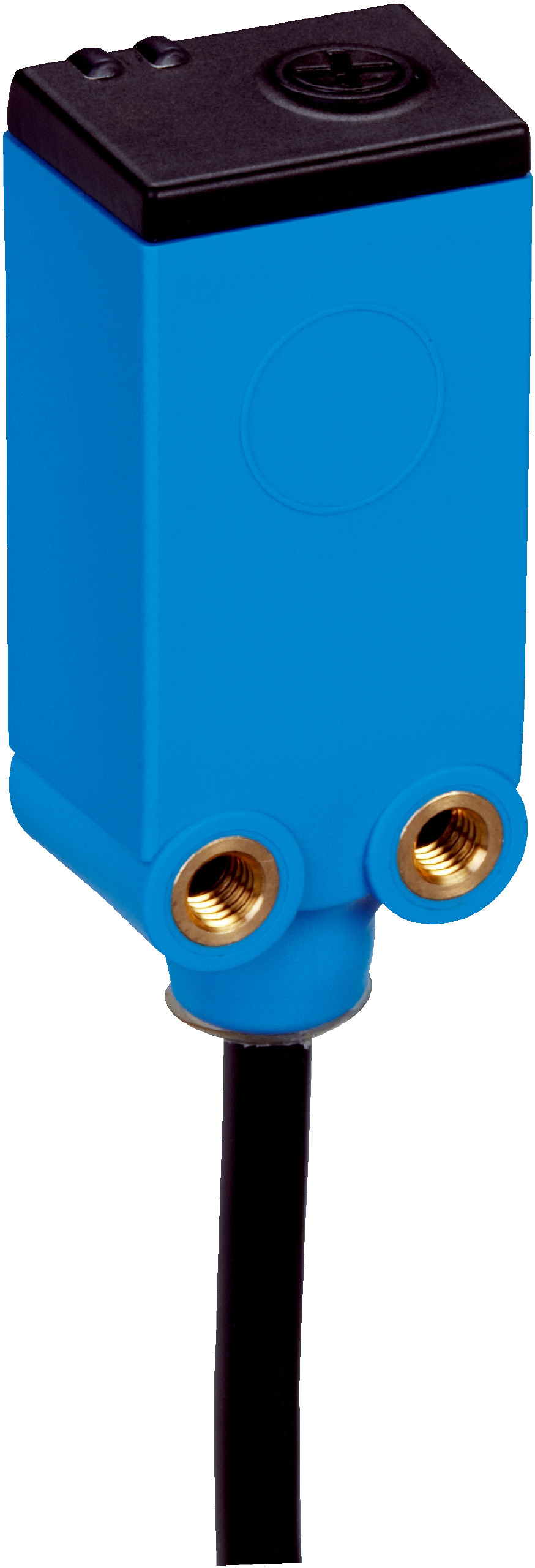

Rectangular Proximity Sensor CQ4-08EPOKP1 | IP67 Rated | 1mm to 8mm Sensing Range | 100 Hz Switching Frequency | by SICK
The CQ4-08EPOKP1 Rectangular Proximity Sensor is designed for industrial automation, featuring an IP67 rated enclosure for robust protection and a sensing range from 1mm to 8mm. With a high switching frequency of 100 Hz and PNP normally closed output, it’s perfect for safety and control systems in manufacturing environments, ensuring reliable object detection and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching output: PNP, normally closed
- Switching frequency: 100 Hz
- Sensing range Sn: 1 mm to 8 mm
- Safe sensing range Sa: 5.76 mm
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Time delay before availability: ≤ 200 ms
- Cable length: 0.3 m with M8 3-pin connector
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Operating temperature: -20°C to +75°C
- Storage temperature: -40°C to +85°C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 39.5mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 rated enclosure for robust protection
- Sensing range from 1 mm to 8 mm with safe sensing range of 5.76 mm
- High switching frequency of 100 Hz with PNP normally closed output
- Cable with M8 3-pin connector for easy connection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20°C to +75°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Non-flush and flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with efficient DC 3-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CQ4-08EPOKP1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
