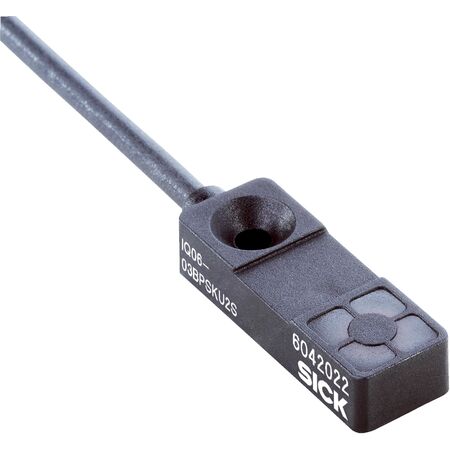

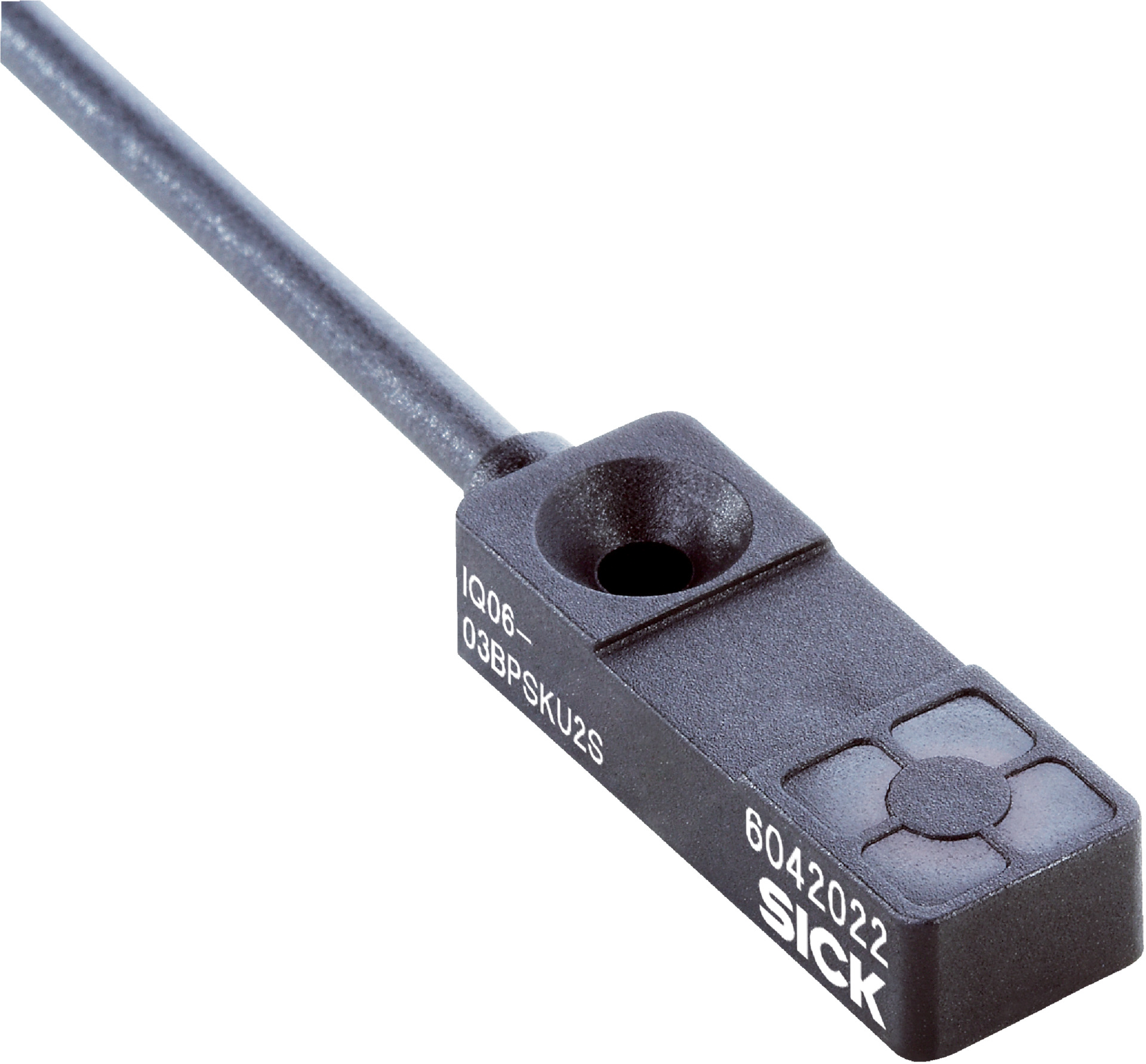

Rectangular Proximity Sensor | IP67 Rated | 1000 Hz Switching Frequency | PNP Output | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 1000 Hz and an IP67 rated enclosure for dust and water protection. Ideal for object detection and position sensing in manufacturing lines, this sensor ensures reliable performance with a sensing range of 3 mm and robust shock resistance, making it perfect for machine safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 1,000 Hz
- Switching output: PNP, normally open
- Connection type: 3-wire cable, 3 m length
- Voltage drop: < 1.5 V
- Hysteresis: 1% to 15%
- Reproducibility: ±1%
- Temperature drift: ±10%
- Continuous current: ≤ 100 mA
- Cable material: PUR, diameter 3 mm
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +70 °C
- Housing material: Plastic PA6
- Enclosure rating: IP67
- Dimensions (H x L x W): 30mm x 6mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 3 mm
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ06-03BPSKU3S sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
