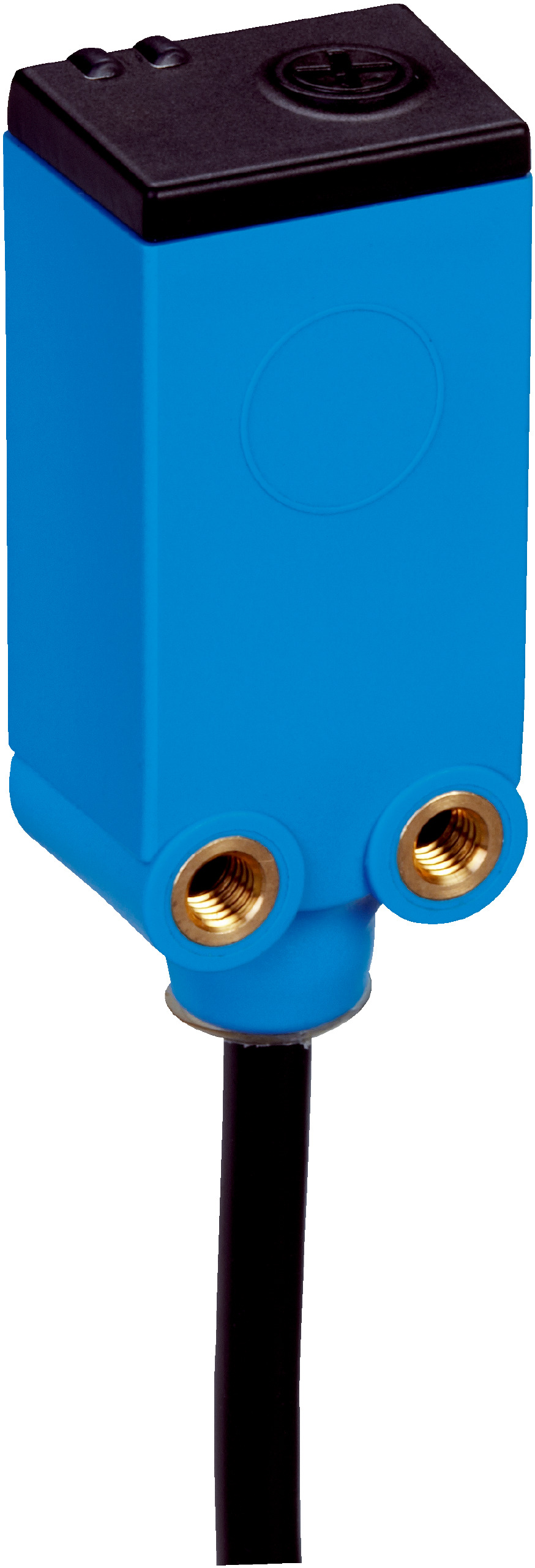

Rectangular Proximity Sensor | IP67 Rated | 1mm to 8mm Sensing Range | 100Hz Switching Frequency | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a sensing range of 1mm to 8mm. With a high switching frequency of 100Hz and PNP normally open output, it ensures reliable object detection and safety monitoring in various applications. Ideal for manufacturing process control, this sensor is built to withstand harsh environments with a wide operating temperature range from -20°C to +75°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching output: PNP, normally open
- Switching frequency: 100 Hz
- Sensing range Sn: 1 mm to 8 mm
- Safe sensing range Sa: 5.76 mm
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Time delay before availability: ≤ 200 ms
- Cable: 3-wire PVC, 2 m length
- Enclosure rating: IP67
- Operating temperature: -20 °C to +75 °C
- Storage temperature: -40 °C to +85 °C
- Housing material: Plastic ABS
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 39.5mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating for robust protection
- Sensing range from 1 mm to 8 mm with safe sensing range of 5.76 mm
- High switching frequency of 100 Hz with PNP normally open output
- 3-wire DC connection with 2 m cable included
- Adjustment potentiometer with 5 turns for sensitivity tuning
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and sensor positioning for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-flush and flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design reduces downtime and resource use in industrial environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

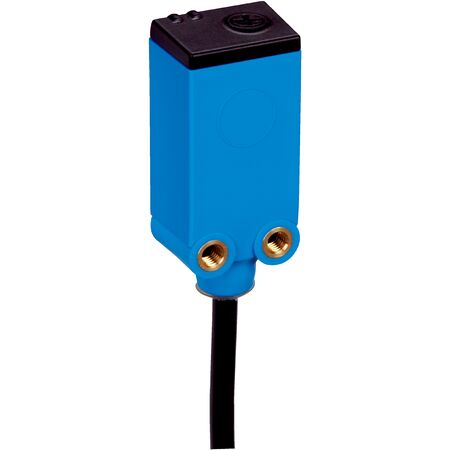

The SICK CQ4-08EPSKU1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
