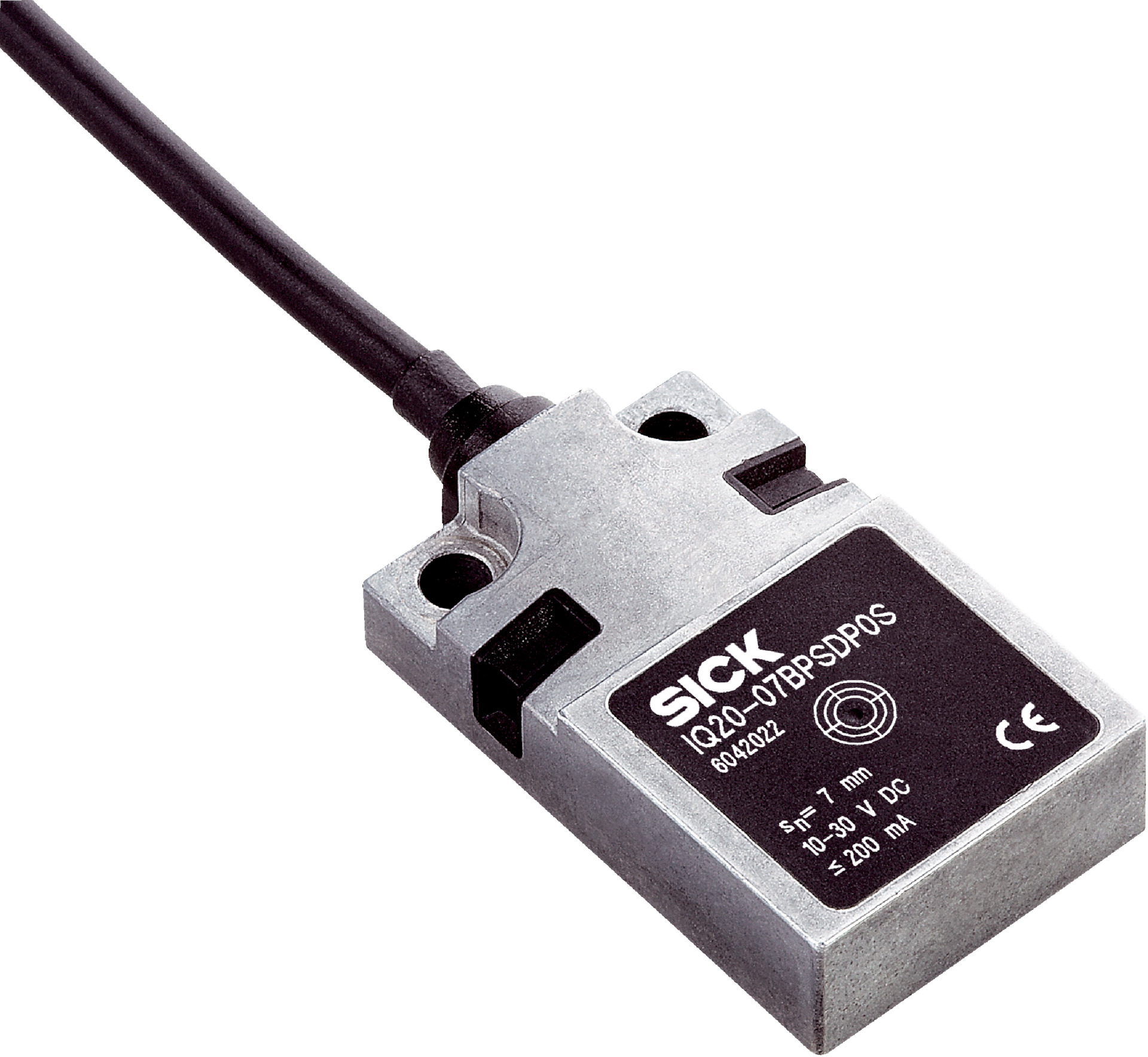

Rectangular Proximity Sensor | IP67 Rated | 7mm Sensing Range | PNP Output | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring a robust zinc diecast housing and a sensing range of 7 mm. With an IP67 enclosure rating and a high switching frequency of 150 Hz, it's perfect for object detection in manufacturing and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Rectangular zinc diecast with plastic PA12 sensing face
- Dimensions: 20 mm x 32 mm x 8 mm
- Sensing range Sn: 7 mm
- Safe sensing range Sa: 5.67 mm
- Installation type: Flush
- Switching frequency: 150 Hz
- Connection type: Cable with M8, 3-pin connector, 0.3 m
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: < 2.5 V
- Time delay before availability: ≤ 20 ms
- Hysteresis: 1% to 15%
- Reproducibility: ± 5%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR
- Short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 32mm x 8mm x 20mm
- Weight: 0.1 kg
Key Features
- Rectangular zinc diecast housing with plastic sensing face
- Flush installation type with IP67 enclosure rating
- Sensing range of 7 mm with safe sensing range of 5.67 mm
- PNP switching output with normally open function
- High switching frequency of 150 Hz
- Short-circuit protection and shock/vibration resistance
- Wide supply voltage range from 10 V DC to 30 V DC
- Cable with M8 3-pin connector, 0.3 m length
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient DC 3-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

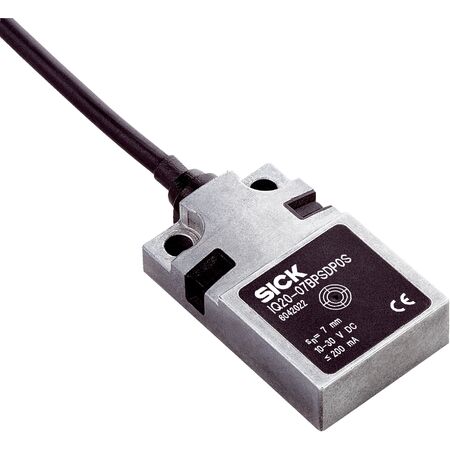

The SICK IQ20-07BPSDP0S proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
