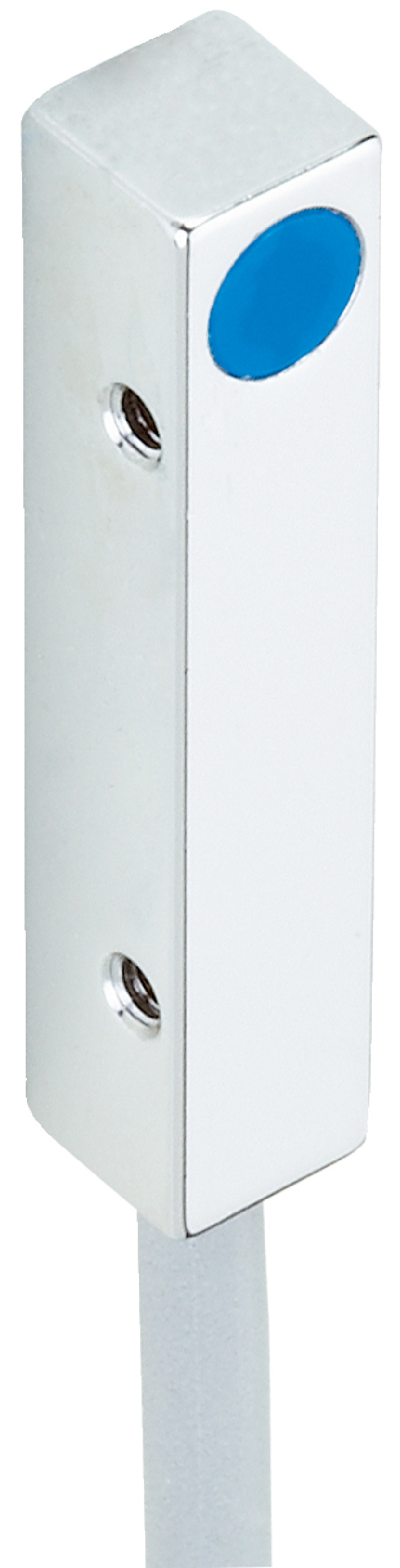

Rectangular Proximity Sensor | IP67 Rated | High Switching Frequency | PNP Output | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring an IP67 rated enclosure for dust and water protection, and a high switching frequency of 5,000 Hz. Ideal for precise object detection and position sensing in manufacturing lines, this sensor ensures reliable performance with a sensing range of 0.8 mm and a durable brass housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1.5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR
- Conductor size: 0.06 mm²
- Switching output: PNP, normally open
- Switching frequency: 5,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, POM
- Dimensions (H x L x W): 25mm x 5mm x 5mm
- Weight: 0.1 kg
Key Features
- Rectangular brass housing with chromium plating
- Flush installation type
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- Cable connection type, 3-wire, 2 meters length
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency, minimizing waste
- Energy-efficient operation with low voltage DC supply
- Long service life (MTTFD 186 years) reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

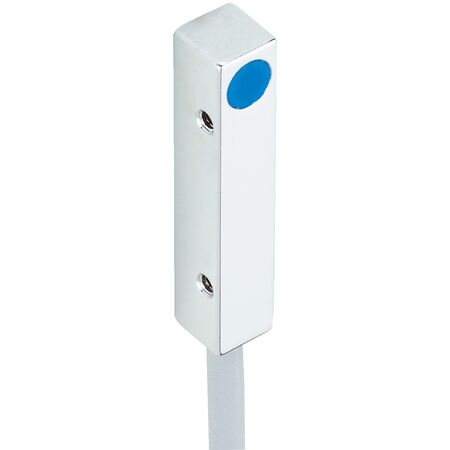

The SICK IQ05-0B8PS-ZU1 proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
