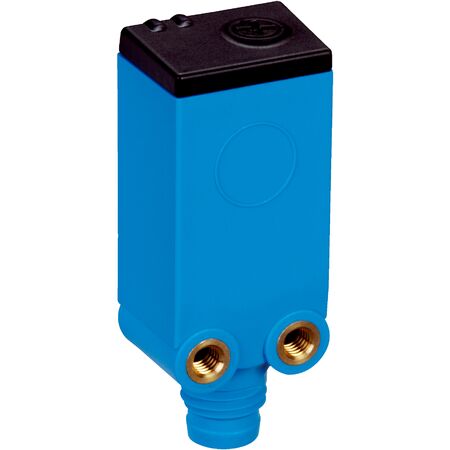

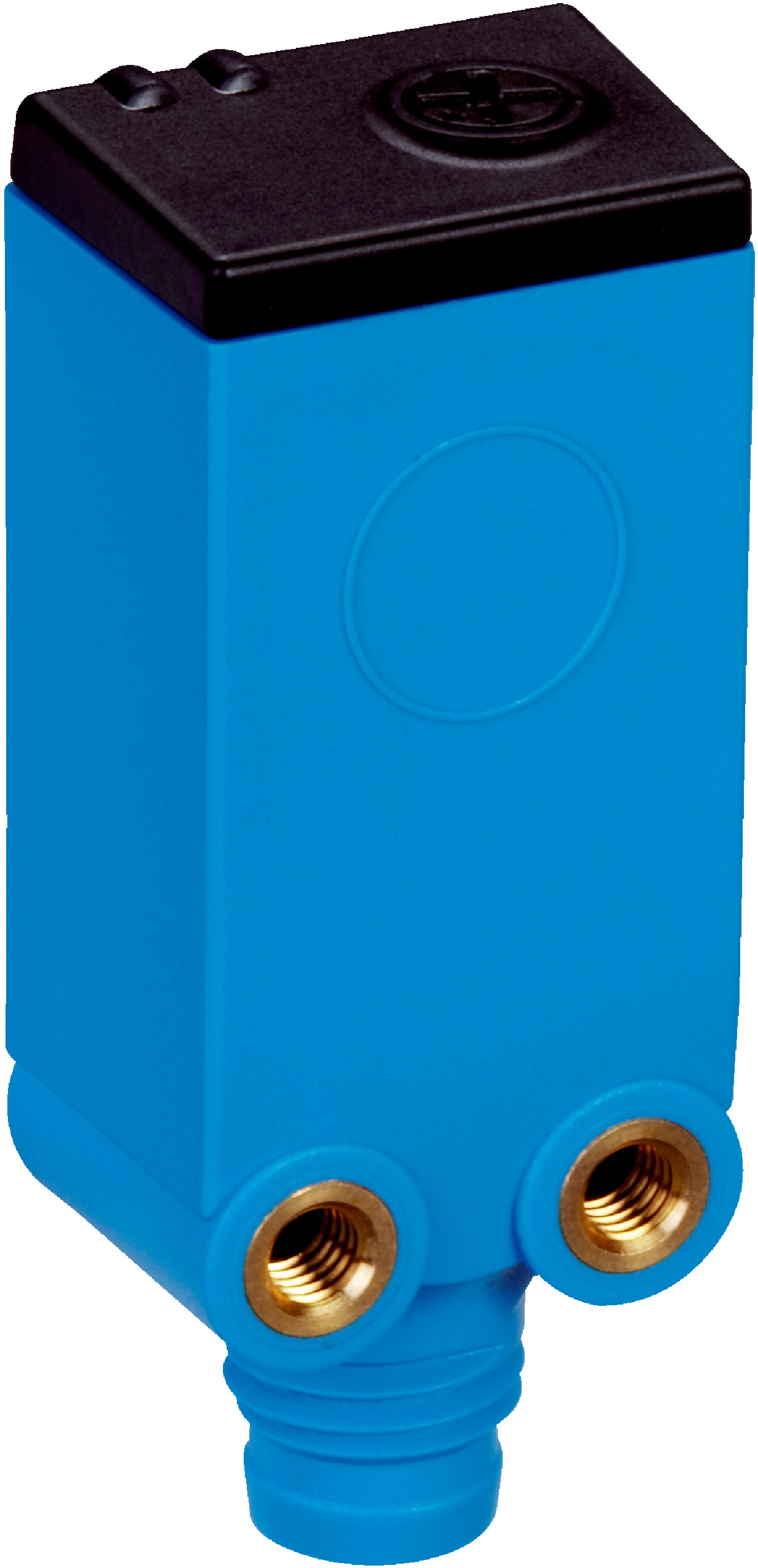

Rectangular Proximity Sensor CQ4-08ENOKT1 | IP67 Rated | NPN Normally Closed Output | 1mm to 8mm Sensing Range | by SICK
The CQ4-08ENOKT1 Rectangular Proximity Sensor is designed for industrial automation, featuring an IP67 enclosure for robust protection and a sensing range of 1 mm to 8 mm. With a high switching frequency of 100 Hz and NPN normally closed output, it ensures reliable performance in object detection and safety monitoring applications. Ideal for manufacturing process control, this sensor is built to withstand harsh environments with a wide operating temperature range from -20 °C to +75 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 100 Hz
- Sensing range Sn: 1 mm to 8 mm
- Safe sensing range Sa: 5.76 mm
- Output function: NPN normally closed
- Electrical wiring: DC 3-wire
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 20%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Ambient operating temperature: -20 °C to +75 °C
- Housing material: Plastic ABS
- Sensing face material: Plastic
- Dimensions (H x L x W): 39.5mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating for robust protection
- Sensing range from 1 mm to 8 mm with safe sensing range of 5.76 mm
- NPN normally closed switching output with 3-wire DC electrical wiring
- High switching frequency of 100 Hz for fast response
- Connector M8, 3-pin connection type
- Adjustment potentiometer with 5 turns for sensitivity tuning
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-flush and flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with 12 mA current draw supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CQ4-08ENOKT1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
