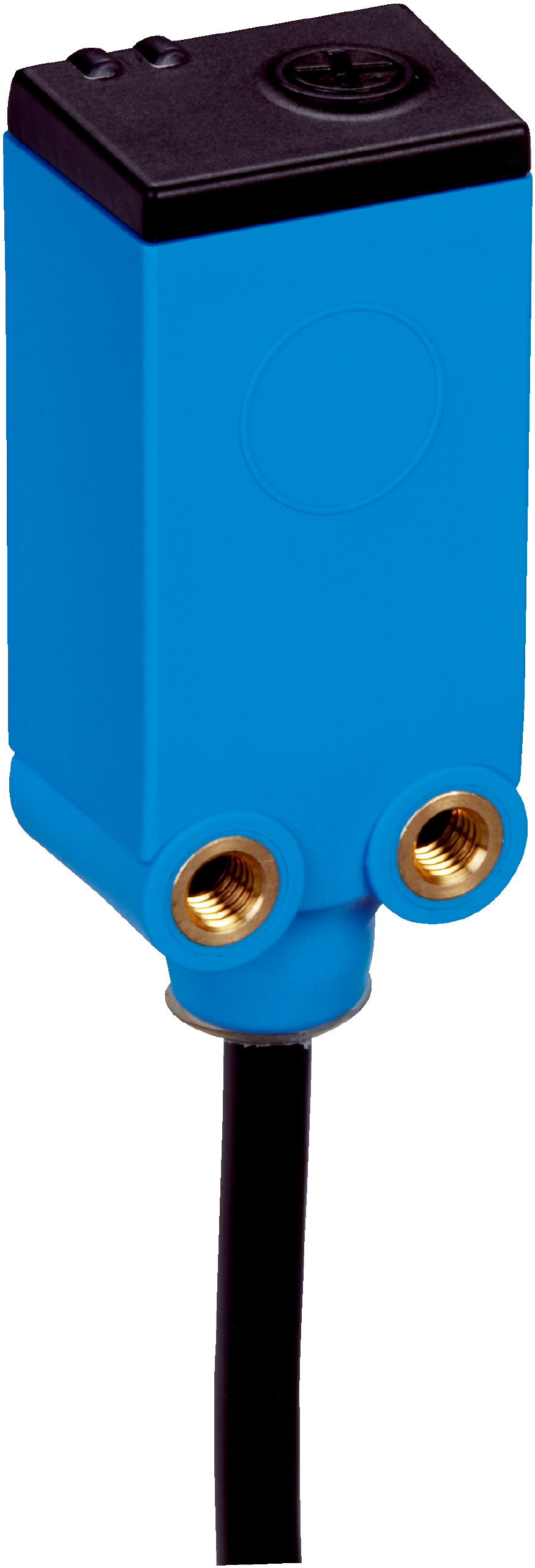

Rectangular Proximity Sensor | IP67 Rated | NPN Normally Open Output | 100 Hz Switching Frequency | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring an IP67 enclosure for robust protection and a high switching frequency of 100 Hz for fast response. Ideal for object detection in safety and control systems, this sensor offers a sensing range of 1 mm to 8 mm, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Switching frequency: 100 Hz
- Voltage drop: ≤ 2.5 V DC
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 20%
- Ambient operating temperature: -20 °C to +75 °C
- Storage temperature: -40 °C to +85 °C
- Housing material: Plastic, ABS
- Sensing face material: Plastic
- Cable length: 2 m, PVC material
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Dimensions (H x L x W): 39.5mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating for robust protection
- Sensing range from 1 mm to 8 mm with safe sensing range of 5.76 mm
- NPN normally open switching output with 3-wire DC electrical wiring
- High switching frequency of 100 Hz for fast response
- Cable connection type with 2 m PVC cable
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Adjustment potentiometer for sensitivity with 5 turns
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor calibration.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Non-flush and flush mounting sensing applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption with 12 mA current draw
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

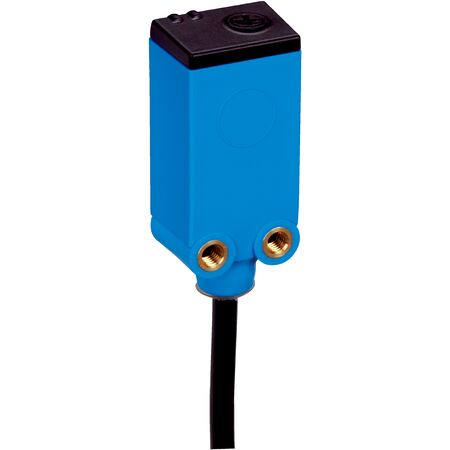

The SICK CQ4-08ENSKU1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
