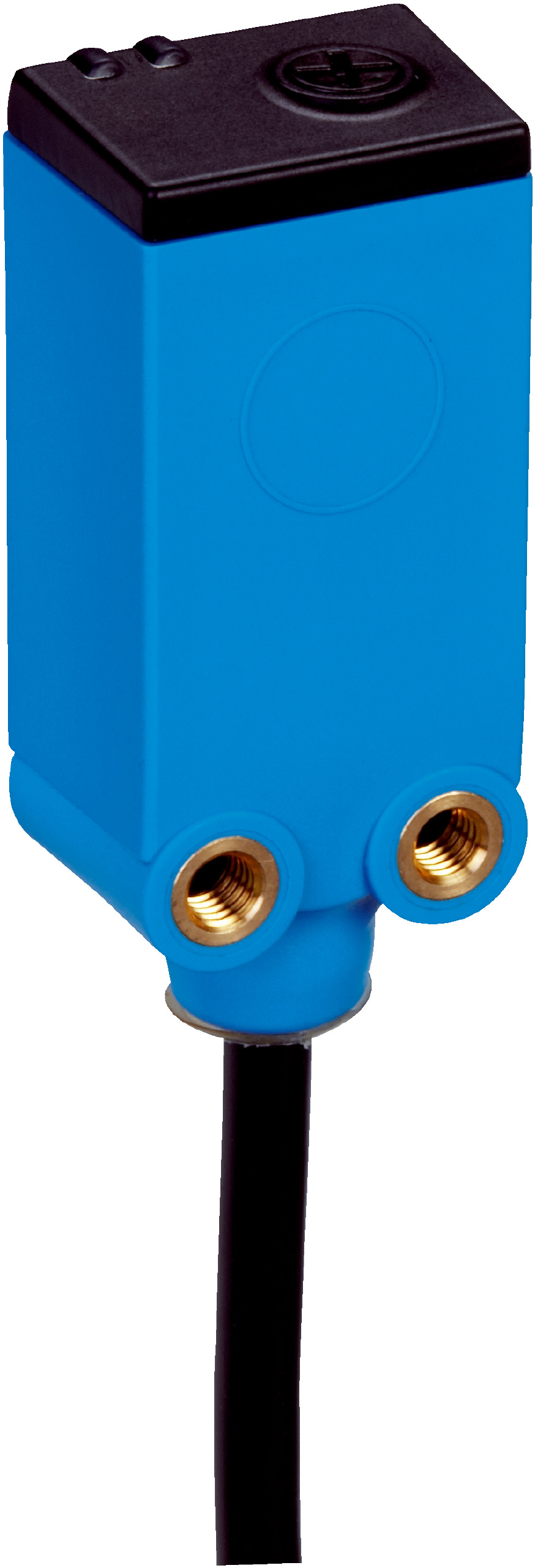

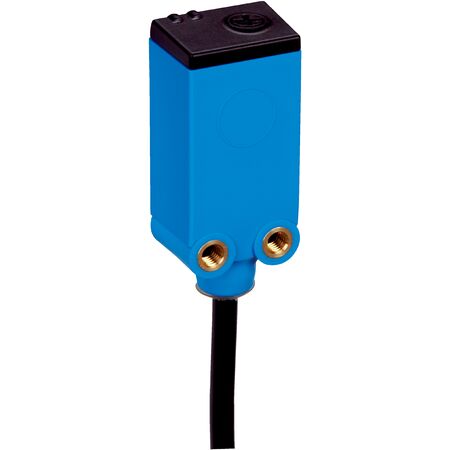

Rectangular Proximity Sensor | IP67 Rated | NPN Output | 100 Hz Switching Frequency | by SICK
The Rectangular Proximity Sensor CQ4-08ENSKP1 is designed for industrial automation, featuring an IP67 enclosure for robust protection and a high switching frequency of 100 Hz. Ideal for object detection in safety and control systems, this sensor offers a sensing range of 1 mm to 8 mm, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Switching frequency: 100 Hz
- Voltage drop: ≤ 2.5 V DC
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 20%
- Operating temperature range: -20°C to +75°C
- Storage temperature range: -40°C to +85°C
- Housing material: Plastic ABS
- Sensing face material: Plastic
- Connection type: Cable with M8, 3-pin connector, 0.3 m
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 39.5mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating for robust protection
- Sensing range from 1 mm to 8 mm with safe sensing range of 5.76 mm
- NPN switching output with normally open function
- Cable with M8, 3-pin connector, 0.3 m length
- High switching frequency of 100 Hz
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Adjustment potentiometer for sensitivity with 5 turns
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor calibration.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Non-flush and flush mounting sensing applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with 12 mA current draw enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK CQ4-08ENSKP1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
