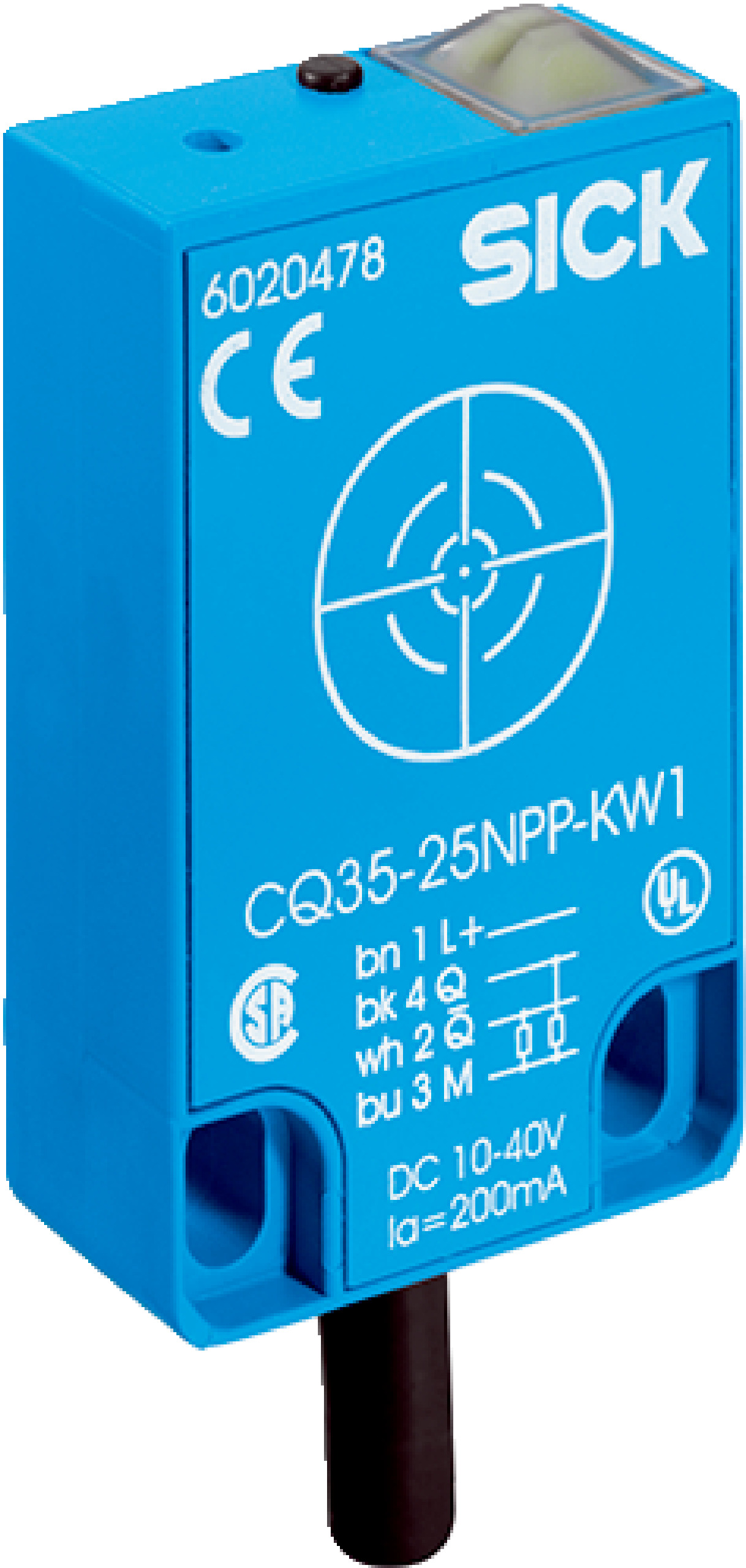

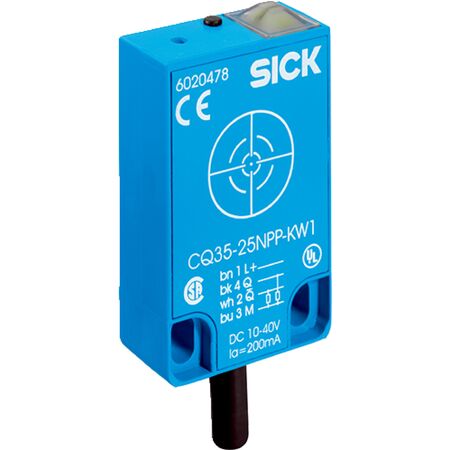

Rectangular Proximity Sensor CQ35-25NNP-KW1 | IP67 Rated | NPN Output | 4mm to 25mm Sensing Range | by SICK
The CQ35-25NNP-KW1 Rectangular Proximity Sensor is designed for industrial automation, featuring an IP67 enclosure and a sensing range from 4mm to 25mm. With NPN output and a robust design, it’s perfect for non-flush mounting applications in manufacturing and safety systems, ensuring reliable object detection even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Switching frequency: 50 Hz
- Current consumption: 10 mA
- Voltage drop: ≤ 2.5 V DC
- Time delay before availability: ≤ 100 ms
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PVC, conductor size 0.34 mm²
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Housing material: Plastic (PC)
- Sensing face material: Plastic
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 69.5mm x 15mm x 35mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating
- Sensing range from 4 mm to 25 mm with safe sensing range of 18 mm
- Non-flush installation type
- NPN switching output with complementary output function
- 4-wire DC electrical wiring with cable connection (2 m)
- Adjustment potentiometer for sensitivity (270°)
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Non-flush mounting sensing applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 rated housing reduces environmental damage and extends product life
- Low power consumption with efficient DC 4-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CQ35-25NNP-KW1 sensor is available for immediate purchase, ideal for industrial automation and safety sensing applications.
