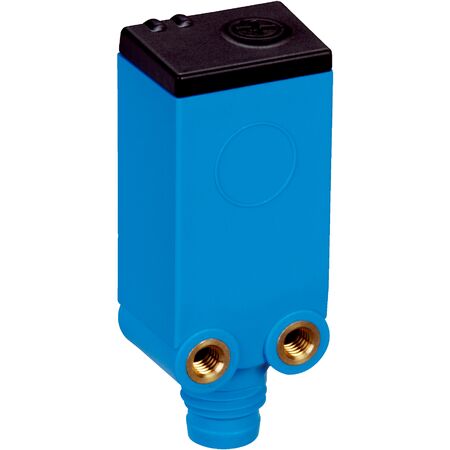

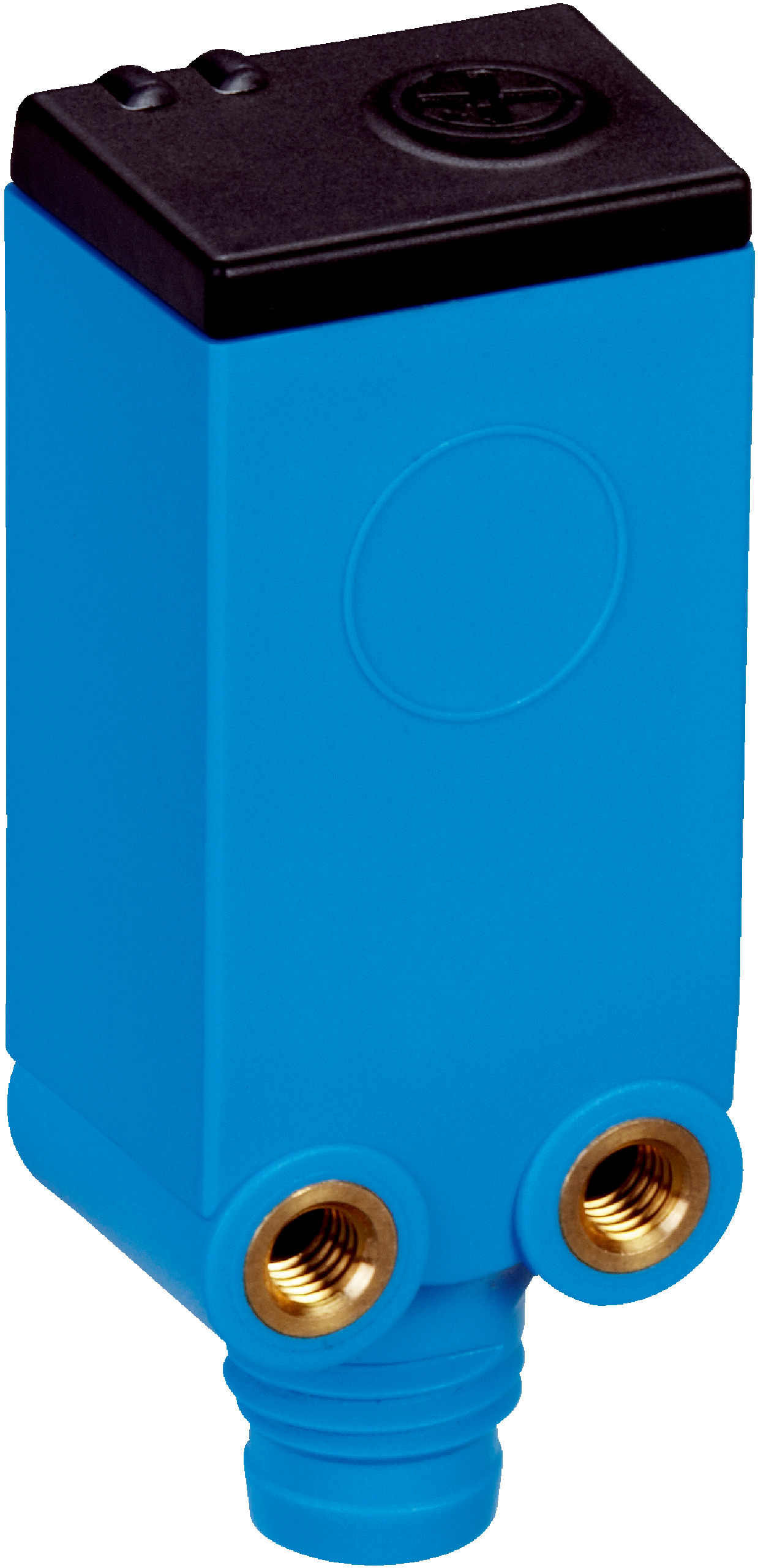

Rectangular Proximity Sensor | IP67 Rated | PNP Normally Closed | 100 Hz Switching Frequency | by SICK
The Rectangular Proximity Sensor CQ4-08EPOKT1 is designed for industrial automation, featuring an IP67 enclosure for robust protection and a sensing range of 1 mm to 8 mm. With a high switching frequency of 100 Hz and PNP normally closed output, it's perfect for manufacturing process control and safety monitoring in machinery. Built to withstand harsh environments, this sensor ensures reliable performance in both non-flush and flush installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Switching output: PNP, normally closed (NC)
- Switching frequency: 100 Hz
- Voltage drop: ≤ 2.5 V DC
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Time delay before availability: ≤ 200 ms
- EMC compliance: According to EN 60947-5-2
- Continuous current Ia: ≤ 150 mA
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Operating temperature: -20°C to +75°C
- Storage temperature: -40°C to +85°C
- Housing material: Plastic, ABS
- Sensing face material: Plastic
- Connection type: Connector M8, 3-pin
- Adjustment: Sensitivity potentiometer (5 turns)
- Dimensions (H x L x W): 39.5mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating for robust protection
- Sensing range from 1 mm to 8 mm with safe sensing range of 5.76 mm
- High switching frequency of 100 Hz with PNP normally closed output
- Connector M8, 3-pin connection type for easy integration
- Shock and vibration resistant up to 30 g and 10-55 Hz
- Wide operating temperature range from -20°C to +75°C
- Short-circuit and power-up pulse protection included
- Adjustment potentiometer with 5 turns for sensitivity tuning
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and sensor adjustment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-flush and flush installation environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 12 mA supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CQ4-08EPOKT1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
