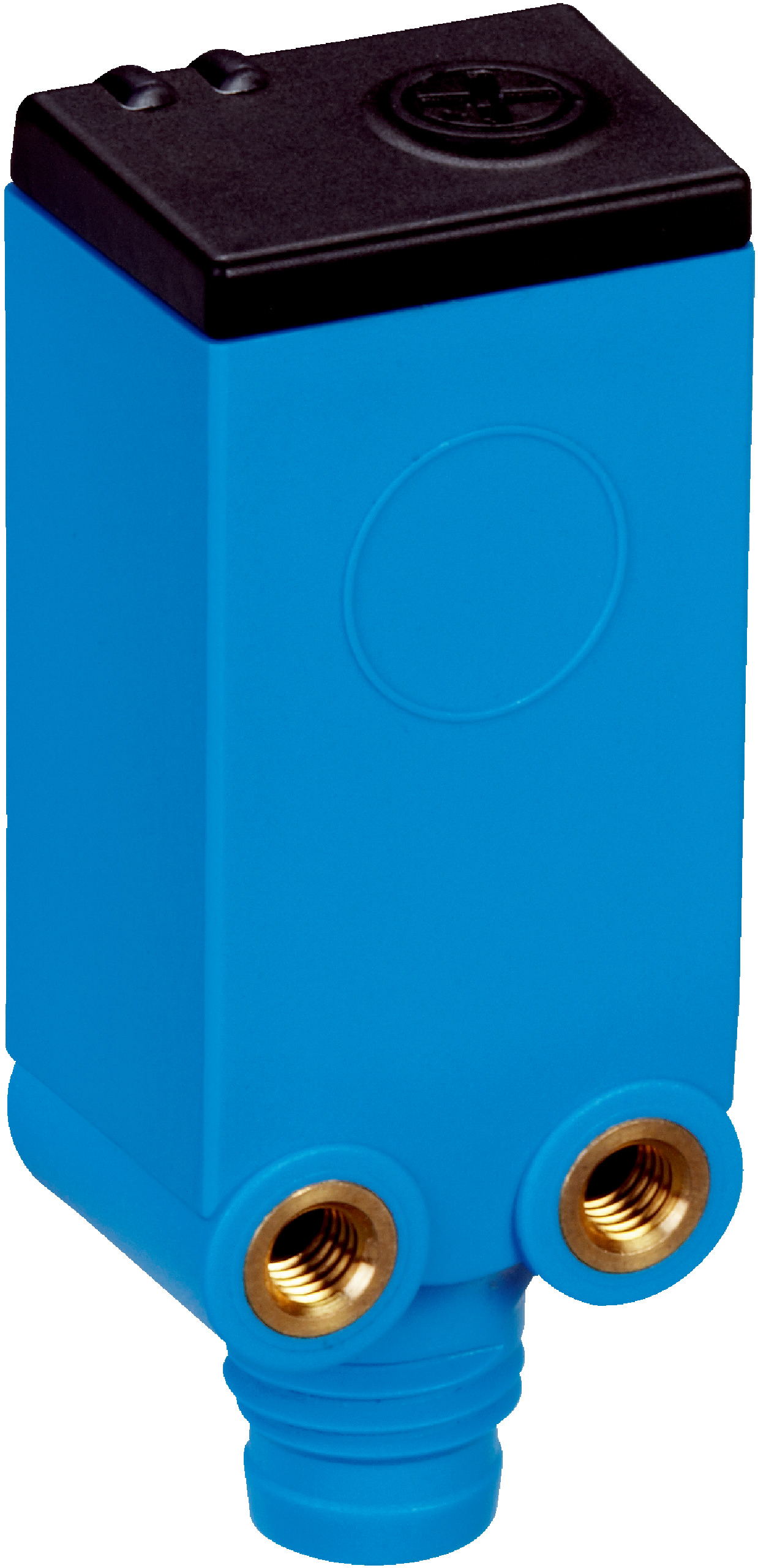

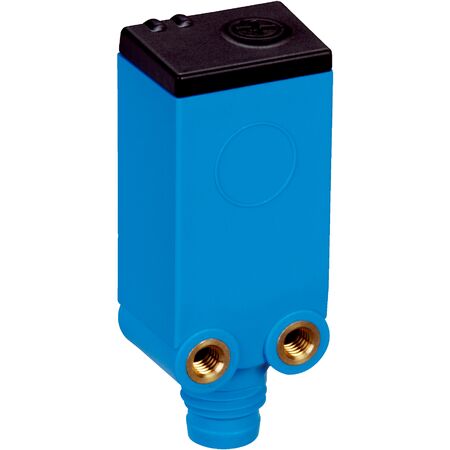

Rectangular Proximity Sensor CQ4-08EPSKT1 | IP67 Rated | PNP Normally Open Output | 100 Hz Switching Frequency | by SICK
The CQ4-08EPSKT1 Rectangular Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 100 Hz and an IP67 rated enclosure for dust and water protection. With a sensing range of 1 mm to 8 mm and robust shock and vibration resistance, it's perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 100 Hz
- Output function: PNP, Normally Open (NO)
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 20%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Ambient operating temperature: -20 °C to +75 °C
- Storage temperature: -40 °C to +85 °C
- Housing material: Plastic, ABS
- Sensing face material: Plastic
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Dimensions (H x L x W): 39.5mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with compact dimensions of 16 mm x 39.5 mm x 12 mm
- Sensing range from 1 mm to 8 mm with safe sensing range of 5.76 mm
- High switching frequency of 100 Hz with PNP normally open output
- IP67 rated enclosure for dust and water protection
- Connector M8, 3-pin connection type
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +75 °C
- Adjustment potentiometer for sensitivity with 5 turns
- Complies with EMC standards EN 60947-5-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor calibration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-flush and flush mounting sensing applications
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CQ4-08EPSKT1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
