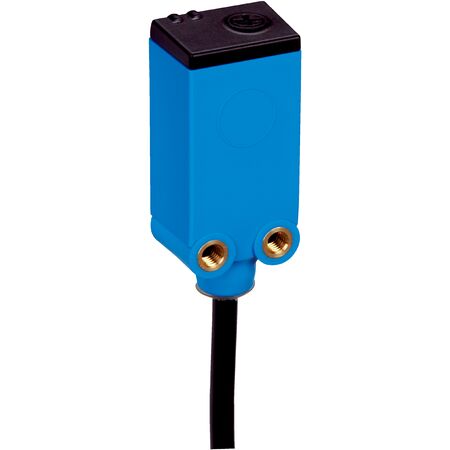

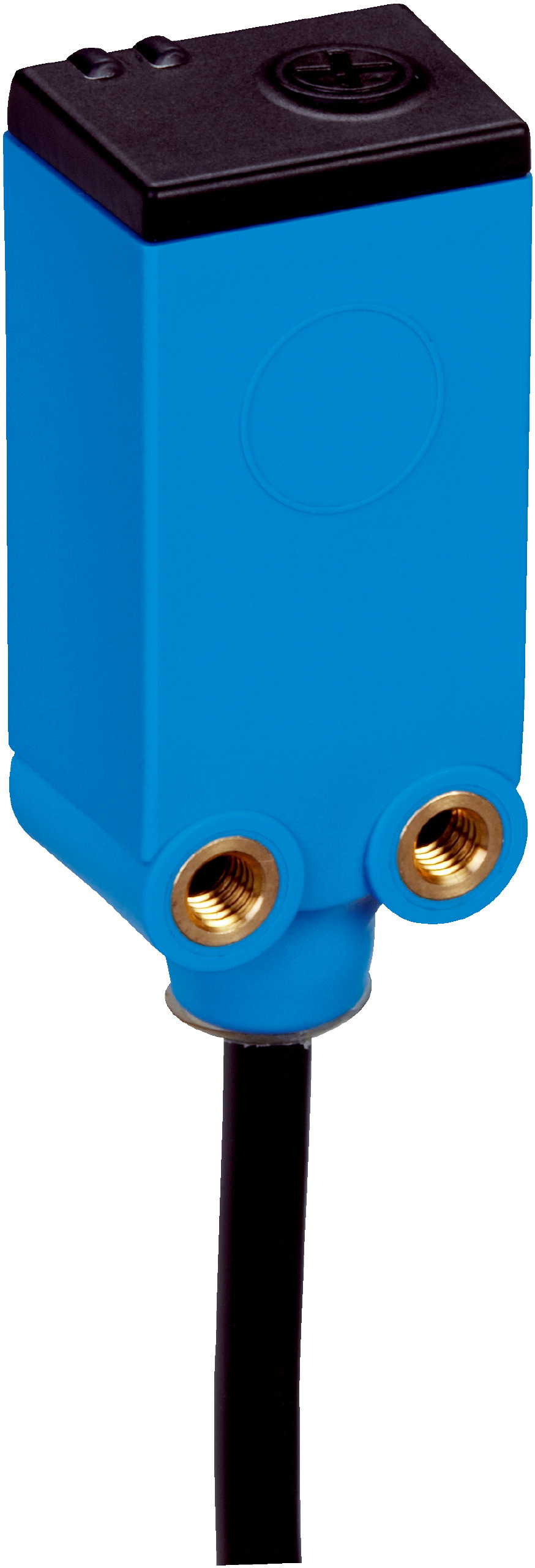

Rectangular Proximity Sensor | IP67 Rated | PNP Normally Open Output | 1mm to 8mm Sensing Range | by SICK
The Rectangular Proximity Sensor CQ4-08EPSKP1 is designed for industrial automation, featuring an IP67 enclosure and a sensing range of 1mm to 8mm. With a PNP normally open output and a switching frequency of 100 Hz, this sensor is perfect for object detection in safety and control systems. Built to withstand harsh environments, it operates effectively within -20 °C to +75 °C, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 100 Hz
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Time delay before availability: ≤ 200 ms
- Cable material: PVC
- Housing material: Plastic, ABS
- Sensing face material: Plastic
- EMC compliance: EN 60947-5-2
- Short-circuit and power-up pulse protection included
- Operating temperature: -20 °C to +75 °C
- Storage temperature: -40 °C to +85 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Dimensions (H x L x W): 39.5mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating
- Sensing range from 1 mm to 8 mm
- Switching frequency of 100 Hz with PNP NO output
- Cable with M8, 3-pin connector, 0.3 m length
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure proper sensor function and safety.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Non-flush and flush mounting sensing applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CQ4-08EPSKP1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection.
