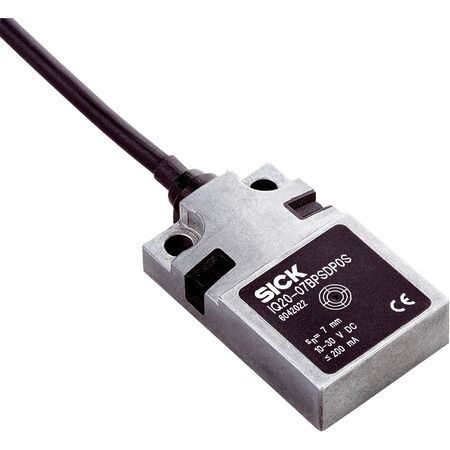

Rectangular Proximity Sensor | IP67 Rated | PNP Output | 150 Hz Switching Frequency | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring an IP67 rating for dust and water protection, and a high switching frequency of 150 Hz. With a sensing range of 7 mm and a compact flush mount design, it's perfect for object detection and safety monitoring in manufacturing processes. Built for reliability, this sensor ensures long-lasting performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: < 2.5 V
- Time delay before availability: ≤ 20 ms
- Hysteresis: 1% to 15%
- Reproducibility: ± 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR
- Switching output: PNP, normally open (NO)
- Switching frequency: 150 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Zinc diecast (GD Zn)
- Sensing face material: Plastic (PA12)
- EMC compliance: According to EN 60947-5-2
- Short-circuit protection: Yes
- Connection type: Cable, 3-wire, 2 m
- Dimensions (H x L x W): 32mm x 8mm x 20mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with compact dimensions of 20 mm x 32 mm x 8 mm
- Sensing range of 7 mm with safe sensing range of 5.67 mm
- Flush installation type for seamless integration
- High switching frequency of 150 Hz
- PNP switching output with normally open (NO) function
- Cable connection type with 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Flush installation sensing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable zinc diecast housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Long mission time of 20 years reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IQ20-07BPSDU2S proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
