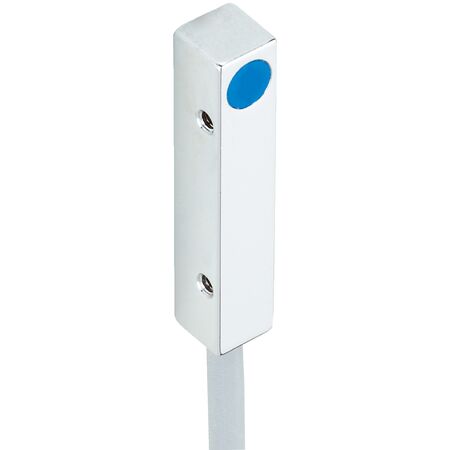

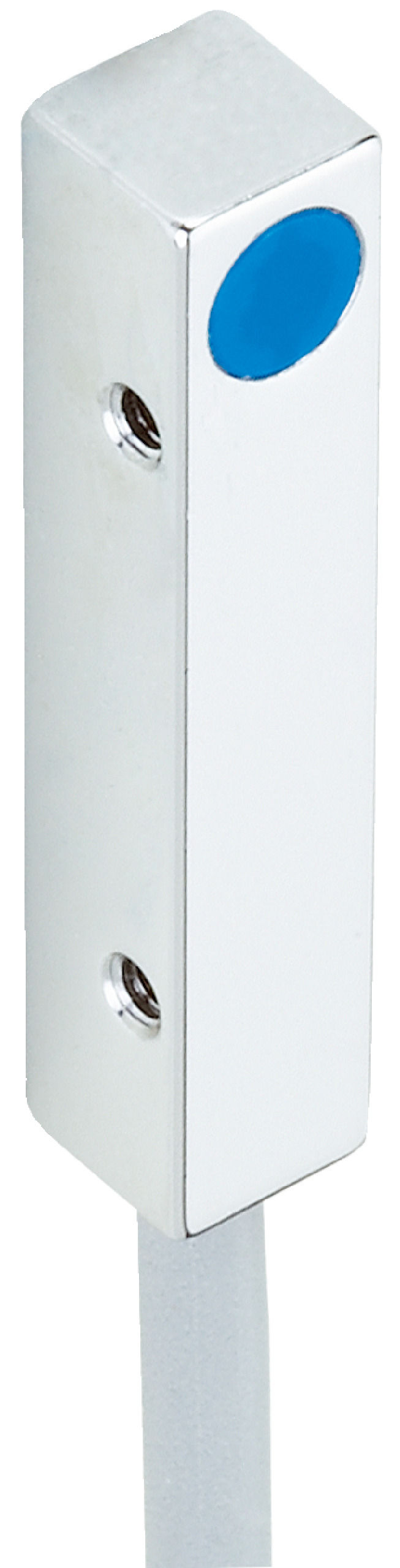

Rectangular Proximity Sensor | IP67 Rated | PNP Output | 5,000 Hz Switching Frequency | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring a robust brass housing with chromium plating and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 5,000 Hz and PNP output, it ensures precise object detection and position sensing in manufacturing lines, making it ideal for safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 0.8 mm
- Safe sensing range Sa: 0.648 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1.5%
- Temperature drift of Sr: ± 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR
- Conductor size: 0.06 mm²
- EMC compliant according to EN 60947-5-2
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, POM
- Enclosure rating: IP67
- Dimensions (H x L x W): 25mm x 5mm x 5mm
- Weight: 0.1 kg
Key Features
- Rectangular brass housing with chromium plating for durability
- Flush installation type with IP67 rated enclosure for dust and water protection
- High switching frequency of 5,000 Hz for fast response
- PNP switching output with NC function
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M8 3-pin connector, 0.2 m length
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ05-0B8PO-ZR1 proximity sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
