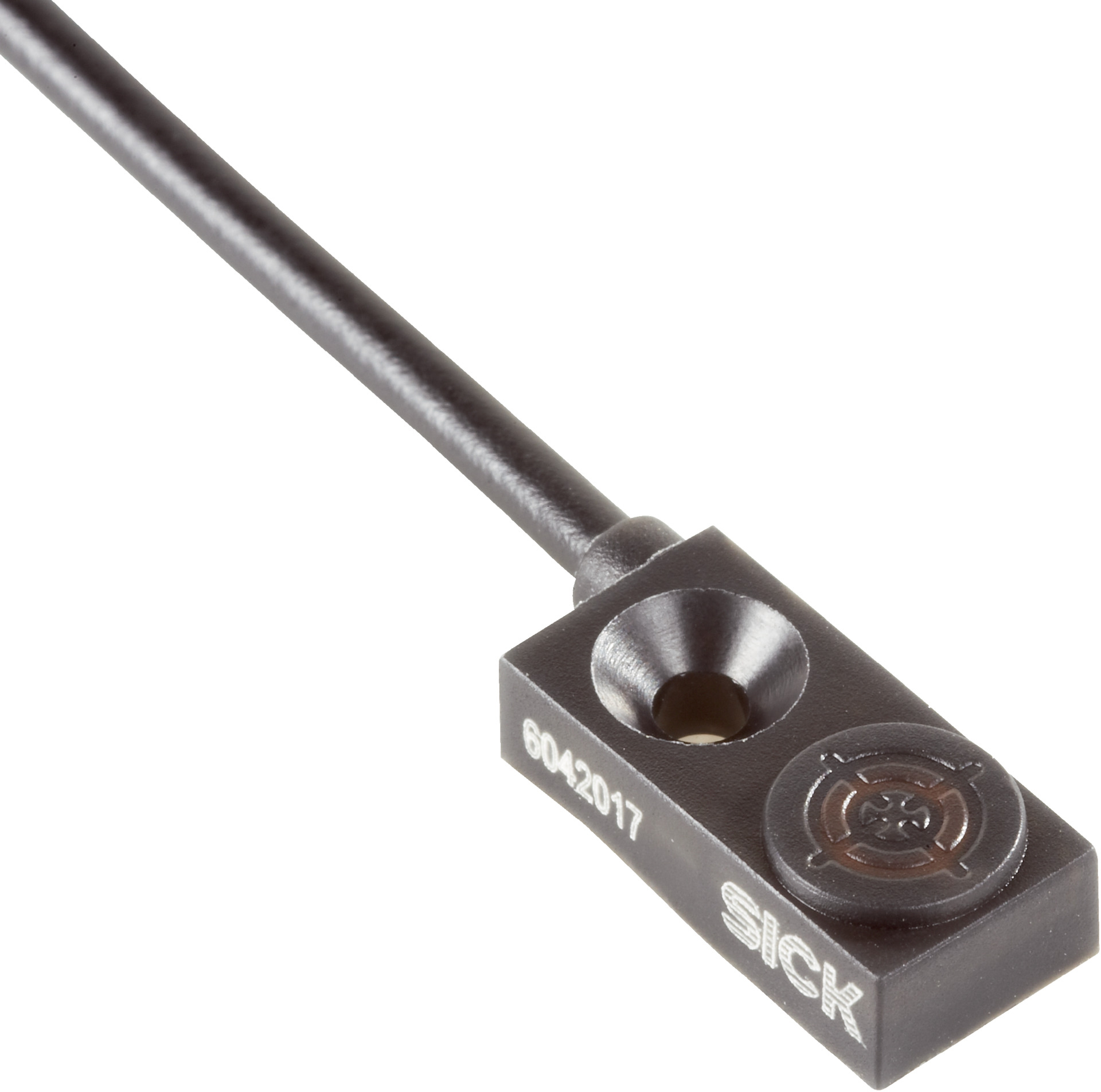

Rectangular Proximity Sensor | IP67 Rated | PNP Output | 1.5mm Sensing Range | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring a compact size of 8mm x 16mm x 4mm and an IP67 rated enclosure for dust and water protection. With a sensing range of 1.5mm and a high switching frequency of 600 Hz, it's perfect for machine safety and control systems, ensuring reliable object detection in various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: < 1.5 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ± 1%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Cable: PVC, 3-wire, 2 m length, conductor size 0.09 mm², diameter Ø 2.5 mm
- Housing material: Plastic PA6
- Sensing face material: Plastic PA6
- Tightening torque max: ≤ 0.06 Nm
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 16mm x 4mm x 8mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with compact dimensions of 8 mm x 16 mm x 4 mm
- Flush installation type for seamless integration
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 600 Hz
- PNP switching output with normally open (NO) function
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption with DC 3-wire electrical wiring
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ04-1B5PSKW2S proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection.
