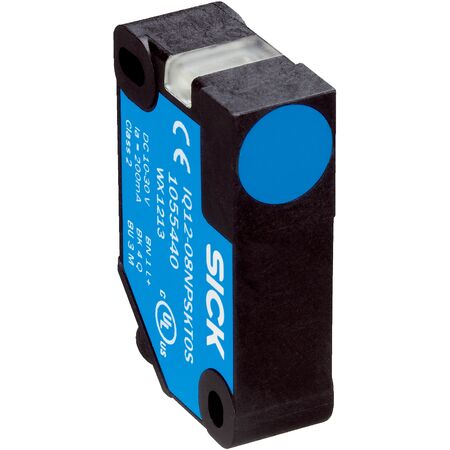

Rectangular Proximity Sensor | IP68 Rated | 4mm Sensing Range | 2000Hz Switching Frequency | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring a 4mm sensing range and a high switching frequency of 2,000 Hz. With an IP68 rating for dust and water resistance, this sensor is perfect for machine safety and control systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 2,000 Hz
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Output function: Normally Open (NO), PNP switching output
- Electrical wiring: DC 3-wire
- Cable length: 2 m, PUR material, 0.25 mm² conductor size
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +75 °C
- Housing and sensing face material: Plastic, VISTAL®
- Tightening torque max: ≤ 1 Nm
- Enclosure rating: IP68
- Dimensions (H x L x W): 40mm x 26mm x 12mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 2,000 Hz
- PNP switching output with normally open function
- Cable connection type with 3-wire, 2 m length
- Enclosure rating IP68 for dust and water resistance
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ12-04BPSKU2S proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
