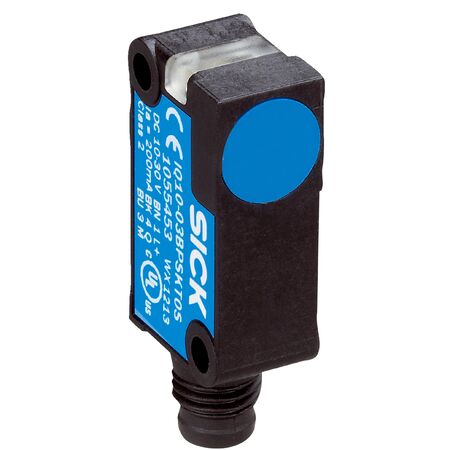

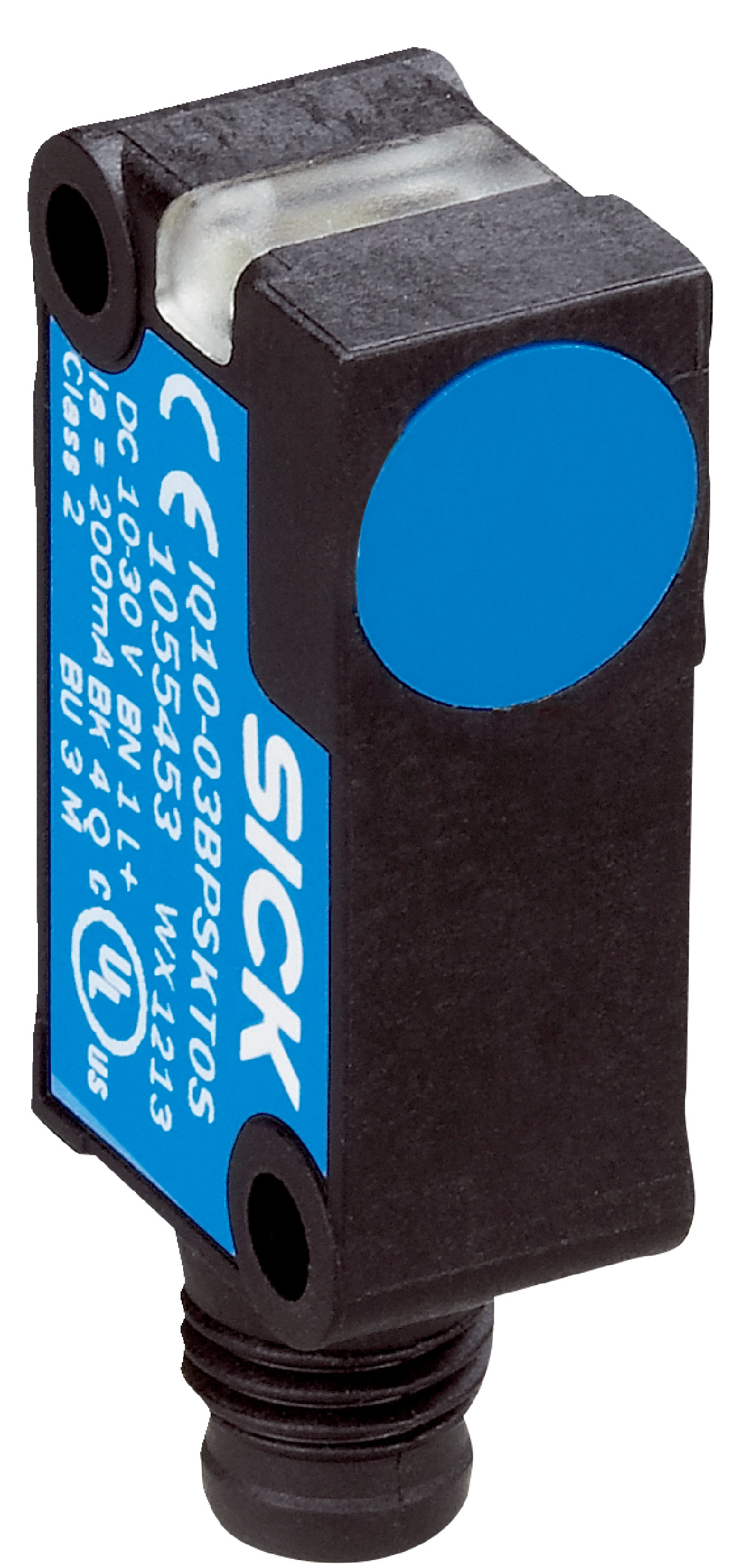

Rectangular Proximity Sensor | IP68 Rated | 6mm Sensing Range | 2000 Hz Switching Frequency | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring a 6mm sensing range and an IP68 rated enclosure for reliable performance in harsh environments. With a high switching frequency of 2000 Hz and a PNP normally open output, this sensor is perfect for non-contact switching and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rectangular Proximity Sensor | IP68 Rated | 6mm Sensing Range | 2000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1055461
Alternatively Known As: Rectangular Proximity Sensor, Non-flush Proximity Sensor, PNP Proximity Switch, M8 Connector Proximity Sensor
Technical Specifications
- Housing: Rectangular plastic VISTAL®
- Dimensions (W x H x D): 10 mm x 28 mm x 16 mm
- Sensing range Sn: 6 mm
- Safe sensing range Sa: 4.86 mm
- Installation type: Non-flush
- Switching frequency: 2,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 3 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Tightening torque max: ≤ 1 Nm
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with compact dimensions (10 mm x 28 mm x 16 mm)
- Non-flush installation type for versatile mounting
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- High switching frequency of 2,000 Hz for fast response
- PNP switching output with normally open function
- Connector M8, 3-pin connection type
- IP68 rated enclosure for dust and water resistance
- Wide supply voltage range from 10 V DC to 30 V DC
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Housing and sensing face made of durable VISTAL® plastic
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Harsh environment sensing with IP68 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ10-06NPSKT0S proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
