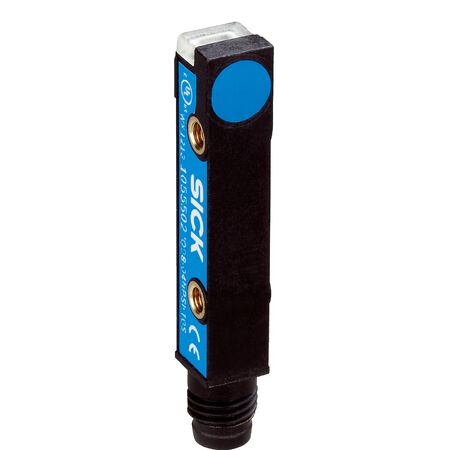

Rectangular Proximity Sensor | NPN Normally Open | IP67 & IP68 Rated | 3mm Sensing Range | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring a 3mm sensing range and a high switching frequency of 2,000 Hz. With an IP67 and IP68 rated enclosure, it ensures reliable performance in harsh environments. Ideal for manufacturing process control and safety systems, this sensor offers robust design and low power consumption, making it a perfect choice for object detection in robotics and assembly lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: NPN, normally open (NO)
- Switching frequency: 2,000 Hz
- Sensing range (Sn): 3 mm
- Safe sensing range (Sa): 2.43 mm
- Electrical wiring: DC 3-wire
- Cable: 3-wire, 2 m PVC cable, diameter 2.9 mm
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10 %
- No load current: 10 mA
- Continuous current Ia: ≤ 200 mA
- Hysteresis: 5 % to 15 %
- Reproducibility: ≤ 2 %
- Temperature drift: ± 10 %
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Housing material: Plastic, VISTAL®
- Enclosure rating: IP67 and IP68
- Short-circuit and power-up pulse protection included
- Operating temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 40mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 3 mm with triple sensing range characteristic
- High switching frequency of 2,000 Hz
- NPN normally open switching output
- IP67 and IP68 rated enclosure for dust and water resistance
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and positioning systems
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67/IP68 rated housing reduces replacement frequency and electronic waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes downtime and resource waste in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ08-03BNSKW2S proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
