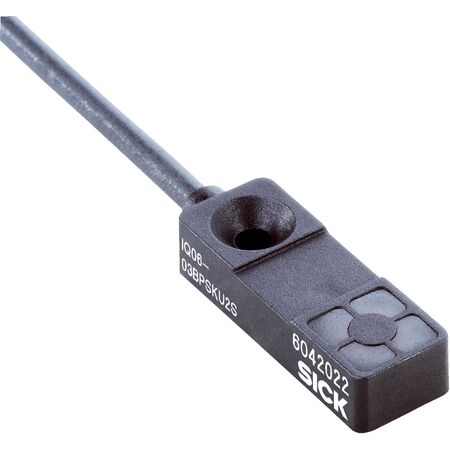

Rectangular Proximity Sensor | NPN Normally Closed | 3mm Sensing Range | IP67 Rated | by SICK
The Rectangular Proximity Sensor is designed for precise object detection in industrial automation, featuring a 3mm sensing range and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing lines and safety control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: NPN, normally closed (NC)
- Switching frequency: 1,000 Hz
- Sensing range (Sn): 3 mm
- Safe sensing range (Sa): 2.43 mm
- Electrical wiring: DC 3-wire
- Cable: 2 m PUR cable, 3-wire, 0.14 mm² conductor size, 3 mm diameter
- Voltage drop: < 1.5 V
- Ripple: ≤ 10%
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ± 1%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 100 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Housing material: Plastic PA6
- Sensing face material: Plastic PA6
- Tightening torque max: 0.6 Nm
- Enclosure rating: IP67
- Dimensions (H x L x W): 30mm x 6mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- High switching frequency of 1,000 Hz
- NPN normally closed switching output
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Wide operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with flush mount sensor installation and electrical wiring standards to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IQ06-03BNOKU2S sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
