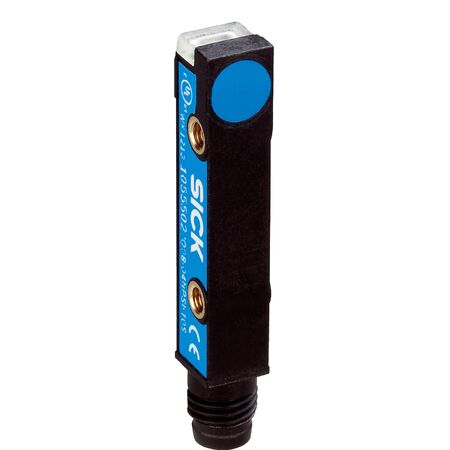

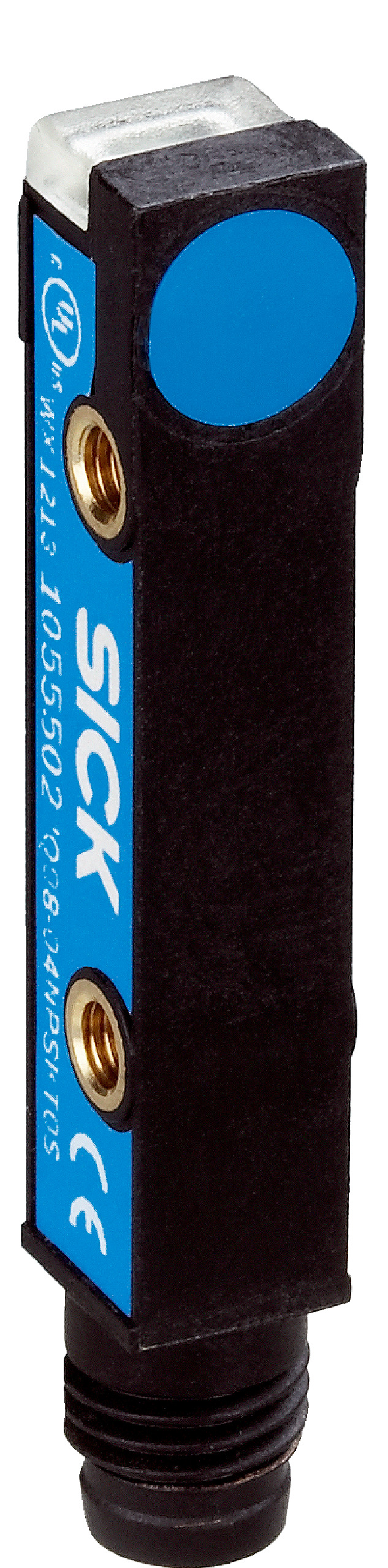

Rectangular Proximity Sensor | PNP Output | IP67 & IP68 Rated | 4mm Sensing Range | by SICK
The Rectangular Proximity Sensor is designed for industrial automation, featuring a PNP output and a sensing range of 4 mm. With an IP67 and IP68 rated enclosure, it ensures reliable performance in harsh environments. Ideal for object detection and safety systems, this sensor operates at a high switching frequency of 2,000 Hz, making it perfect for fast response applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 2,000 Hz
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67 and IP68
- Cable: PUR material, diameter 2.9 mm, length 0.4 m
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10 %
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5 % to 15 %
- Reproducibility: ≤ 2 %
- Temperature drift: ± 10 %
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Housing and sensing face material: Plastic, VISTAL®
- Tightening torque max: ≤ 1.5 Nm
- Dimensions (H x L x W): 40mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with compact dimensions 8 mm x 40 mm x 8 mm
- Non-flush installation type for versatile mounting
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 2,000 Hz for fast response
- PNP switching output with normally open function
- Cable with M8, 3-pin connector and knurled nut, 0.4 m length
- IP67 and IP68 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g and 10-55 Hz
- Wide ambient operating temperature from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and positioning systems
- Non-contact sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67/IP68 rated housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IQ08-04NPSKRDSS14 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
