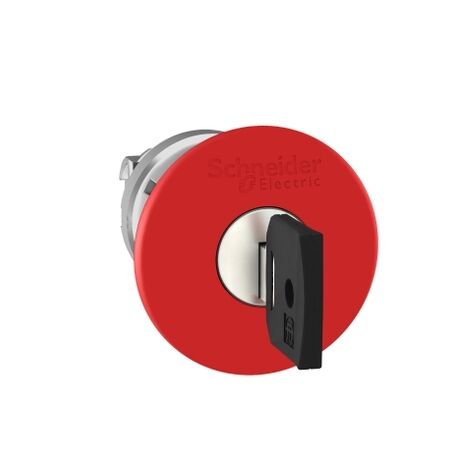

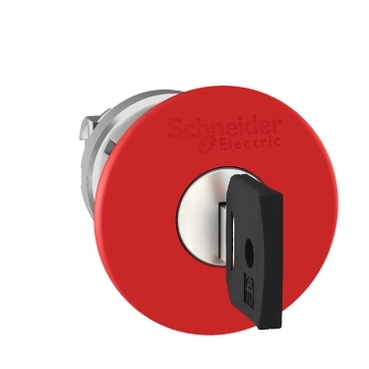

Red Emergency Stop Trigger ISO | Panel Mount | IP65 Rated | Durable Plastic & Metal | @Pack of 1 | by Clipsal
The Red Emergency Stop Trigger ISO is designed for quick and reliable emergency shutdowns in industrial settings. Featuring a highly visible red mushroom head actuator and an ISO-compliant design, it ensures universal recognition and easy operation in emergencies. Built with robust materials, this stop switch is perfect for manufacturing plants, conveyor systems, and electrical control panels, enhancing workplace safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Red Emergency Stop Trigger ISO | Panel Mount | IP65 Rated | Durable Plastic & Metal | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB4BS94412
Alternatively Known As: Emergency Stop Button, E-Stop Trigger, Emergency Stop Actuator, Red Stop Switch, ISO Emergency Stop
Technical Specifications
- Actuator type: Red mushroom head
- Mounting: Panel mount
- Material: Durable plastic and metal components
- Standard: ISO-compliant design
- Contact type: Normally closed (NC)
- Ingress protection: IP65 (front face)
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.12 kg
Key Features
- Highly visible red actuator for emergency stop
- ISO-compliant design for universal recognition
- Robust construction for industrial environments
- Easy to operate in emergency situations
- Compatible with standard emergency stop stations
Professional Installation Requirements
- Installation must be performed by a qualified electrician or technician to ensure compliance with safety standards and correct integration into emergency stop circuits.
Applications
- Industrial machinery emergency stop systems
- Manufacturing plants
- Conveyor systems
- Automated production lines
- Electrical control panels
Standards & Compliance
- Complies with AS/NZS 60947.5.5 for emergency stop devices
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards from machinery malfunctions.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Red Emergency Stop Trigger ISO SCHZB4BS94412 is available for immediate purchase. Ideal for industrial and commercial safety applications requiring reliable emergency stop functionality.
