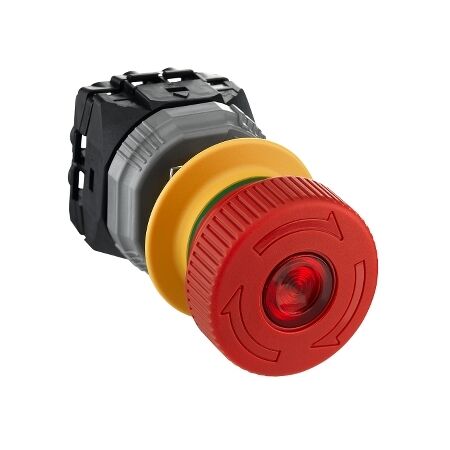

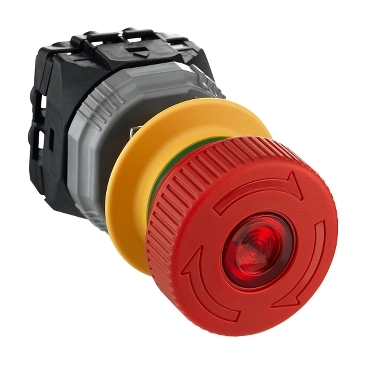

Red Illuminated Emergency Stop Button | 40mm Diameter | 2NC 1NO Monitored | IP66 Rated | @Pack of 1 | by Clipsal
The Red Illuminated Emergency Stop Button features a 40mm diameter actuator and a high-visibility red mushroom head, making it ideal for industrial machinery emergency stop control. With a monitored contact configuration of 2NC and 1NO, this durable plastic switch ensures safety in manufacturing and automation systems. Designed for easy panel mounting, it operates with 24V DC LED illumination and is built to withstand harsh environments with an IP66 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Red Illuminated Emergency Stop Button | 40mm Diameter | 2NC 1NO Monitored | IP66 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXB5AS86449B4
Alternatively Known As: Emergency Stop Button, E-Stop Switch, Red Mushroom Emergency Stop, Illuminated E-Stop, Clipsal Emergency Stop, SCHXB5AS86449B4
Technical Specifications
- Actuator type: Illuminated red mushroom head
- Actuator diameter: 40mm
- Panel cutout: 22mm
- Contact configuration: 2NC + 1NO monitored
- Illumination: 24V DC LED
- Material: Plastic
- Trigger latching, turn to release
- Degree of protection: IP66 (front face)
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 60mm x 40mm x 40mm
- Weight: 0.12 kg
Key Features
- Illuminated red mushroom head for high visibility
- 40mm diameter actuator for easy operation
- Trigger latching mechanism with turn-to-release function
- 2 Normally Closed (NC) and 1 Normally Open (NO) contacts with monitoring circuit
- Plastic construction for durability and electrical insulation
- Suitable for 22mm panel mounting
- 24V DC LED illumination
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with safety standards and correct wiring.
Applications
- Industrial machinery emergency stop control
- Manufacturing and automation safety systems
- Conveyor and process line emergency shutdown
- Electrical panels and control stations
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear safety.
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards.
- Durable design minimizes replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Red Illuminated Emergency Stop 40mm 2NC 1NO Monitored (SCHXB5AS86449B4) is available for immediate purchase. Ideal for industrial safety and emergency stop applications.
