Making Trade Life Easy!

Home/Electrical/Lighting/Lighting Accessories/Red LED Indicator Light 230VAC | Compact Design | IP20 Rated | SVN122M by Hager

Trade Discount 22%

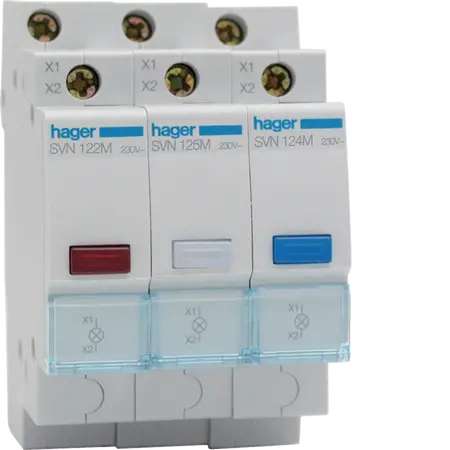

Red LED Indicator Light 230VAC | Compact Design | IP20 Rated | SVN122M by Hager

BRAND: :hager

SKU: SVN122M

$30.50 List price: $38.90

+ −

30 Days Return Delivery Options

Red LED indicator light with 230VAC operation and compact design—ideal for residential, commercial, and industrial systems. Built for secure installation with screw terminals and IP20 protection.

Description
Attachments

Product Name/Title: Red LED Indicator light 230VAC

Brand: Hager

SKU: SVN122M

Alternatively Known As: 230VAC Red LED Indicator

Technical Specifications

Capacity: Number of modules: 1
Frequency: 50 - 60 Hz
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 4000 V
Type voltage supply: AC
Rated operational voltage Ue: 230 - 230 V
Operating temperature: -20 - 50 °C
Storage/transport temperature: -40 - 80 °C
Type of connection: Screw terminal
Cross-section flexible conductor: 0.75 - 6 mm²
Cross-section rigid conductor: 0.75 - 10 mm²
Type of lamp socket: Fix
Total power loss under IN: 0.80 W
Height: 83 mm
Width: 17.50 mm
Depth: 62 mm
Type of lamp: LED
Colour: Red
Ingress Protection (IP) class: IP20
Dimensions (H x L x W): 83mm x 62mm x 17.50mm
Weight: 0.02 kg

Key Features

Robust and efficient LED indicator for 230VAC systems
Compact design with a height of 83 mm and width of 17.5 mm
Screw terminal connections for secure installation
Ingress Protection rating of IP20 for protection against solid objects

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for safety and reliability.

Applications

Residential: Home electrical panels and systems
Commercial: Building management systems and control panels
Industrial: Monitoring and indication systems in factories

Standards & Compliance

Complies with relevant Australian safety and performance standards.

Environmental Benefits

Energy-efficient LED reduces power consumption
Long lamp life to reduce waste and maintenance

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Red LED Indicator light SVN122M is available now for immediate purchase, ideal for electrical panels and control systems in various settings.

SVN122M (SVN122M, 172 Kb) [Download]

reach-declaration-SVN122M.pdf (reach-declaration-SVN122M.pdf, 33 Kb) [Download]

RoHS-declaration-SVN122M.pdf (RoHS-declaration-SVN122M.pdf, 33 Kb) [Download]

(DECLARATION_23_1158_09_23.pdf, 575 Kb) [Download]
