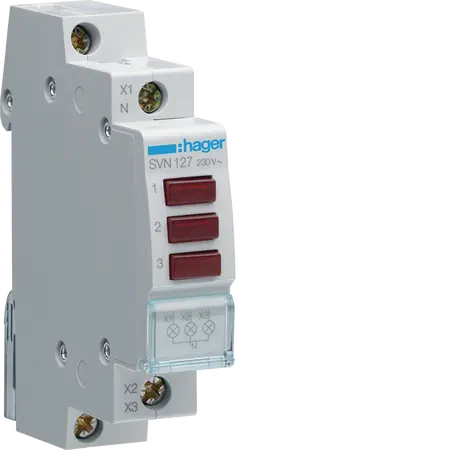

Red LED Triple Indicator Light 230VAC | Compact Module | Energy Efficient by Hager

BRAND: :hager

SKU: SVN127M

$40.20 List price: $51.40

+ −

30 Days Return Delivery Options

Red LED triple indicator light with 230VAC operation and compact module design—ideal for industrial control panels and automation equipment. Built for reliable status feedback, with energy-efficient performance and low power loss.

Description
Attachments

Product Name/Title: Red LED Triple indicator light 230VAC

Brand: Hager

SKU: SVN127M

Alternatively Known As: Red Triple Indicator Light

Technical Specifications

Capacity: 1 module
Frequency: 50 - 60 Hz
Rated insulation voltage Ui: 400 V
Rated impulse withstand voltage Uimp: 4000 V
Type voltage supply: AC
Rated operational voltage Ue: 230 - 230 V
Operating temperature: -20 - 50 °C
Storage/transport temperature: -40 - 80 °C
Type of connection: Screw terminal
Cross-section flexible conductor: 0.75 - 6 mm²
Cross-section rigid conductor: 0.75 - 10 mm²
Type of lamp socket: Fix
Total power loss under IN: 0.80 W
Height: 83 mm
Width: 17.50 mm
Depth: 62 mm
Type of lamp: LED
Colour: Red
Ingress Protection (IP) class: IP20
Dimensions (H x L x W): 83mm x 62mm x 17.5mm
Weight: 0.1 kg

Key Features

Triple LED indicator for reliable status feedback
Operates on standard 230VAC
Compact module design
Energy efficient with low power loss

Professional Installation Requirements

Installation by a qualified electrician is recommended for compliance with safety standards.

Applications

Industrial control panels
Automation equipment
Signal indication

Standards & Compliance

Complies with relevant Australian safety standards

Environmental Benefits

Energy-efficient LED technology minimizes power consumption

Warranty Information

1-year warranty against manufacturing defects.

Available Now

The Hager Red LED Triple Indicator Light SVN127M is available for immediate purchase. Ideal for industrial control panels and automation systems.

SVN127M (SVN127M, 125 Kb) [Download]

reach-declaration-SVN127M.pdf (reach-declaration-SVN127M.pdf, 33 Kb) [Download]

RoHS-declaration-SVN127M.pdf (RoHS-declaration-SVN127M.pdf, 33 Kb) [Download]

(DECLARATION_23_1158_09_23.pdf, 575 Kb) [Download]
