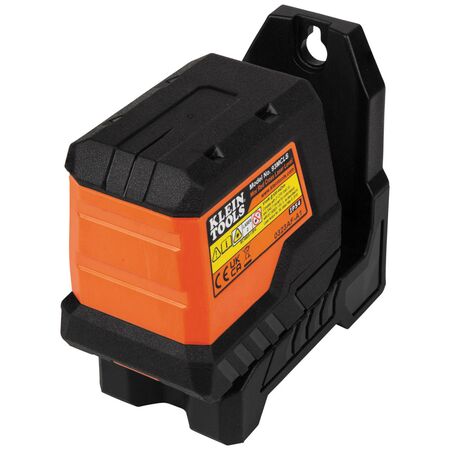

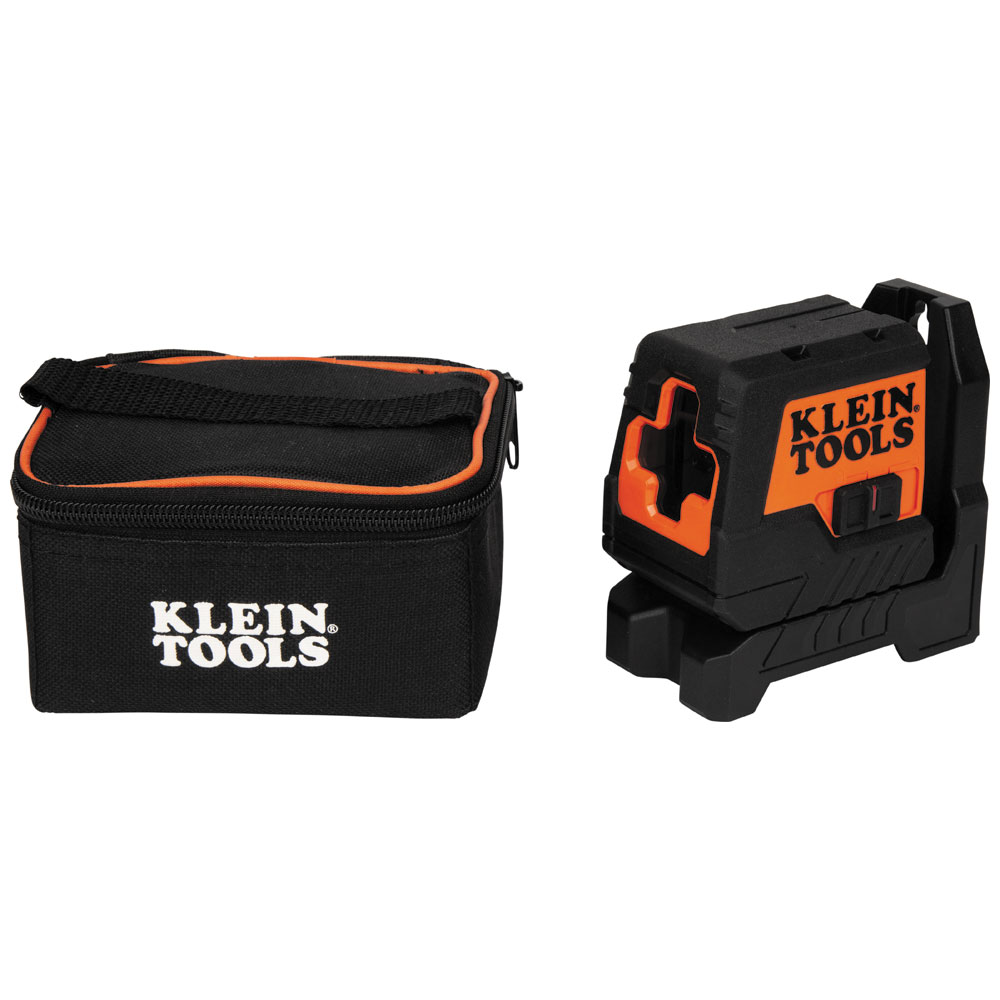

Red Mini Cross-Line Self-Levelling Laser Level | 11m Range | IP54 Rated | Magnetic Mount | by Wattmaster
The Red Mini Cross-Line Self-Levelling Laser Level is perfect for professional laser levelling and alignment tasks, featuring a working range of 11 meters and high precision with an accuracy of ±3/16 inch at 10 meters. With over 18 hours of runtime on 2 AA batteries and a durable IP54-rated design, it's ideal for indoor applications and compact use in tight spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Red Mini Cross-Line Self-Levelling Laser Level | 11m Range | IP54 Rated | Magnetic Mount | by Wattmaster
Brand: Wattmaster
SKU: A-93MCLS
Alternatively Known As: Mini Cross-Line Laser Level, Self-Leveling Laser, Red Laser Level, Compact Laser Level, Laser Alignment Tool
Technical Specifications
- Laser Type: Red laser, ≤1mW @ 630-642 nm
- Laser Class: Class II
- Number of Beams: 2 (horizontal and vertical)
- Accuracy: ±3/16 inch at 10 meters
- Range: 11 meters (35 feet) indoor
- Power Source: 2 x AA batteries
- Runtime: Over 18 hours
- Ingress Protection: IP54 water and dust resistant

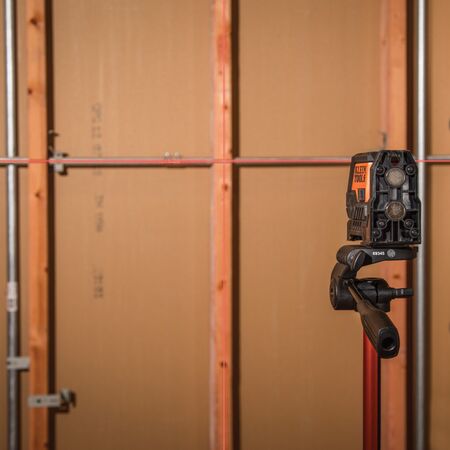

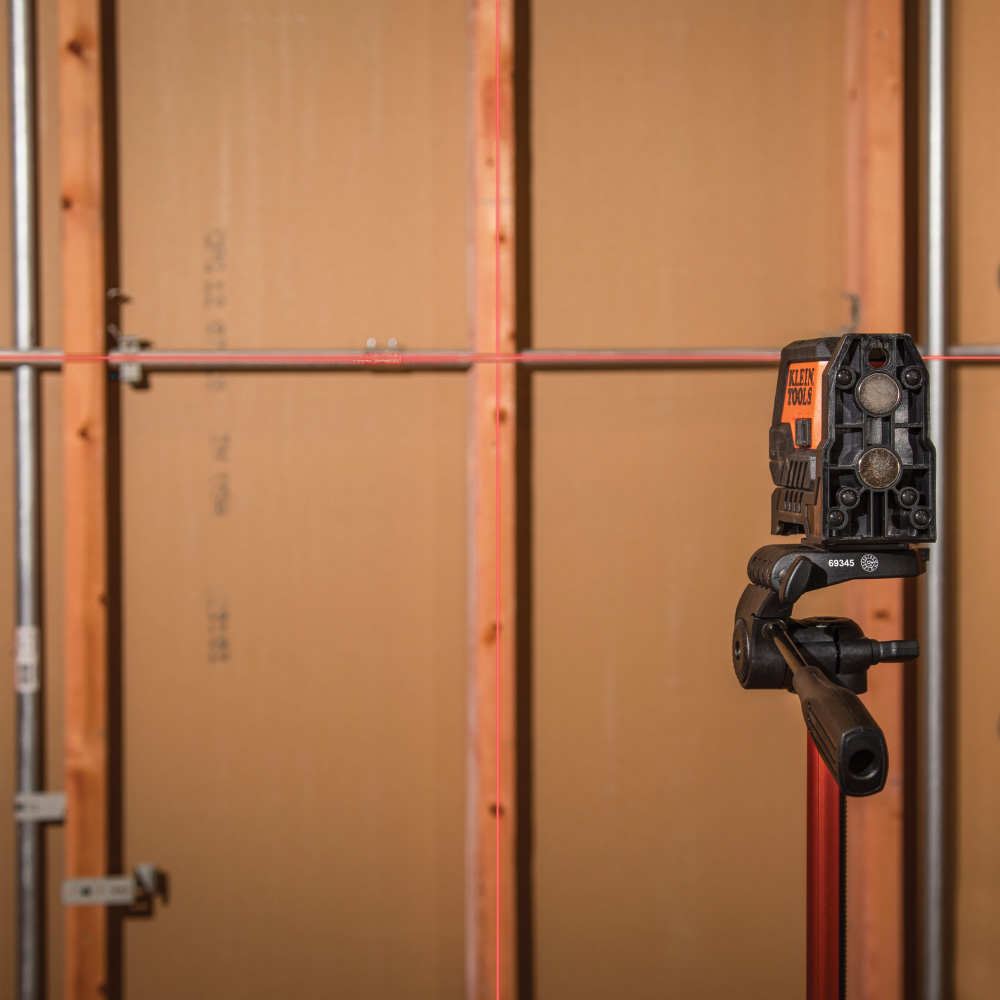

- Mounting: Magnetic bracket with 1/4-inch tripod mount
- Drop Protection: 1 meter
- Material: PC + ABS + TPE
- Safety Compliance: Complies with 21 CFR 1040.10 and 1040.11, IEC 60825-1 Ed. 3
- Dimensions (H x L x W): 102mm x 107mm x 81mm
- Weight: 0.4 kg
Key Features

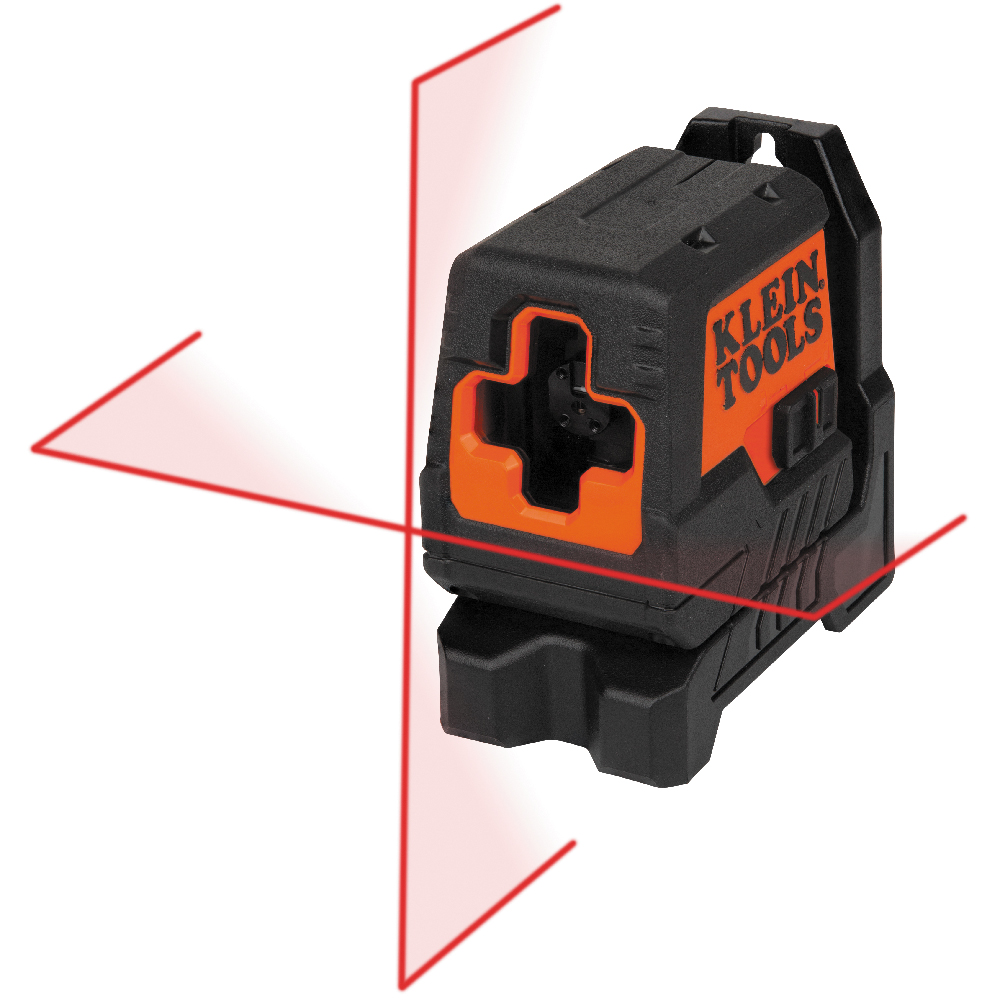

- Self-levelling red laser with horizontal and vertical lines
- Working range of 11 meters (35 feet)
- High precision with accuracy of ±3/16 inch at 10 meters

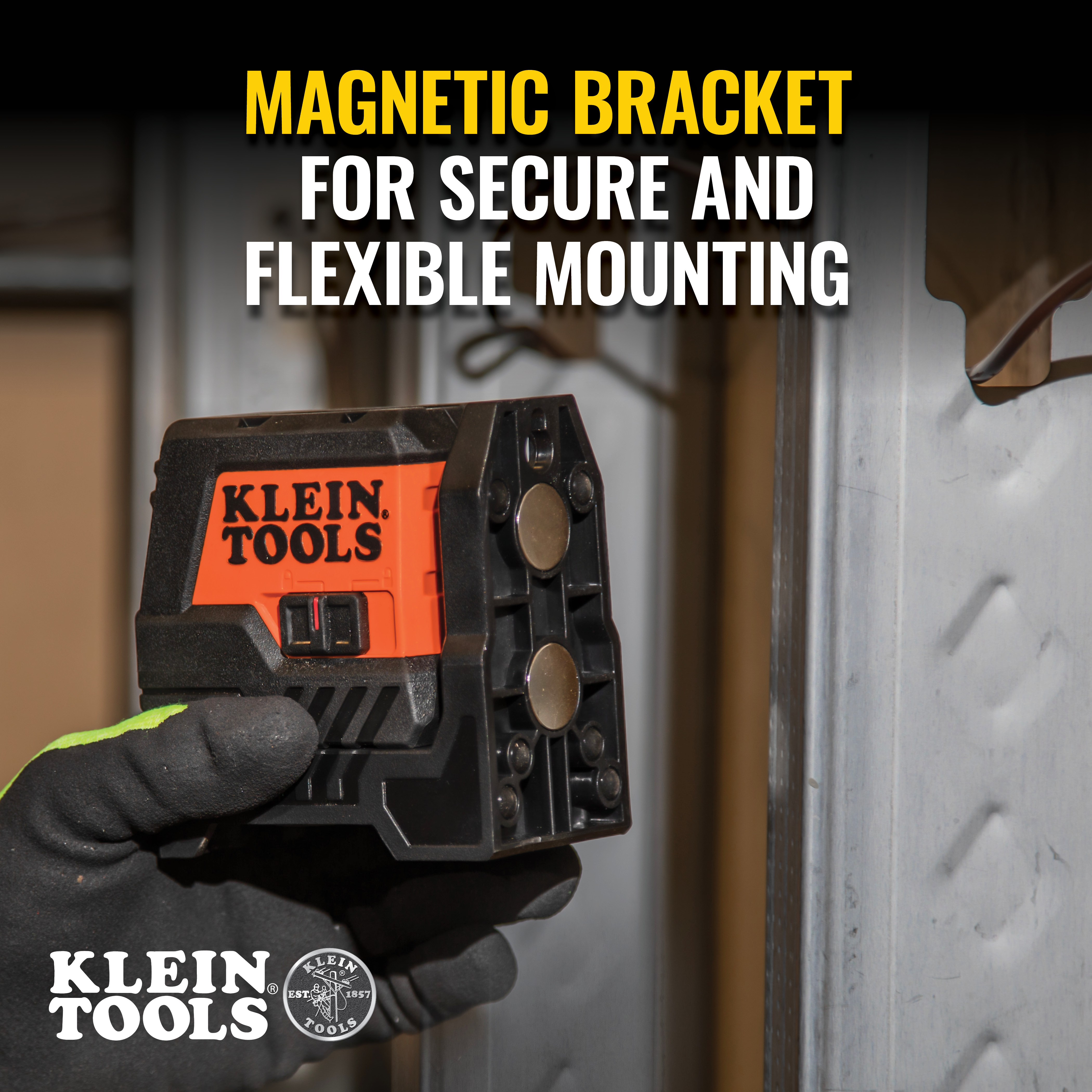

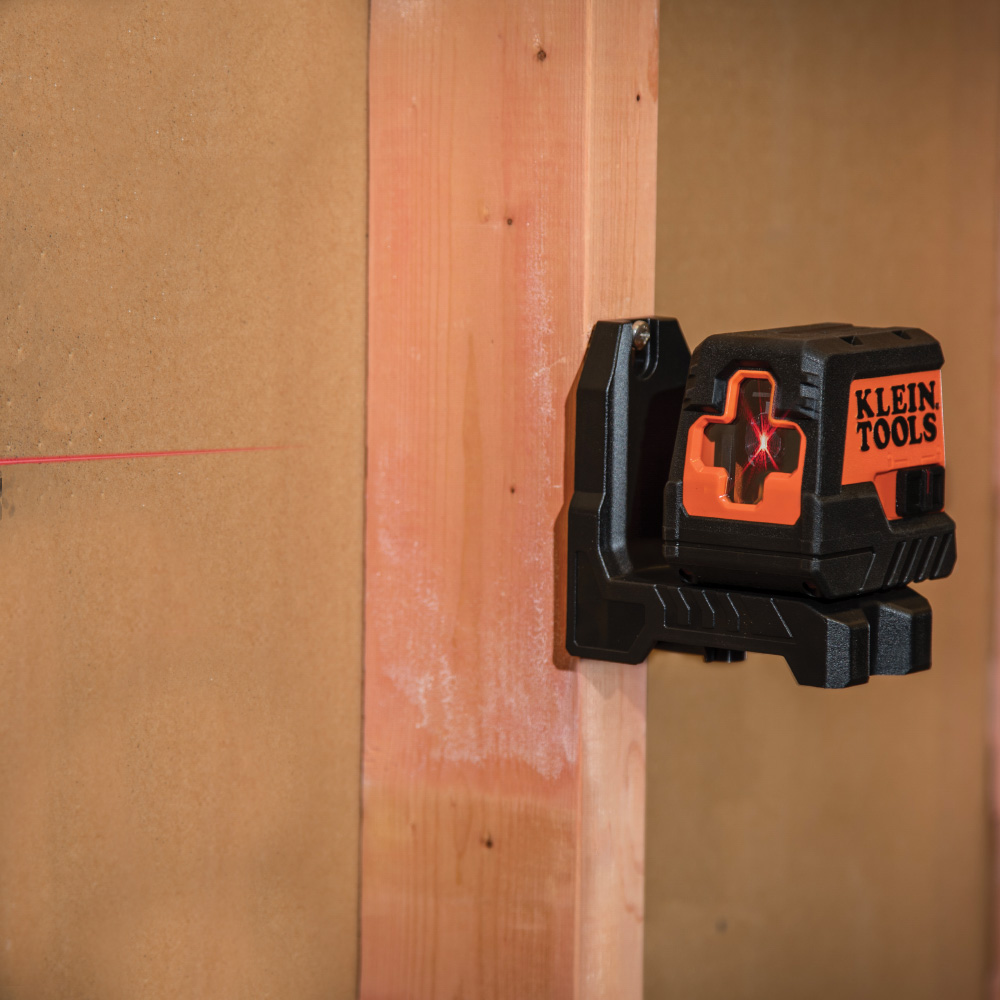

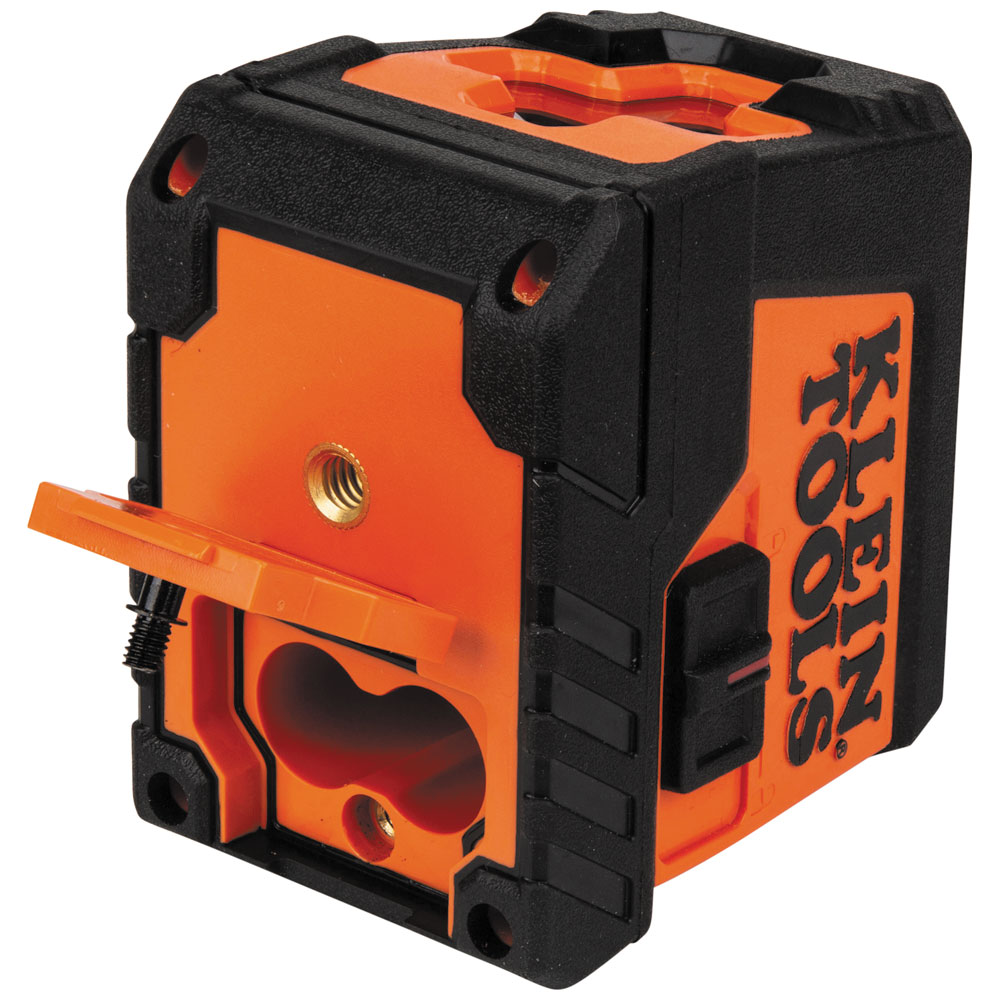

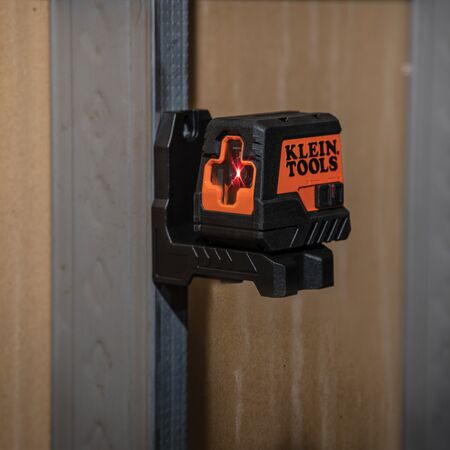

- Magnetic mounting bracket with 1/4-inch tripod mount
- Over 18 hours runtime with 2 x AA batteries
- Durable IP54-rated overmould design for water and dust resistance
- Auto out-of-level detection with flashing laser warning
- Compact and lightweight for easy handling and storage
Professional Installation Requirements
- No professional installation required; user manual provided for safe and correct operation.

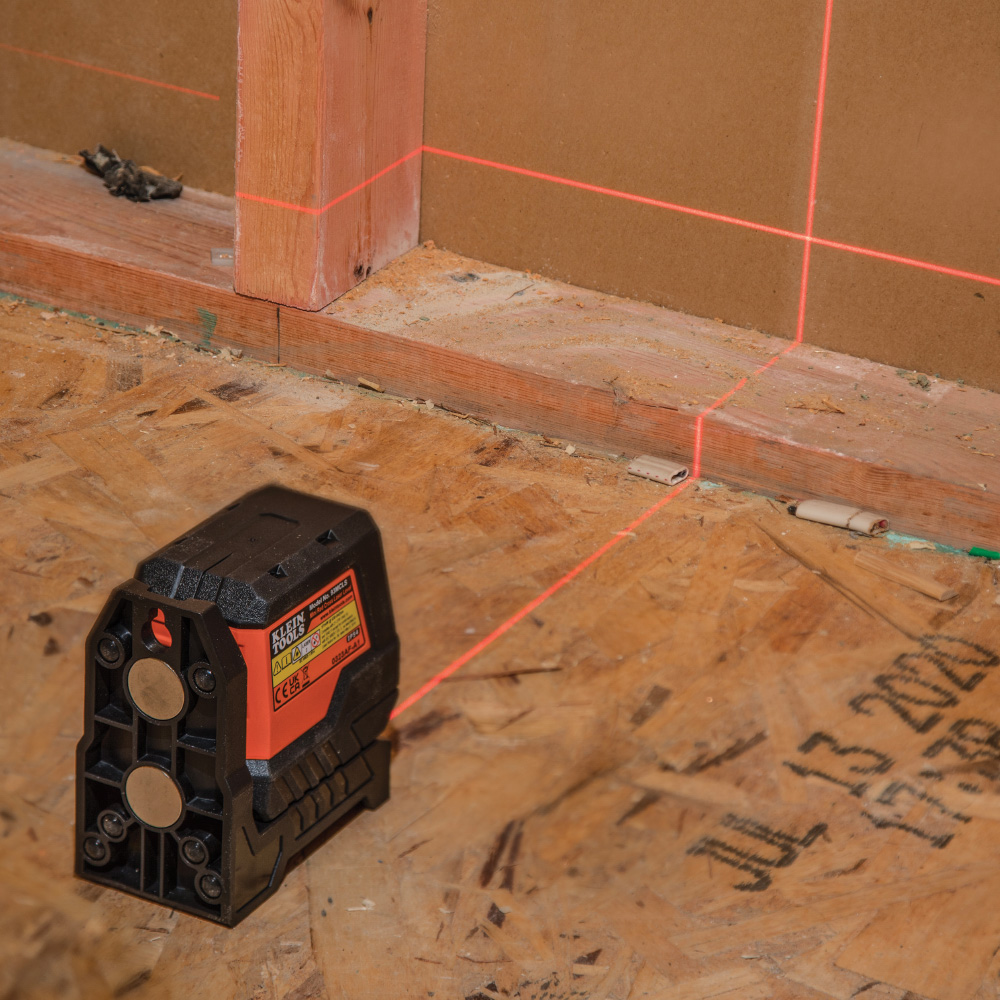

Applications
- Professional laser levelling and alignment tasks
- Indoor alignment and layout applications
- Compact use in tight spaces for construction and DIY projects
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long battery life reduces battery waste
- Durable design extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Red Mini Cross-Line Self-Levelling Laser Level 11m is available for immediate purchase, ideal for professional and DIY indoor laser alignment tasks.
