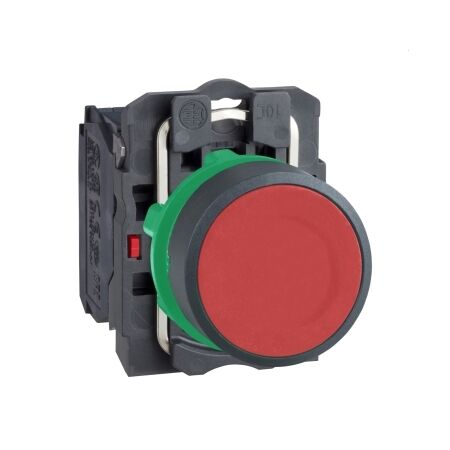

Red Push Button A22 S/Ret 1NC Unmarked | IP66 Rated | Spring Return Action | 22mm Mounting Diameter | by Clipsal
The Red Push Button A22 S/Ret 1NC Unmarked is designed for industrial control applications, featuring a robust spring return action and a normally closed (1NC) contact configuration. With a 22mm mounting diameter and IP66 rating, it's perfect for machinery start/stop stations and automation systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Red Push Button A22 S/Ret 1NC Unmarked | IP66 Rated | Spring Return Action | 22mm Mounting Diameter | by Clipsal
Brand: Clipsal
SKU: SCHXB5AA42
Alternatively Known As: 22mm Red Push Button, Industrial Push Button Switch, Clipsal SCHXB5AA42, Spring Return Push Button, 1NC Red Pushbutton
Technical Specifications
- Actuator type: Flush pushbutton
- Colour: Red
- Contact configuration: 1NC (Normally Closed)
- Operation: Spring return (momentary)
- Mounting diameter: 22mm
- Rated insulation voltage: 600V
- Thermal current: 10A
- Front ring material: Plastic
- Degree of protection: IP66
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Red flush pushbutton with spring return action
- 1 Normally Closed (1NC) contact configuration
- Unmarked actuator for flexible application
- 22mm mounting diameter
- Robust construction for industrial environments
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Manufacturing equipment
- Emergency stop circuits
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste.
- RoHS compliant materials minimize hazardous substances.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Red Push Button A22 S/Ret 1NC Unmarked (SCHXB5AA42) is available for immediate purchase. Ideal for industrial control panels and automation systems.
