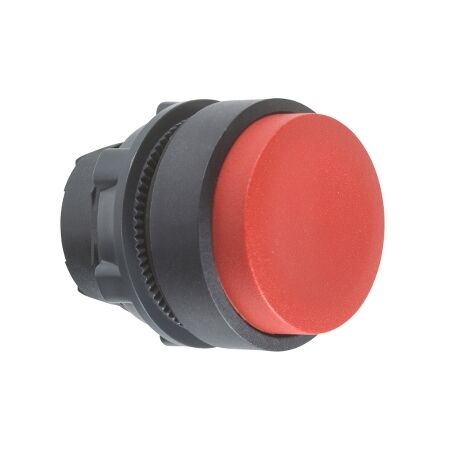

Red Push Button Head | 22mm Spring Return | IP66 Rated by Clipsal
Red push button head with 22mm mounting diameter and spring return—ideal for industrial control panels and machinery. Built for durability, with IP66 rating for dust and water protection.
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB5, push-button head, plastic, projecting, red, 22mm, spring return, unmarked
Brand: Clipsal
SKU: ZB5AL4
Alternatively Known As: Harmony XB5 Push Button, Red Push Button Head, Industrial Push Button
- Type: Non-illuminated push-button head
- Material: Plastic
- Mounting diameter: 22 mm
- Ambient temperature range: -40 to 70 °C
- IP Rating: IP66, IP67, IP69, IP69K
- IK Rating: IK03
- Shock resistance: 30 gn
- Vibration resistance: 5 gn
- Dimensions (H x L x W): 29mm x 33mm x 22mm
- Weight: 0.019 kg
- IP66 rated for protection against dust and water.
- Mechanical durability of 10 million cycles.
- Spring return operator for reliable performance.
- Professional installation is recommended for optimal functionality.
- Industrial: Control panels, machinery, and equipment
- Complies with IEC 60947-5-1 for safety and performance standards.
- Green Premium product with packaging made from recycled cardboard.
18 months warranty against manufacturing defects.
The Clipsal Harmony XB5 Push-Button Head in red is available now for immediate purchase. Ideal for industrial control applications.
