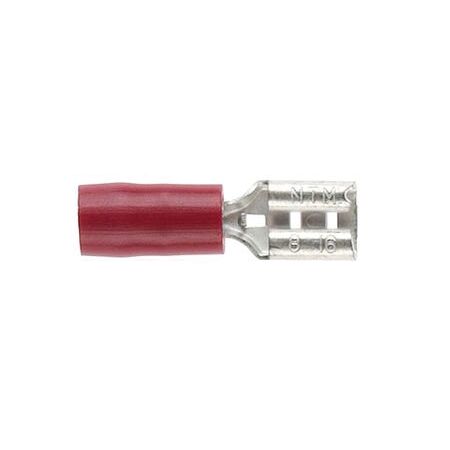

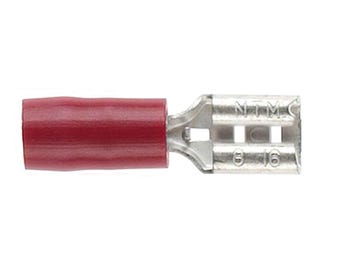

Red Quick Connect Terminal 4.8 x 0.8mm | Double Grip | PVC Insulated by Cabac
Red quick connect terminal with 4.8 x 0.8mm dimensions and double grip design—ideal for electrical wiring connections. Built for industrial and residential use, with PVC insulation for long-term electrical integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Red Quick Connect 4.8 X 0.8mm Tab Dg
Brand: Cabac
SKU: QC1.25-4.8DG
Alternatively Known As: Quick Connect Terminal 4.8mm, Red Quick Connect Terminal, Double Grip Terminal 4.8x0.8, Pre-insulated Electrical Terminal
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: 6% min
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% Tin Content, Plating Thickness 2.5 microns
- Insulation Material: PVC
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
- Nominal Pull Out Force varies by wire size from 4.6 kg to 35.2 kg
- Dimensions (H x L x W): 0.8mm x 15mm x 4.8mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Double grip design separates crimp barrels for conductor and insulation
- PVC insulated
Professional Installation Requirements
- Should be crimped onto the conductor with a quality crimper designed for this terminal type by a qualified electrician to ensure safety and reliability.
Applications
- Electrical wiring connections in switchgear, contactors, terminal blocks
- Industrial and residential electrical installations requiring quick connect terminals
- Automotive and machinery electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Improved installation accuracy reduces waste from faulty connections
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Red Quick Connect 4.8 x 0.8mm Double Grip Terminal is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable quick connect terminals.
