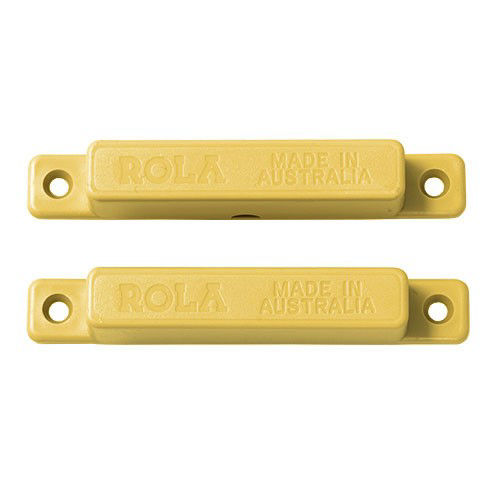

Reed Switch Primrose Yellow ROLA Ness

BRAND: Ness
SKU: 100-686
$16.50 List price: $22.00
+ −
30 Days Return Electricians Unlock Trade Access
Ness ROLA reed switch features a primrose yellow finish. Ideal for door and window contacts in alarm systems.

Alternatively Known As: ROLA Surface Reed Switch, Magnetic Door Contact, Magnetic Window Contact, Normally Closed Reed Switch

Technical Specifications
  • Product Type: Surface-mount reed switch
  • Colour: Primrose yellow
  • Contact State: Normally closed (N.C.)
  • Contact Material: Rhodium metal
  • Contact Switching Current: 3.0 A AC or DC maximum
  • Switching Voltage: 300 V AC / 400 V DC maximum
  • Operating Temperature: -40°C to 100°C
  • Mounting Hole Centres: 78 mm
  • Pull-in Gap: 20–25 mm
  • SKU: 100-686
  • Dimensions (H x L x W): 18mm x 90mm x 13.5mm
  • Weight: 0.1 kg
Key Features
  • ROLA brand surface-mount design
  • Normally closed contacts for alarm circuit monitoring
  • Primrose yellow housing for colour-matched installations
  • Suitable for door and window contacts in wired security alarm systems
  • Wide operating temperature range
  • High switching voltage and current ratings for signalling applications
Applications
  • Wired intruder alarm door contacts
  • Wired window alarm contacts
  • Residential security systems
  • Commercial security systems
  • Access monitoring and opening detection
Standards & Compliance
  • AS 2201.3-1991: Detection devices for internal-use intruder alarm systems; product-specific compliance is not stated by the manufacturer
Environmental Benefits
  • Passive switching device with no operating power consumption
  • Long service life can reduce replacement frequency and associated waste
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified.

Available Now

Available through Ness and authorised Australian distributors.
