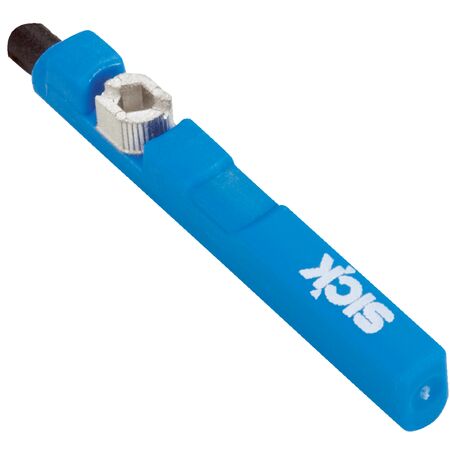

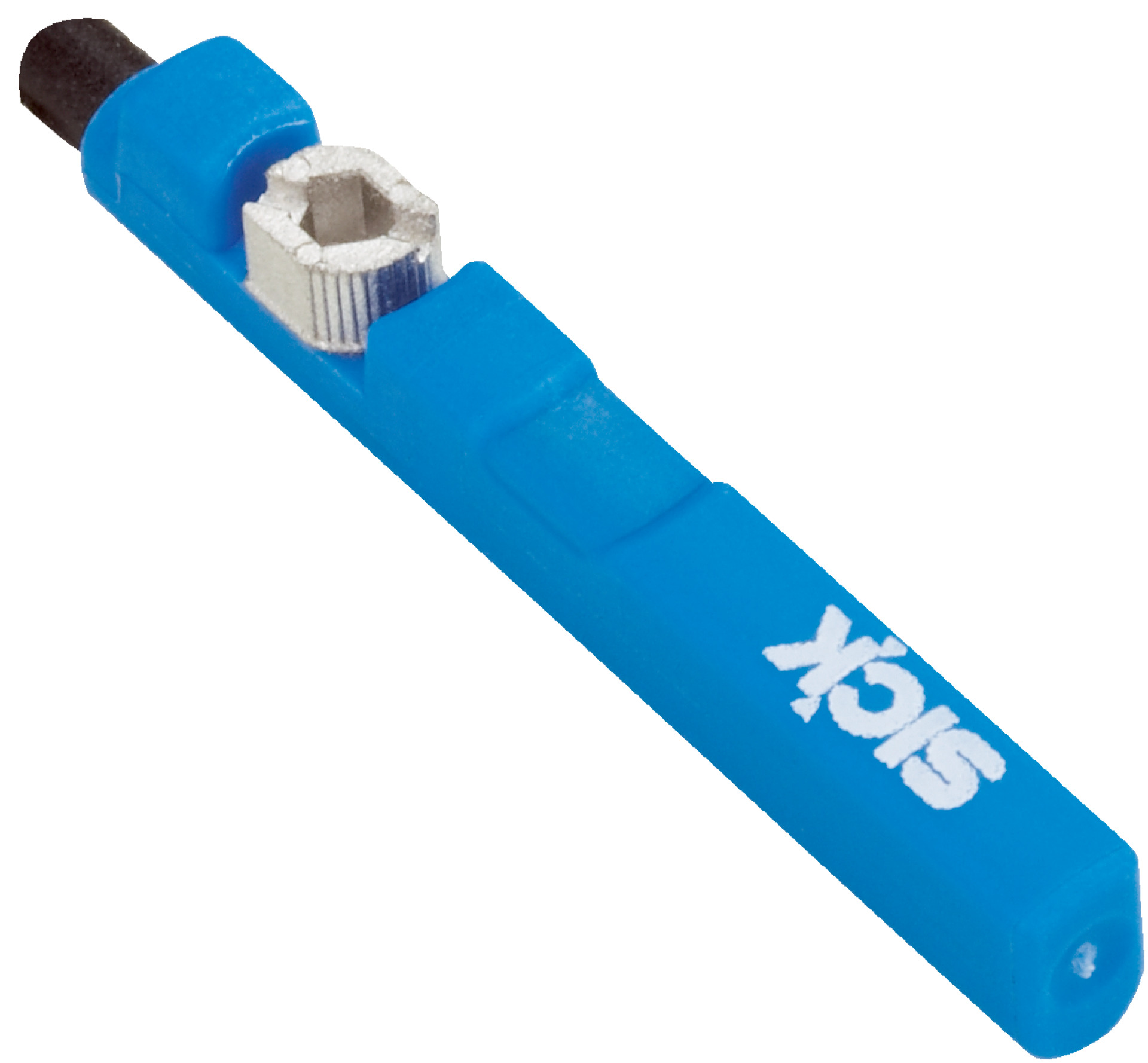

Reed Switch Sensor RZC1-04ZRS-KU0 | C-Slot Cylinder Type | 500 Hz Switching Frequency | IP68 & IP69K Rated | by SICK
The Reed Switch Sensor RZC1-04ZRS-KU0 is designed for precise cylinder position sensing in industrial automation. With a C-slot cylinder type and a high switching frequency of up to 500 Hz, it operates within a wide supply voltage range of 5 V to 30 V AC/DC. Ideal for harsh environments, this sensor features IP68 and IP69K ratings for dust and water protection, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 500 Hz
- Electrical wiring: AC/DC 3-wire
- Supply voltage: 5 V AC/DC to 30 V AC/DC
- Power consumption: 5 mA without load
- Voltage drop: < 0.5 V
- Continuous current Ia: ≤ 500 mA
- Switching capacity: ≤ 10 W
- Protection class: III
- Overrun distance, typical: 7 mm
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 3-wire, stripped, 2 m
- Cable diameter: Ø 2.2 mm
- Bending radius: Fixed installation > 2 x cable diameter, flexible use > 5 x cable diameter
- Cable outlet: Axial
- Housing material: Plastic, PA, strengthened
- Cable material: PUR
- Dimensions (H x L x W): 26mm x 26mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible
- Reed switching output with normally open function
- High switching frequency up to 500 Hz
- Wide supply voltage range from 5 V to 30 V AC/DC
- IP68 and IP69K rated for dust and water ingress protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 3-wire, 2 m PUR cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Use with SMC rail CDQ2 and ECDQ2 cylinders
- Harsh environment applications requiring high ingress protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 5 mA without load
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RZC1-04ZRS-KU0 reed switch sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
