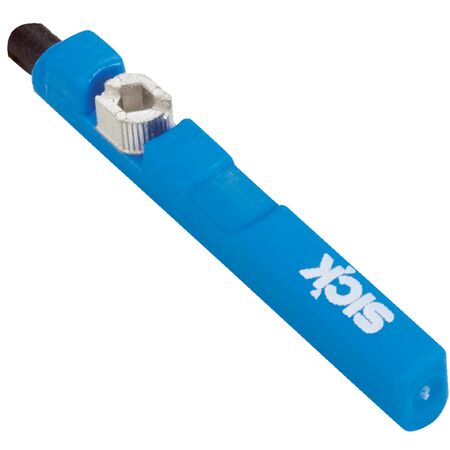

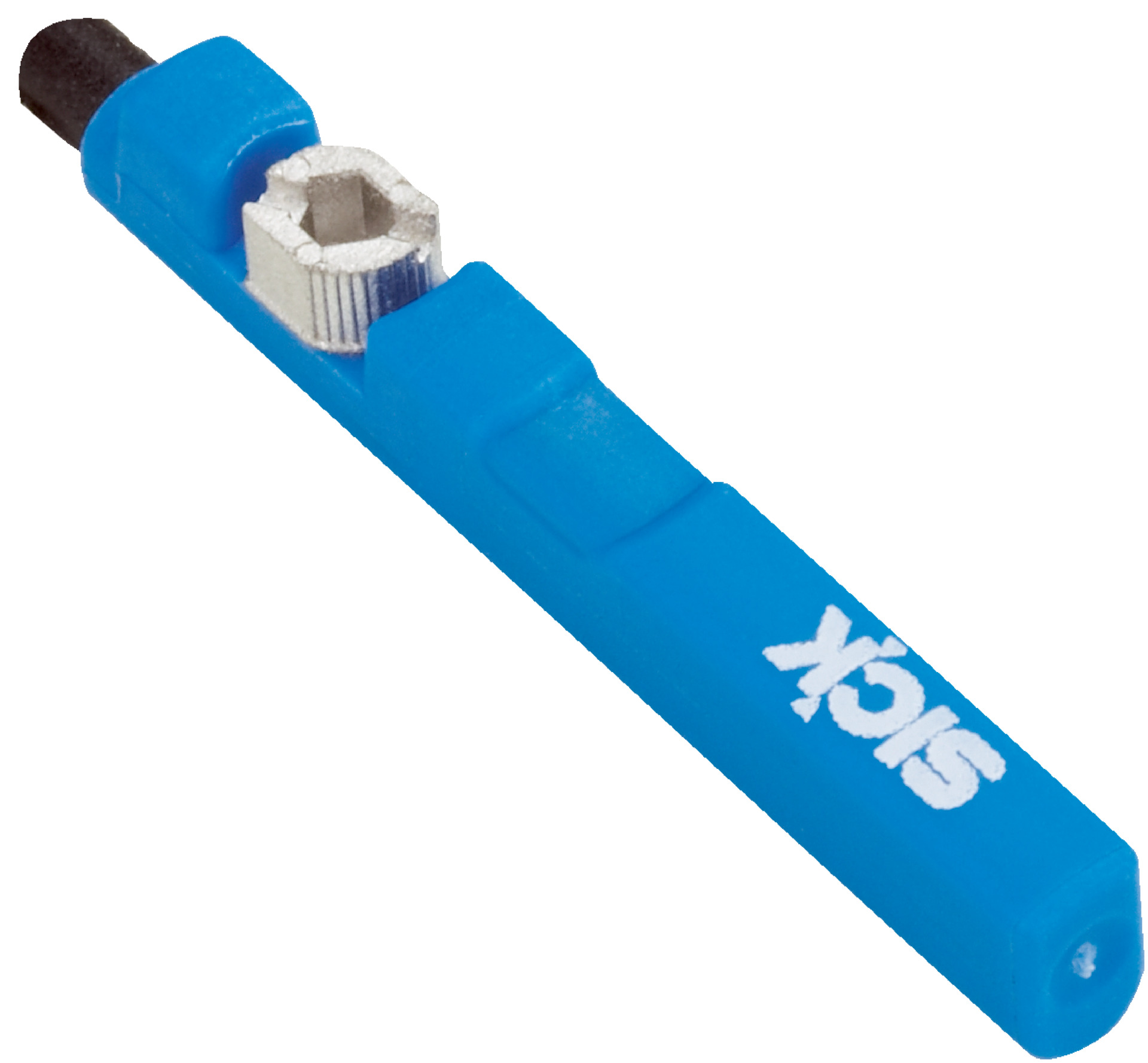

Reed Switch Sensor C-slot | IP67 Rated | 500 Hz Switching Frequency | by SICK
The Reed Switch Sensor C-slot is designed for precise position sensing in industrial automation, featuring a high switching frequency of 500 Hz and an IP67 rated enclosure for dust and water protection. Ideal for pneumatic cylinder position detection, this sensor ensures reliable performance in factory automation systems, making it a perfect choice for professionals seeking durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Compatible cylinder adapters: SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 26.3 mm
- Switching output: Reed, normally open (NO)
- Switching frequency: 500 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 5 V to 30 V AC/DC
- Power consumption: 5 mA without load
- Voltage drop: < 3.2 V
- Continuous current Ia: ≤ 50 mA
- Switching capacity: ≤ 6 W
- Protection class: II
- Overrun distance (typical): 7 mm
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 2-wire, stripped, 5 m length
- Cable specifications: Conductor cross section 0.09 mm², cable diameter Ø 2.2 mm, PUR material
- Cable outlet: Axial
- Dimensions (H x L x W): 26mm x 26mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- Reed switching output with normally open (NO) function
- High switching frequency up to 500 Hz
- IP67 rated enclosure for dust and water protection
- Wide supply voltage range from 5 V to 30 V AC/DC
- Low power consumption of 5 mA without load
- Status indicator LED for operational feedback
- Robust shock and vibration resistance (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 2-wire, 5 m length, axial outlet
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Pneumatic cylinder position detection
- Factory automation and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage in automation systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RZC1-04ZUS-KUBS03 Reed Switch Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
