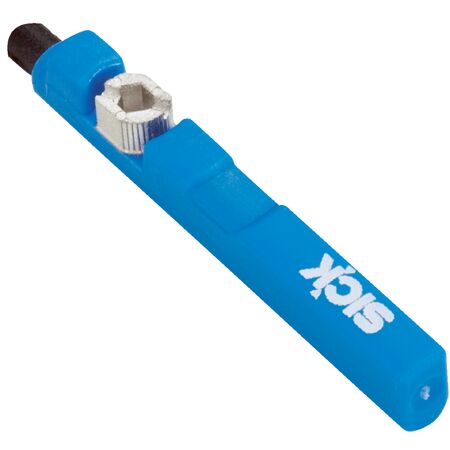

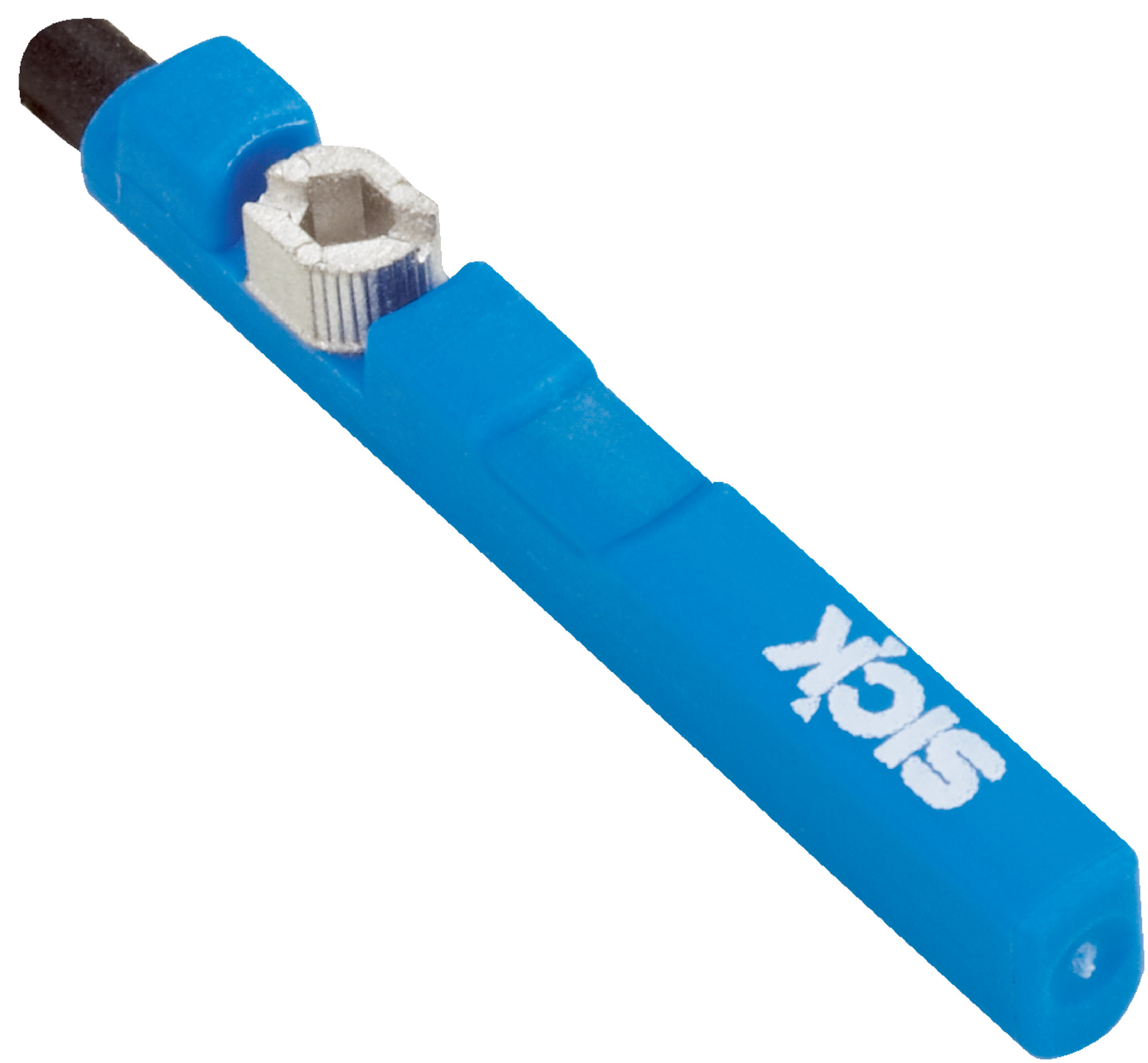

Reed Switch Sensor C-slot | Normally Open Output | IP67 Rated | by SICK
The Reed Switch Sensor C-slot is designed for precise position sensing in industrial automation, featuring a normally open output and a high switching frequency of up to 500 Hz. With an IP67 enclosure rating, it ensures reliable performance in harsh environments, making it ideal for pneumatic cylinder position detection and machine safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 500 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 5 V AC/DC to 120 V AC/DC
- Rated insulation voltage Ui: 125 V
- Rated impulse withstand voltage Uimp: 2.5 kV
- Power consumption: 5 mA without load
- Voltage drop: < 3.2 V
- Continuous current Ia: ≤ 50 mA
- Switching capacity: ≤ 6 W
- Protection class: II
- Overrun distance, typical: 7 mm
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 2-wire, stripped, 2 m
- Cable diameter: Ø 2.2 mm
- Material housing: Plastic, PA, strengthened
- Cable material: PUR
- Dimensions (H x L x W): 26mm x 26mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- Reed switching output with normally open (NO) function
- High switching frequency up to 500 Hz
- Enclosure rating IP67 for dust and water protection
- Wide supply voltage range from 5 V AC/DC to 120 V AC/DC
- Status indicator LED for operational feedback
- Robust plastic housing (PA, strengthened) with PUR cable
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Pneumatic cylinder position detection
- Machine safety and control systems
- Factory automation requiring reliable switching output
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 5 mA reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RZC1-04ZUS-KU0 Reed Switch Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
