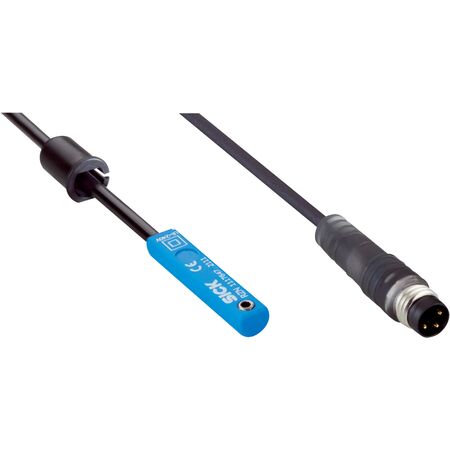

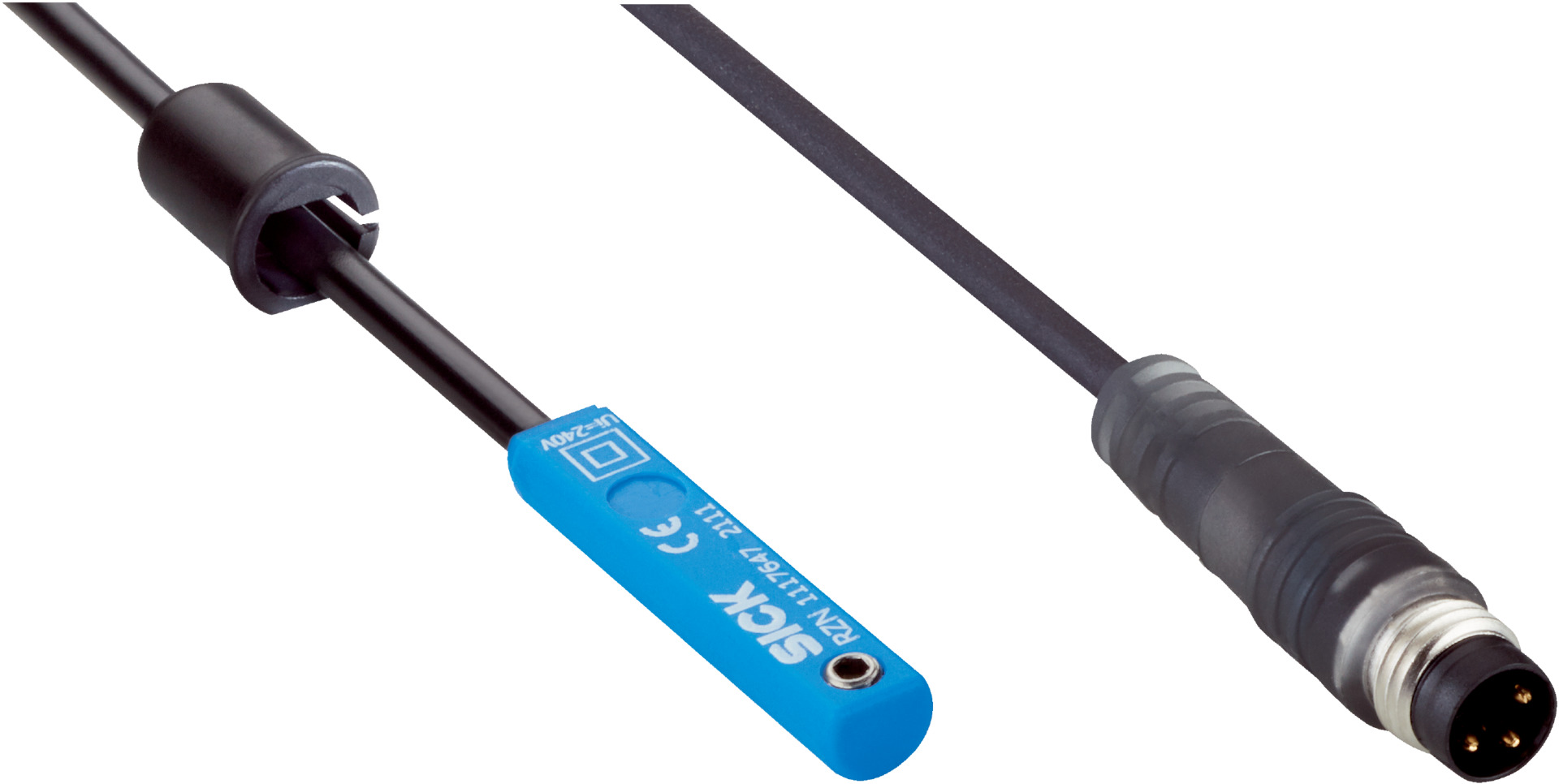

Reed Switch Sensor RZN-03ZUS-KP0 | IMI Norgren Slot Compatibility | IP67 Rated | 400 Hz Switching Frequency | by SICK
The Reed Switch Sensor RZN-03ZUS-KP0 is designed for industrial automation, featuring IMI Norgren slot compatibility and a high switching frequency of up to 400 Hz. With an IP67 rated enclosure, it offers excellent dust and water protection, making it ideal for pneumatic cylinder monitoring and factory automation applications. Its robust design ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: IMI Norgren slot
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 400 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 5 V AC/DC to 30 V AC/DC
- Voltage drop: ≤ 3.5 V
- Continuous current Ia: ≤ 100 mA
- Switching capacity: ≤ 10 W
- Protection class: III
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –40 °C to +80 °C
- Shock and vibration resistance: 50 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin connector, 0.3 m length
- Cable diameter: 2.9 mm
- Cable outlet: Axial
- Material housing: Plastic
- Cable material: PUR
- Mounting clip included
- Dimensions (H x L x W): 15mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- IMI Norgren slot cylinder type compatibility
- Reed switching output with normally open function
- High switching frequency up to 400 Hz
- IP67 rated enclosure for dust and water protection
- Wide supply voltage range from 5 V to 30 V AC/DC
- Status indicator LED for operational feedback
- Robust shock and vibration resistance
- Cable with M8 3-pin connector, suitable for drag chain use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic cylinder monitoring
- Factory automation requiring reliable reed switch output
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage from 5 V to 30 V AC/DC
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK RZN-03ZUS-KP0 reed switch sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder applications.
