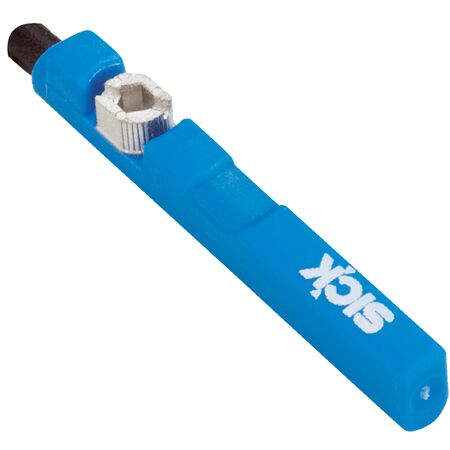

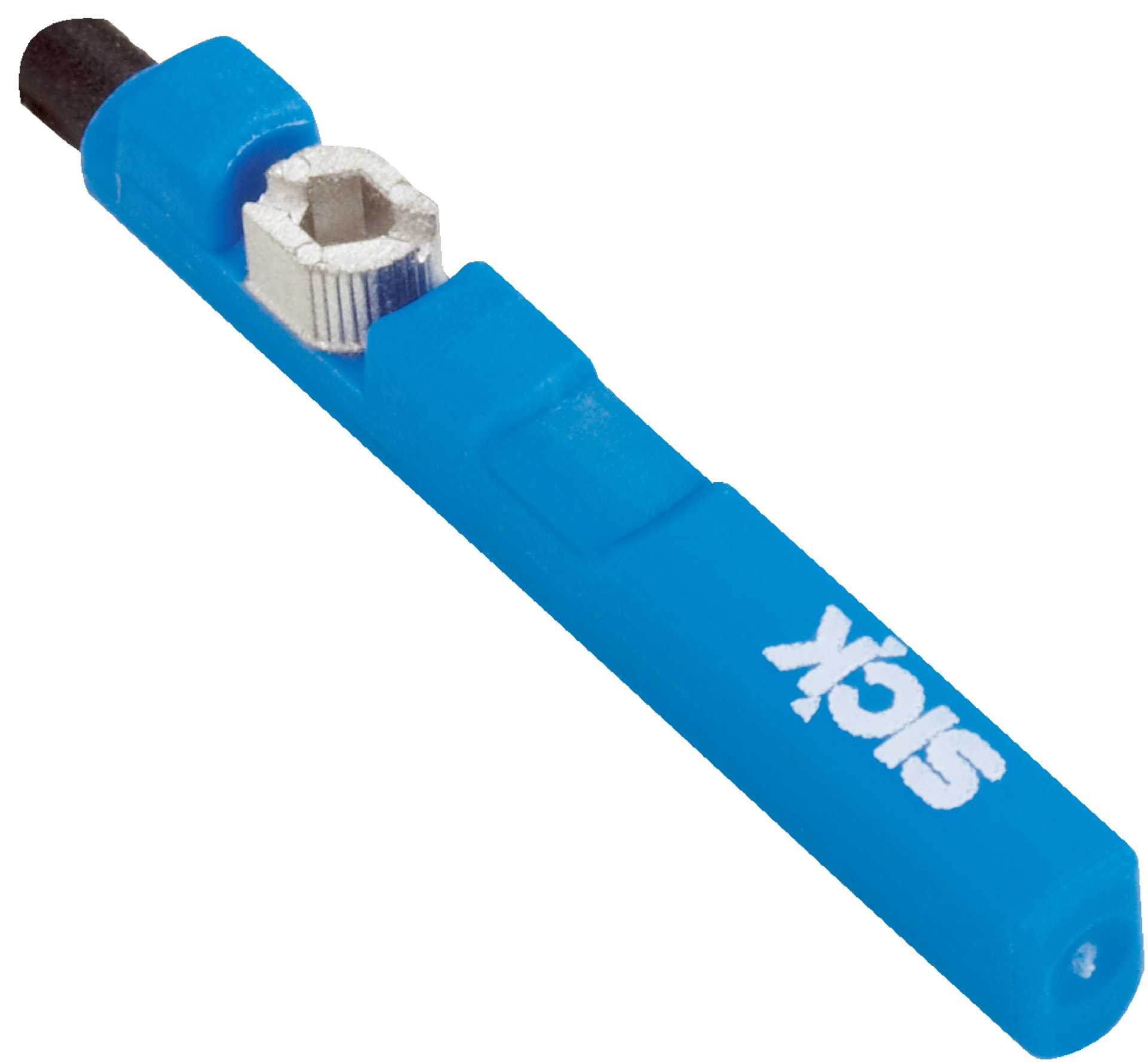

Reed Switch Sensor RZC1-04ZUS-KU0S01 | IP67 Rated | High Switching Frequency | -30°C to +80°C Operating Range | by SICK
The Reed Switch Sensor RZC1-04ZUS-KU0S01 is designed for precise position sensing in industrial automation and pneumatic systems. With an IP67 rated enclosure, it offers dust and water protection, while its high switching frequency of up to 500 Hz ensures reliable performance. Ideal for machine safety and control systems, this sensor operates effectively in a wide temperature range from -30°C to +80°C, making it a versatile choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V AC/DC to 30 V AC/DC
- Power consumption: 5 mA without load
- Voltage drop: less than 3.2 V
- Continuous current Ia: up to 50 mA
- Switching capacity: up to 6 W
- Protection class: II
- Overrun distance typical: 7 mm
- Reproducibility: less than or equal to 0.1 mT
- EMC compliance: EN 60947-5-2
- Connection type: 2-wire cable, 2 m length, stripped
- Cable diameter: 2.2 mm
- Material: Plastic housing (PA, strengthened), PUR cable
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10-55 Hz, 1 mm
- Dimensions (H x L x W): 26mm x 26mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- Reed switching output with normally open (NO) function
- High switching frequency up to 500 Hz
- IP67 rated enclosure for dust and water protection
- Status indicator LED for operational feedback
- Wide ambient operating temperature range from -30°C to +80°C
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 2-wire, 2 m stripped cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 5 mA reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RZC1-04ZUS-KU0S01 reed switch sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
