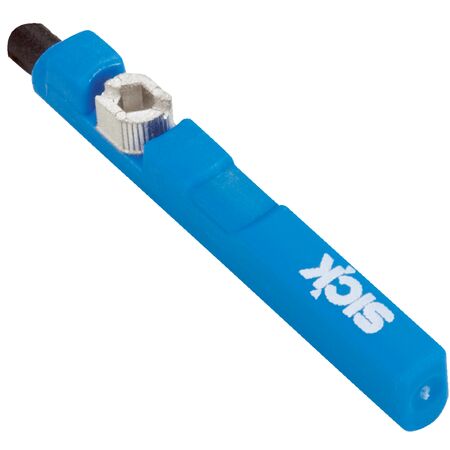

Reed Switch Sensor RZC1-04ZUS-KUAS02 | IP67 Rated | High Switching Frequency | @ by SICK
The Reed Switch Sensor RZC1-04ZUS-KUAS02 is designed for precise position sensing in industrial automation and pneumatic systems. With an IP67 rated enclosure, it offers dust and water protection, while its high switching frequency of 500 Hz ensures reliable performance. Ideal for machine safety and control systems, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V AC/DC to 30 V AC/DC
- Power consumption: 5 mA without load
- Voltage drop: less than 3.2 V
- Continuous current: up to 50 mA
- Switching capacity: up to 6 W
- Protection class: II
- Overrun distance: typically 7 mm
- Reproducibility: less than or equal to 0.1 mT
- Connection type: 2-wire cable, 3 m length, axial outlet
- Cable specifications: PUR material, 0.09 mm² conductor cross section, 2.2 mm diameter
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 10mm x 26.3mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- Reed switching output with normally open (NO) function
- High switching frequency of 500 Hz
- IP67 rated enclosure for dust and water protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure proper operation and safety.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 5 mA reduces energy usage
- Durable plastic housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RZC1-04ZUS-KUAS02 Reed Switch Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
