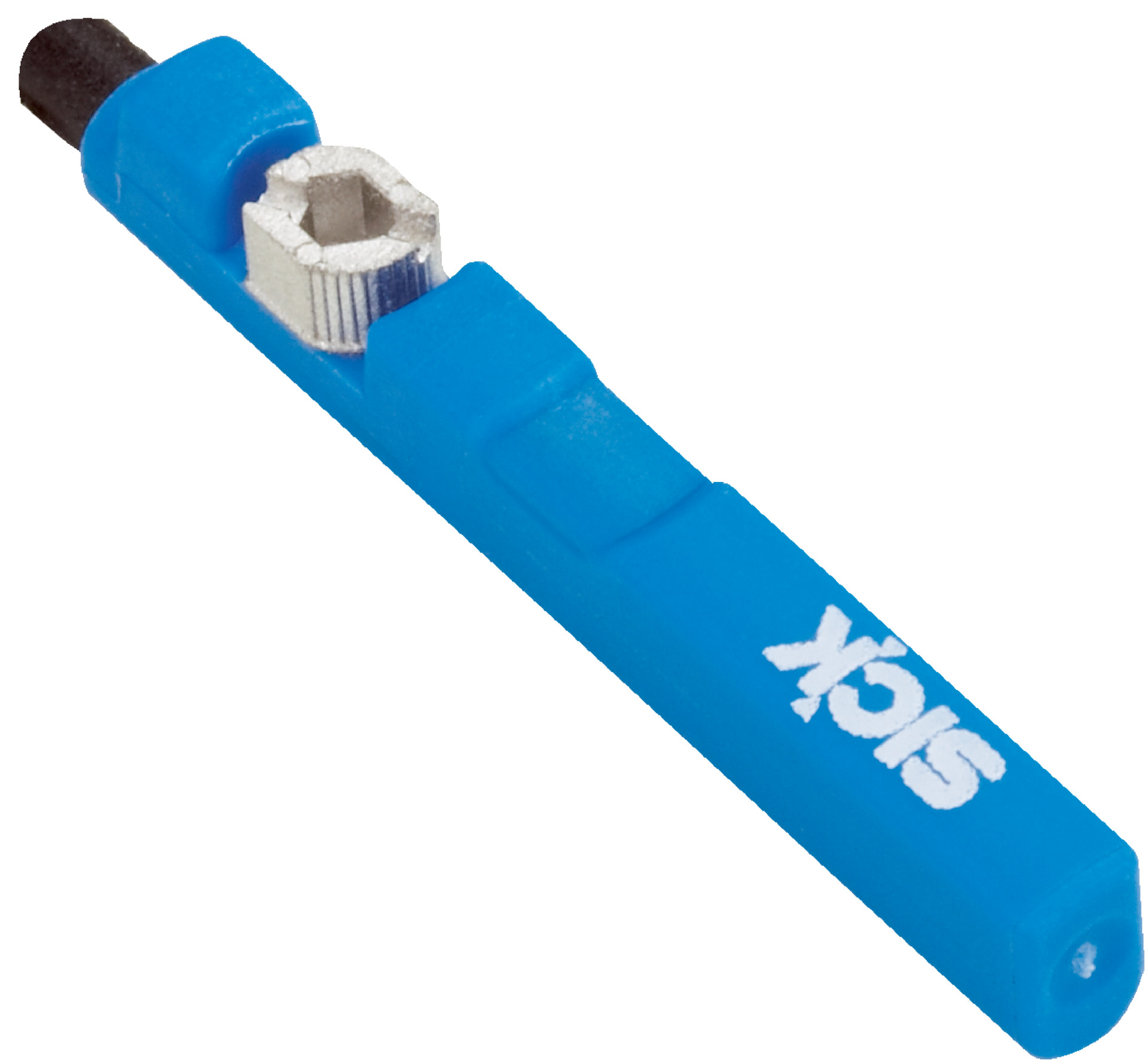

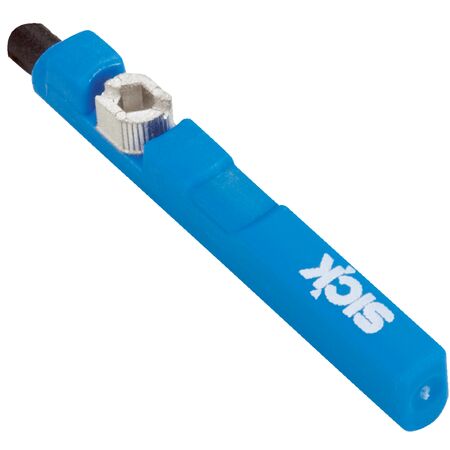

Reed Switch Sensor RZC1-04ZVS-KQ0S04 | IP67 Rated | High Switching Frequency | @ by SICK
The Reed Switch Sensor RZC1-04ZVS-KQ0S04 is designed for precise position sensing in industrial automation and pneumatic systems. With an IP67 rated enclosure, it offers dust and water protection, while its high switching frequency of 100 Hz ensures reliable performance. Ideal for machine safety and control systems, this sensor is built for durability and low power consumption, making it a smart choice for your automation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V AC/DC to 120 V AC/DC
- Rated insulation voltage Ui: 125 V
- Rated impulse withstand voltage Uimp: 2.5 kV
- Voltage drop: < 0.1 V
- Continuous current Ia: ≤ 50 mA
- Switching capacity: ≤ 6 W
- Protection class: II
- Overrun distance, typical: 7 mm
- Reproducibility: ≤ 0.1 mT
- Connection type: Cable with M12 4-pin connector, 0.3 m length
- Cable diameter: Ø 2.2 mm
- Material: Plastic PA housing, PUR cable
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 26mm x 26mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- Reed switching output with normally open (NO) function
- High switching frequency of 100 Hz
- IP67 rated enclosure for dust and water protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with voltage range from 5 V to 120 V AC/DC
- Durable plastic housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RZC1-04ZVS-KQ0S04 sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
