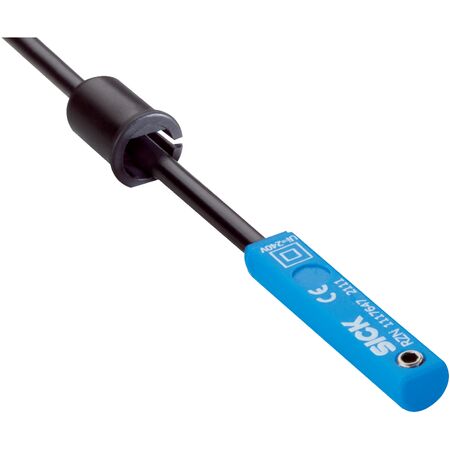

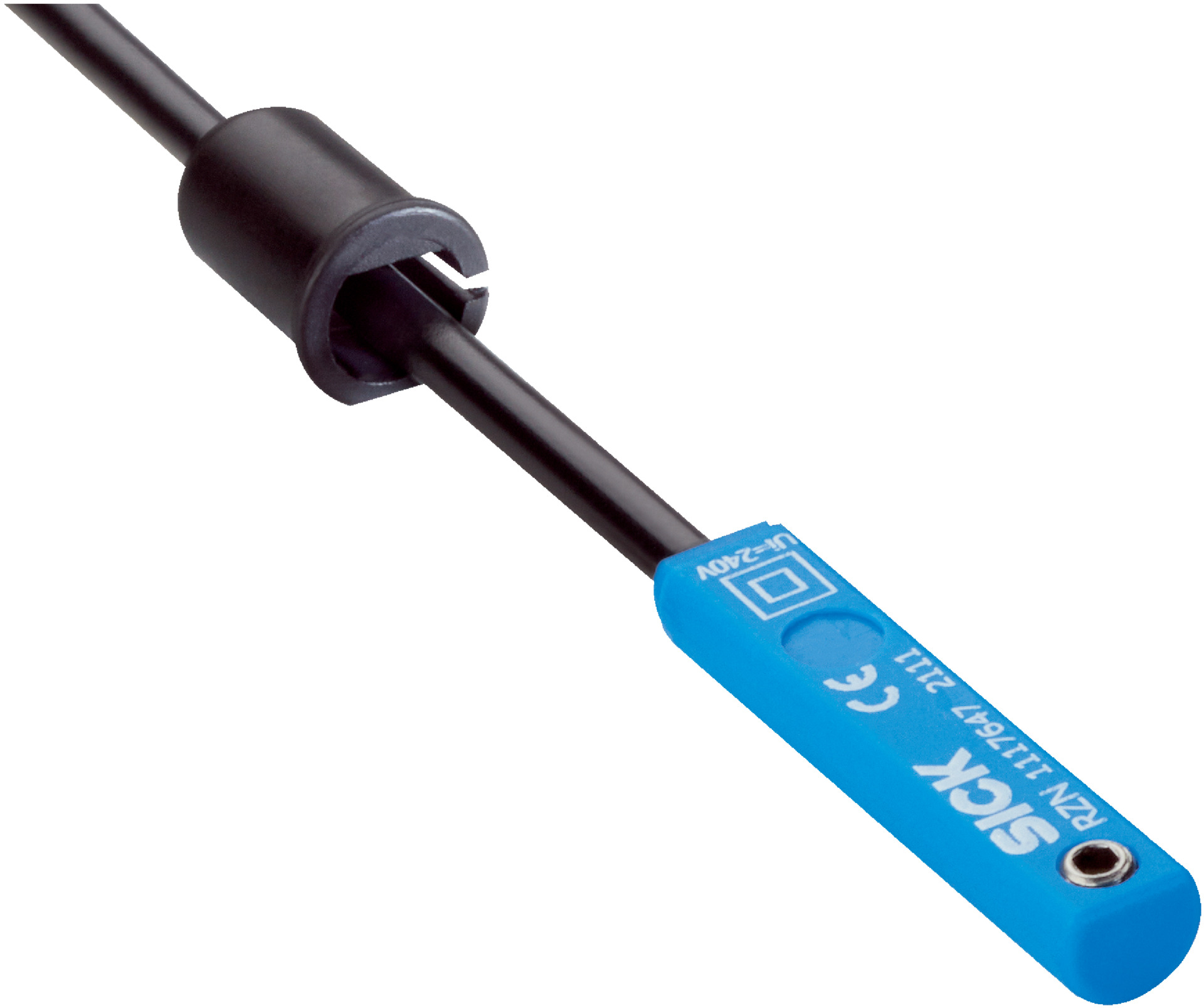

Reed Switch Sensor RZN-03ZWS-KWB | IMI Norgren Slot Compatibility | IP67 Rated | 400 Hz Switching Frequency | by SICK
The RZN-03ZWS-KWB reed switch sensor is designed for precise cylinder position detection in industrial automation. With compatibility for IMI Norgren slot cylinders and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for pneumatic systems and machine safety applications, this sensor features a high switching frequency of 400 Hz and a status indicator LED for operational feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: IMI Norgren slot
- Compatible with round body cylinders using adapter
- Housing length: 29.5 mm
- Switching output: Reed, normally open (NO)
- Switching frequency: 400 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 5 V AC/DC to 240 V AC/DC
- Rated insulation voltage Ui: 240 V
- Rated impulse withstand voltage Uimp: 4 kV
- Voltage drop: ≤ 3.5 V
- Continuous current Ia: ≤ 100 mA
- Switching capacity: ≤ 10 W
- Protection class: II
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –40 °C to +80 °C
- Shock and vibration resistance: 50 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliance: EN 60947-5-2
- Connection type: 2-wire cable, 5 m length, axial outlet
- Material: Plastic housing, PVC cable
- Dimensions (H x L x W): 10mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- IMI Norgren slot cylinder type compatibility
- Reed switching output with normally open (NO) function
- High switching frequency of 400 Hz
- Wide supply voltage range from 5 V AC/DC to 240 V AC/DC
- IP67 rated enclosure for dust and water protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (50 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 5 m length and axial outlet
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Low power consumption supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RZN-03ZWS-KWB reed switch sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
