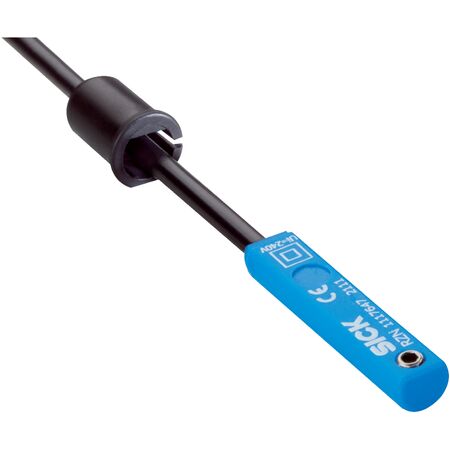

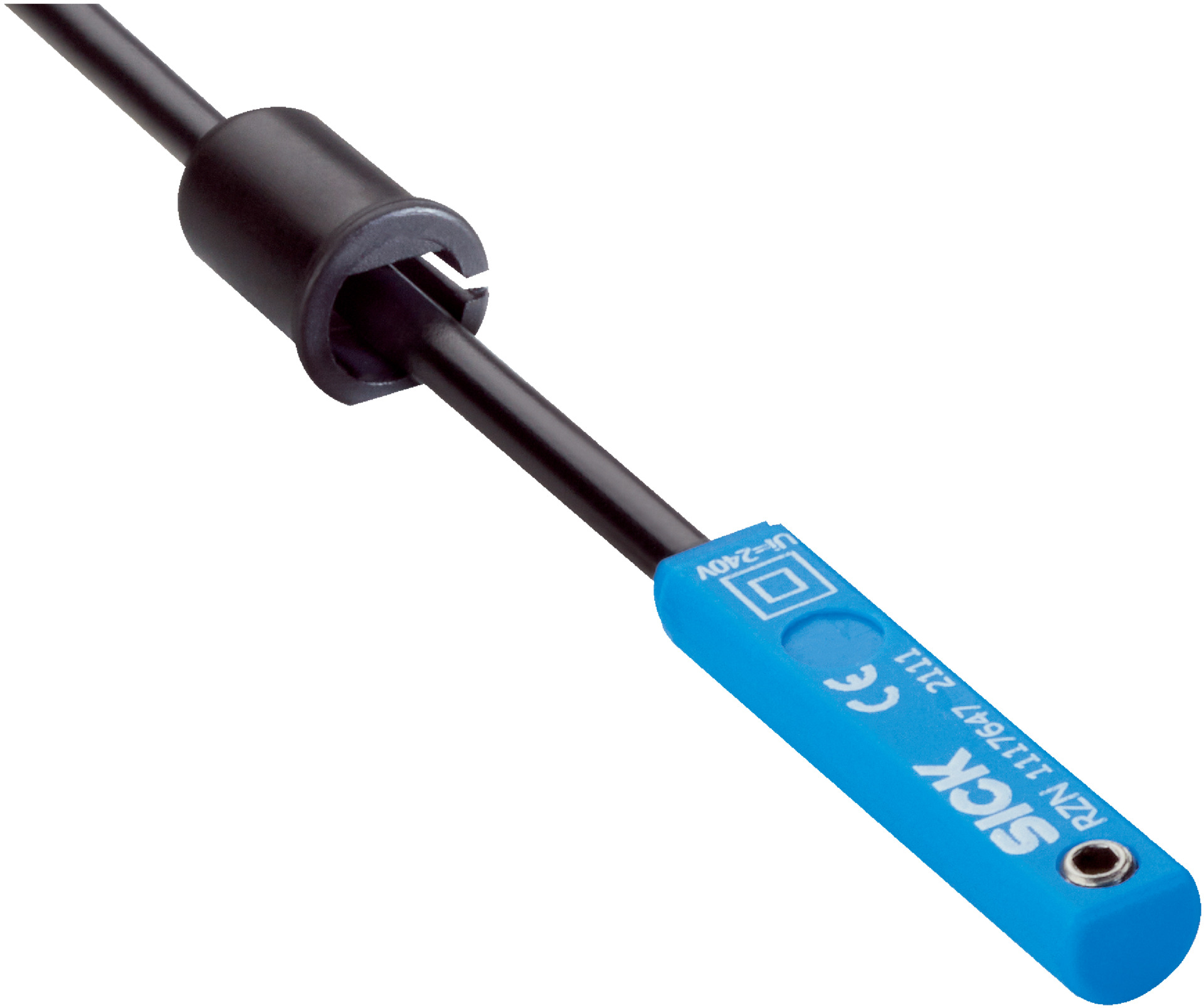

Reed Switch Sensor RZN-03ZWS-KW0 | IMI Norgren Slot Compatibility | IP67 Rated | 400 Hz Switching Frequency | by SICK
The Reed Switch Sensor RZN-03ZWS-KW0 is designed for precise cylinder position detection in industrial automation. With IMI Norgren slot compatibility and a high switching frequency of 400 Hz, this sensor ensures reliable performance in pneumatic systems. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for various machine safety and control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: IMI Norgren slot
- Compatible with round body cylinders using adapter
- Housing length: 29.5 mm
- Switching output: Reed, normally open (NO)
- Switching frequency: 400 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 5 V AC/DC to 240 V AC/DC
- Rated insulation voltage Ui: 240 V
- Rated impulse withstand voltage Uimp: 4 kV
- Voltage drop: ≤ 3.5 V
- Continuous current Ia: ≤ 100 mA
- Switching capacity: ≤ 10 W
- Protection class: II
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –40 °C to +80 °C
- Shock and vibration resistance: 50 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC compliance: EN 60947-5-2
- Connection type: Cable, 2-wire, stripped, axial outlet, 2 m length
- Cable specifications: 0.12 mm² conductor cross section, 3 mm diameter, PVC material
- Dimensions (H x L x W): 10mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- IMI Norgren slot cylinder type compatibility
- Reed switching output with normally open (NO) function
- High switching frequency of 400 Hz
- IP67 rated enclosure for dust and water protection
- Wide supply voltage range from 5 V AC/DC to 240 V AC/DC
- Status indicator LED for operational feedback
- Shock and vibration resistant (50 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection with 2-wire stripped cable, 2 m length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient switching capability
- Durable design reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RZN-03ZWS-KW0 Reed Switch Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
