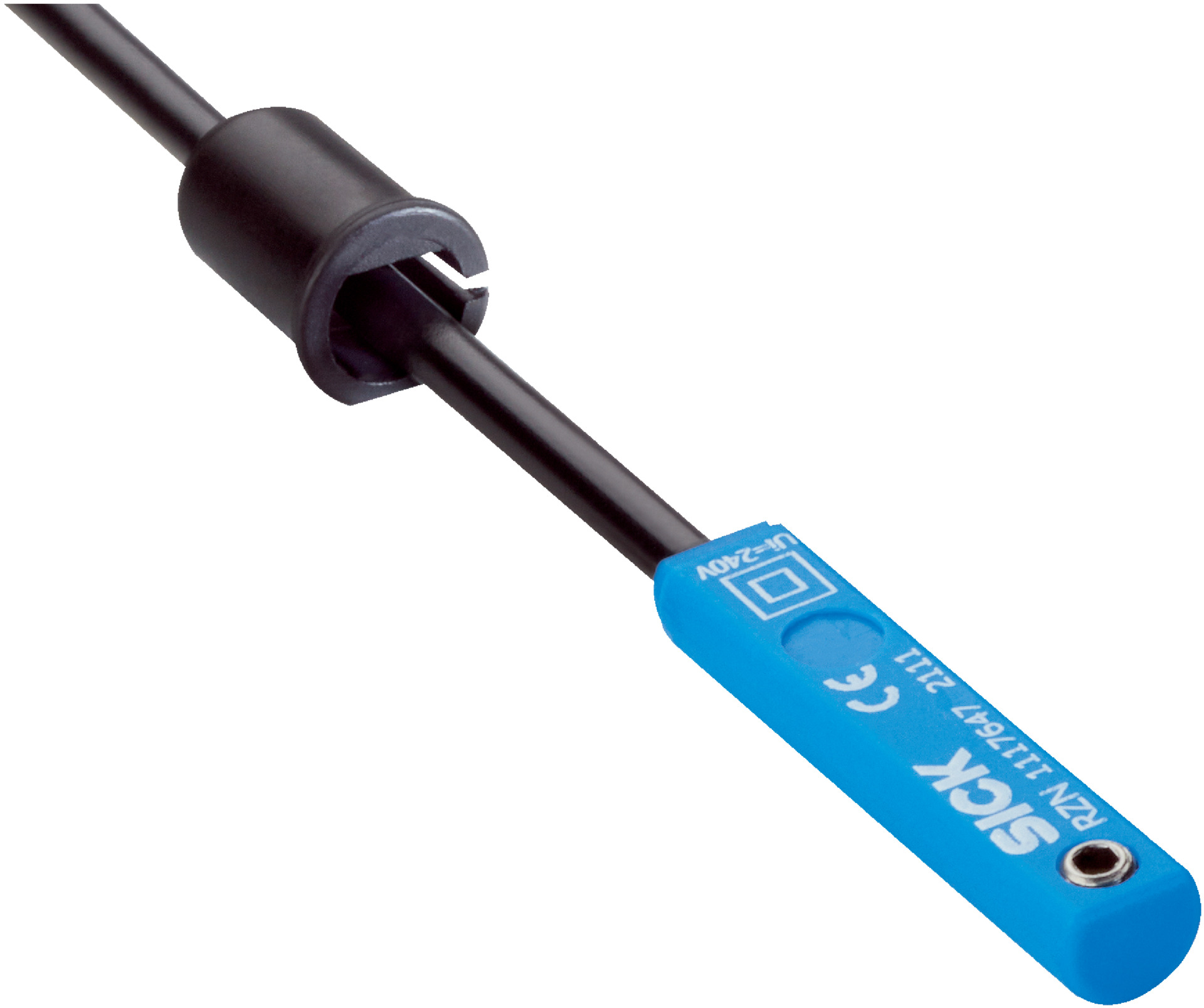

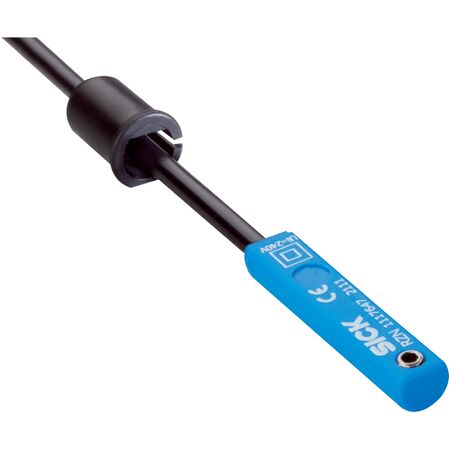

Reed Switch Sensor RZN-03ZWS-KUB | IMI Norgren Slot Compatible | IP67 Rated | 400 Hz Switching Frequency | by SICK
The Reed Switch Sensor RZN-03ZWS-KUB is designed for precise cylinder position detection in industrial automation. With an IMI Norgren slot compatibility and a high switching frequency of up to 400 Hz, this sensor ensures reliable performance in pneumatic systems. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for harsh environments. Equipped with a status indicator LED, it offers operational feedback for enhanced safety and control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: IMI Norgren slot
- Switching output: Reed, normally open (NO)
- Switching frequency: 400 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 5 V AC/DC to 240 V AC/DC
- Rated insulation voltage Ui: 240 V
- Rated impulse withstand voltage Uimp: 4 kV
- Voltage drop: ≤ 3.5 V
- Continuous current Ia: ≤ 100 mA
- Switching capacity: ≤ 10 W
- Protection class: II
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –40 °C to +80 °C
- Shock and vibration resistance: 50 g, 11 ms / 10–55 Hz, 1 mm
- Connection type: Cable, 2-wire, stripped, 5 m PUR cable
- Cable diameter: Ø 2.9 mm
- Bending radius: Fixed installation > 4x cable diameter, flexible use > 8x cable diameter
- Torsion force: ± 270° / 10 cm
- Torsion cycles: > 300,000
- Housing material: Plastic
- Cable material: PUR
- Items supplied: 1 x mounting clip plugged in
- Dimensions (H x L x W): 15mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- IMI Norgren slot cylinder type compatible
- Reed switching output with normally open (NO) function
- High switching frequency up to 400 Hz
- Wide supply voltage range from 5 V AC/DC to 240 V AC/DC
- IP67 rated enclosure for dust and water protection
- Status indicator LED for operational feedback
- Robust design with shock and vibration resistance
- Cable connection with 5 m PUR cable and axial outlet
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure safety and optimal performance.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient switching technology
- Durable design reduces waste through extended product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RZN-03ZWS-KUB Reed Switch Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
