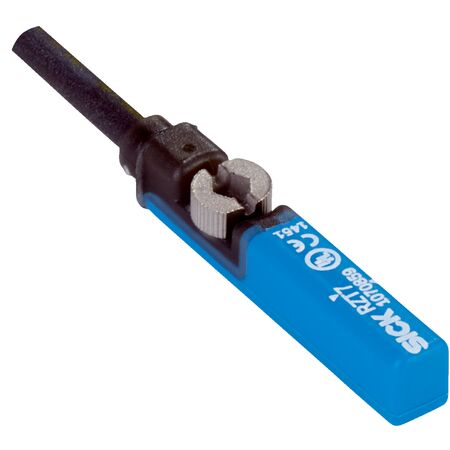

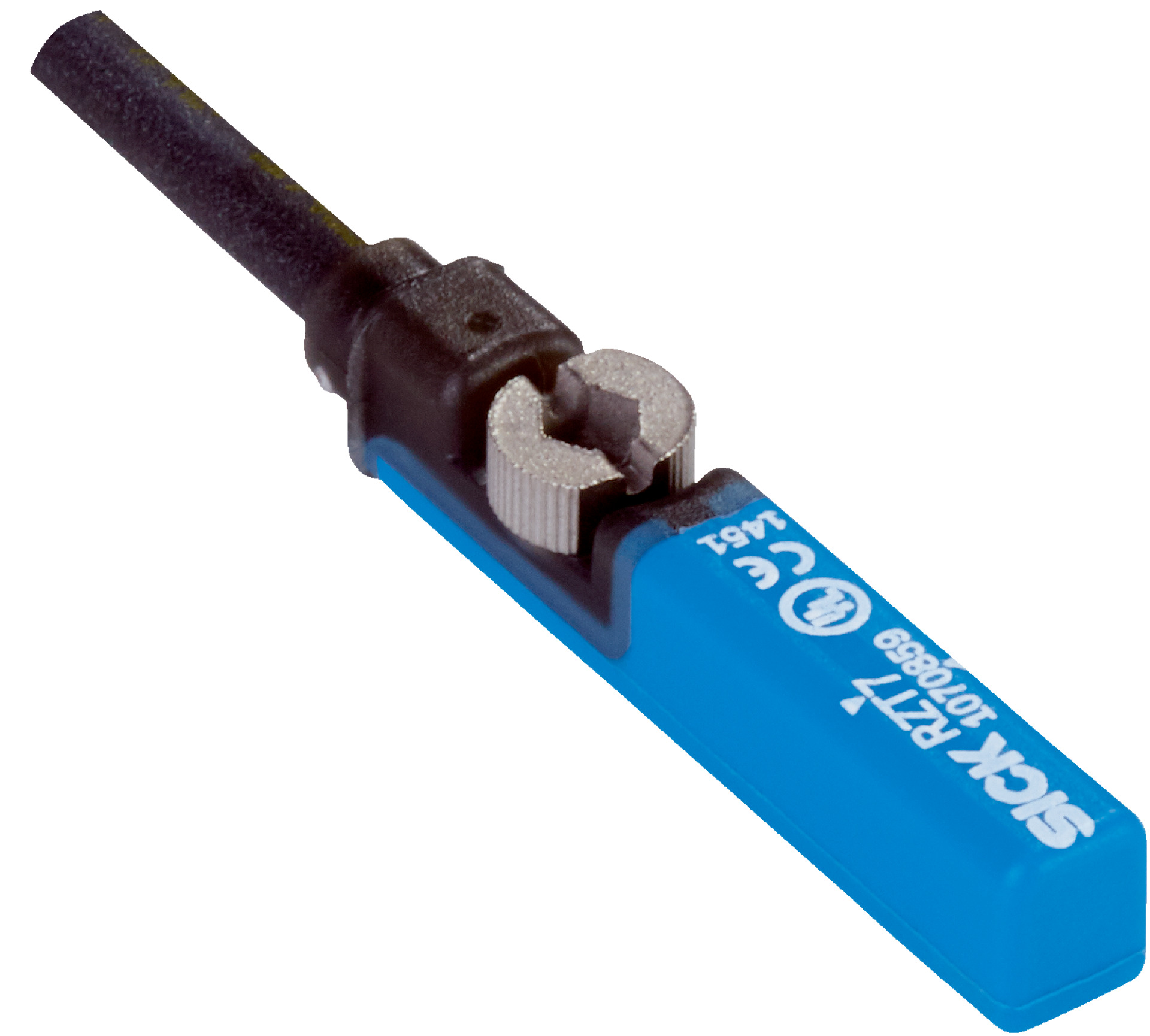

Reed Switch Sensor RZT7-03ZUO-KQ0 | T-Slot Cylinder Type | IP65 & IP67 Rated | 400 Hz Switching Frequency | by SICK
The Reed Switch Sensor RZT7-03ZUO-KQ0 is designed for industrial automation, featuring a T-slot cylinder type compatible with various adapters. With a robust IP65 and IP67 enclosure rating, it operates within a wide supply voltage range of 5 V to 30 V AC/DC and boasts a high switching frequency of up to 400 Hz. Ideal for position sensing in demanding environments, this sensor ensures reliability and durability for your automation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 32.5 mm
- Switching output: Reed, NC function
- Switching frequency: 400 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP65 and IP67
- Supply voltage: 5 V to 30 V AC/DC
- Voltage drop: ≤ 3.5 V
- Continuous current Ia: ≤ 100 mA
- Switching capacity: ≤ 6 W
- Protection class: III
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: No
- Ambient operating temperature: -30 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M12 3-pin connector, 0.3 m length
- Cable diameter: 2.9 mm
- Bending radius: > 3x cable diameter fixed installation
- Torsion force: ± 270° / 10 cm
- Drag chain cycles: > 2,000,000
- Material housing: Plastic, Grilamid LVX-65H SST
- Cable material: PUR
- Dimensions (H x L x W): 10mm x 33mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder adapters
- Reed switching output with NC function
- High switching frequency up to 400 Hz
- Wide supply voltage range from 5 V to 30 V AC/DC
- Robust housing with IP65 and IP67 enclosure rating
- Cable with M12 3-pin connector, suitable for drag chain use
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Long service life with MTTFD of 167,567 years and 500,000 switching cycles
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for environments requiring IP65/IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 5 V to 30 V AC/DC
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RZT7-03ZUO-KQ0 Reed Switch Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
