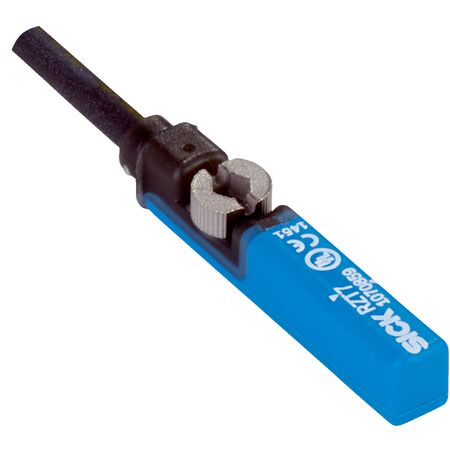

Reed Switch Sensor RZT7-03ZUS-KQ0 | T-Slot Cylinder Type | IP65/IP67 Rated | 400 Hz Switching Frequency | by SICK
The Reed Switch Sensor RZT7-03ZUS-KQ0 is designed for precise position sensing in industrial automation. With a T-slot cylinder type and a high switching frequency of up to 400 Hz, it’s perfect for various cylinder applications. Its IP65/IP67 rated enclosure ensures reliable performance in harsh environments, making it an ideal choice for professionals seeking durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 29.5 mm
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 400 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP65 and IP67
- Supply voltage: 5 V to 30 V AC/DC
- Voltage drop: ≤ 3.5 V
- Continuous current Ia: ≤ 100 mA
- Switching capacity: ≤ 6 W
- Protection class: III
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M12 3-pin connector, 0.3 m length
- Cable specifications: PUR, diameter 2.9 mm, conductor cross section 0.14 mm²
- Torsion force: ±270° / 10 cm
- Torsion cycles: > 2,000,000
- Drag chain cycles: > 2,000,000
- Material housing: Plastic, Grilamid LVX-65H SST
- Dimensions (H x L x W): 30mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder adapters
- Reed switching output with normally open (NO) function
- High switching frequency up to 400 Hz
- Wide supply voltage range from 5 V to 30 V AC/DC
- IP65 and IP67 rated enclosure for dust and water protection
- Status indicator LED for operational feedback
- Robust cable with M12 3-pin connector and drag chain suitability
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Long service life with MTTFD of 23,876 years and 10 million switching cycles
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP65/IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient switching technology
- Durable materials reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK RZT7-03ZUS-KQ0 reed switch sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
