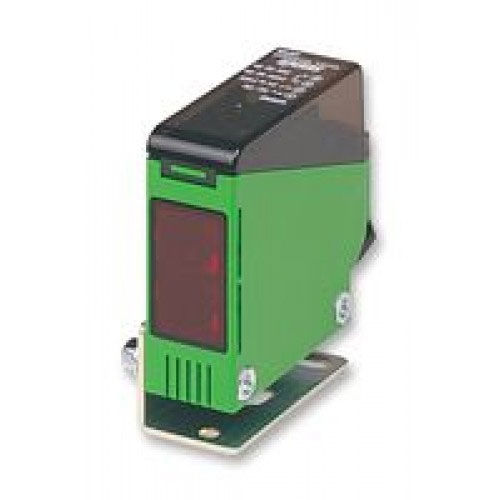

Reflective Beam Sensor 7m AC DC Power Relay Output Ness

BRAND: Ness
SKU: 106-207
$292.30 List price: $389.70
+ −
30 Days Return Electricians Unlock Trade Access
Ness reflective beam sensor features a 7m range, fast response, AC or DC power and relay output. Ideal for alarm systems.

Alternatively Known As: Takex NA-M7R Fast Response Reflective Beam, Polarised Retroreflective Photoelectric Sensor, Alarm Beam Sensor

Technical Specifications
  • Model: Takex NA-M7R
  • Sensing Method: Polarised retroreflective
  • Detection Distance: 0.03–7m with K-7 reflector
  • Power Supply: 24–240V AC/DC ±10%, 50/60Hz
  • Power Consumption: 2W or less
  • Output: Relay output 1a, rated 3A
  • Operation Mode: Selectable light ON/dark ON
  • Response Time: 10ms or less
  • Light Source: Red LED, 700nm
  • Connection: M3.5 screw terminal block
  • Ingress Protection: IP66
  • Operating Temperature: -25°C to +55°C, non-freezing
  • Reflector: K-7 included
  • Dimensions (H x L x W): 50mm x 60mm x 43.5mm
  • Weight: 0.17 kg
Key Features
  • 7m detection range using the supplied K-7 reflector
  • Universal 24–240V AC/DC power supply
  • Fast response time of 10ms or less
  • Selectable light-ON and dark-ON operation
  • Relay contact output for alarm and control systems
  • Polarised retroreflective detection for mirror-like opaque targets
  • Red LED provides alignment and operation indication
  • IP66-rated housing for protected indoor and industrial applications
Professional Installation Requirements
  • Installation and wiring should be performed by a suitably qualified electrician or alarm technician. Isolate the supply before wiring, and install in accordance with AS/NZS 3000 and the manufacturer's instructions when connected to mains-voltage AC.
Applications
  • Alarm system perimeter or access detection
  • Car wash vehicle detection
  • Conveyor and object detection
  • Industrial automation and control systems
  • Doorway, passage and equipment protection
Environmental Benefits
  • Low power consumption of up to 2W per sensor reduces operating energy demand
  • Durable ABS and acrylic construction can support extended service life and reduce replacement waste
Warranty Information

Ness Corporation's general warranty provides three years from the date of purchase against manufacturing defects for Ness-manufactured products and products supplied by Ness, unless otherwise specified.

Available Now

Available through Ness and authorised Australian security, electrical and industrial automation distributors.
