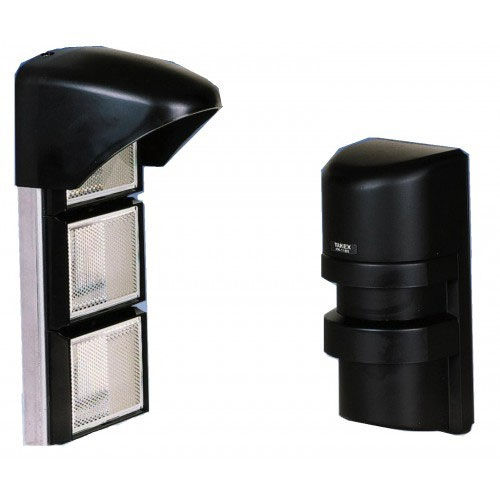

Reflective PE Beam Sensor 11m Outdoor Range Adjustable Timer Ness

BRAND: Ness
SKU: 106-206
$593.70 List price: $791.70
+ −
30 Days Return Electricians Unlock Trade Access
Ness reflective PE beam sensor features an 11m outdoor range, high light rejection and adjustable timer. Ideal for outdoor alarm systems.

Alternatively Known As: Reflective PE Beam, Retroreflective Infrared Beam Sensor, Outdoor Perimeter Beam, Takex PR-11BE

Technical Specifications
  • Detection Type: Near-infrared reflective beam interruption system ([takex.com](https://takex.com/storage/series_download/Cat_PR-11BE.pdf?utm_source=openai))
  • Detection Range: 1–11 m outdoors; 1–15 m indoors ([ness.com.au](https://ness.com.au/106-206))
  • Supply Voltage: 10.5–30 V DC, non-polarity ([ness.com.au](https://ness.com.au/106-206))
  • Current Consumption: 55 mA or less ([takex.com](https://takex.com/storage/series_download/Cat_PR-11BE.pdf?utm_source=openai))
  • Alarm Output: Selectable N/O or N/C dry-contact relay, 30 V AC/DC, 0.5 A maximum ([takex.com](https://takex.com/storage/series_download/Cat_PR-11BE.pdf?utm_source=openai))
  • Response Timer: Adjustable from 0.05 to 0.7 seconds ([takex.com](https://takex.com/storage/series_download/Cat_PR-11BE.pdf?utm_source=openai))
  • Light Rejection: Up to 50,000 lux ([ness.com.au](https://ness.com.au/106-206))
  • Tamper Output: N/C dry-contact relay activated when the cover is detached ([takex.com](https://takex.com/storage/series_download/Cat_PR-11BE.pdf?utm_source=openai))
  • Ingress Protection: IP55 housing ([takex-eng.co.jp](https://www.takex-eng.co.jp/en/catalog_e.pdf?utm_source=openai))
  • Operating Temperature: −25°C to +60°C ([takex.com](https://takex.com/storage/series_download/Cat_PR-11BE.pdf?utm_source=openai))
  • Adjustment: Sensor head adjustable through ±90° horizontally and ±10° vertically ([takex-eng.co.jp](https://www.takex-eng.co.jp/en/catalog_e.pdf?utm_source=openai))
  • Dimensions (H x L x W): 231.5mm x 231.5mm x 100mm
  • Weight: 0.92 kg
Key Features
  • 11 m outdoor and 15 m indoor reflective detection range
  • High visible-light rejection for reliable outdoor operation
  • Single-sided cabling simplifies installation where wiring both ends is impractical
  • Selectable normally open or normally closed alarm output
  • Adjustable response timer for application-specific detection requirements
  • Built-in tamper output and attenuation/alarm indication
  • IP55 housing for indoor and outdoor security applications
  • Suitable for driveway, pathway and perimeter protection
Professional Installation Requirements
  • Installation should be performed by a qualified security installer or electrician. Wire the low-voltage supply and alarm/tamper outputs in accordance with the alarm-system manufacturer’s instructions and applicable local requirements.
Applications
  • Outdoor residential alarm systems
  • Driveway and gate perimeter protection
  • Commercial security perimeters
  • Industrial site access and boundary monitoring
  • Indoor beam-break detection where longer-range reflective sensing is required
Standards & Compliance
  • Applicable intruder-alarm installation reference: AS/NZS 2201.1:2007, covering the design, installation, commissioning and maintenance of intruder alarm systems; product-specific certification was not verified. ([codehub.building.govt.nz](https://codehub.building.govt.nz/assets/_generated_pdfs/2201-12007asnzs-11754.pdf?utm_source=openai))
Environmental Benefits
  • Low-voltage 55 mA operation helps limit energy consumption during continuous monitoring
  • Durable IP55 outdoor housing can extend service life and reduce replacement waste
  • Long-range perimeter detection can support alarm zoning and reduce reliance on higher-power security equipment
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness Corporation’s terms and exclusions. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))

Available Now

Available through Ness Corporation and authorised Australian security and electrical distributors. ([ness.com.au](https://ness.com.au/106-206))
