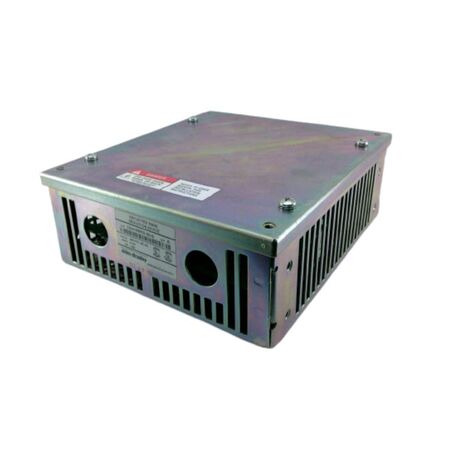

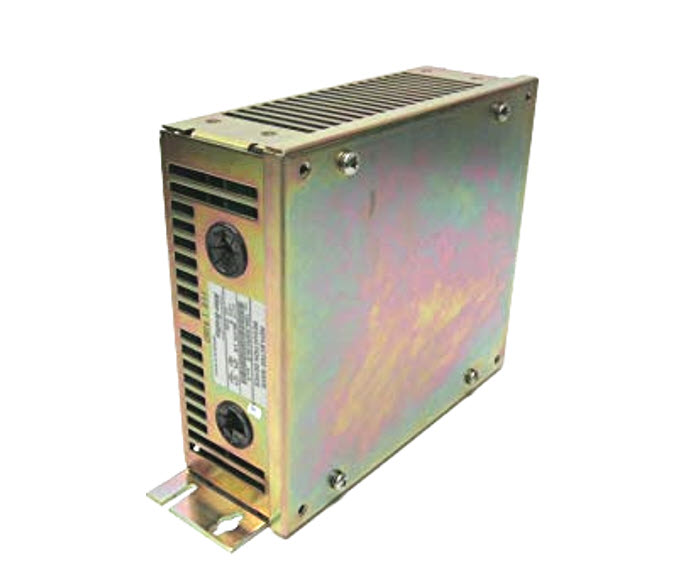

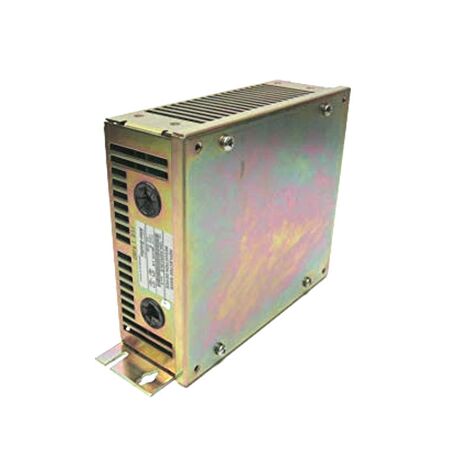

Reflective Wave Reduction Device | 9.0 A Current Rating | IP20 Protection | by Allen-Bradley
The Reflective Wave Reduction Device is designed for effective electrical noise reduction in industrial motor control panels. With a robust 9.0 A current rating at 380-575V AC and IP20 protection, this panel mount device ensures compliance with UL-NEMA Type 1 standards. Ideal for applications requiring common mode choke, it enhances energy efficiency and extends equipment lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Carrier Frequency: 2 kHz recommended, 4 kHz maximum
- Current Rating: 9.0 A at 380-575V AC
- Mounting: Panel mount
- Protection Rating: IP20
- Compliance: UL-NEMA Type 1
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Reflective wave reduction with common mode choke
- Supports 2 kHz carrier frequency recommended, up to 4 kHz maximum
- Rated for 9.0 A at 380-575V AC
- Panel mount design with IP20 protection
- UL-NEMA Type 1 compliant
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into motor control panels.
Applications
- Industrial motor control panels
- Electrical noise reduction in AC motor drives
- Panel mount installations requiring common mode choke
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces electrical noise and interference, improving energy efficiency and equipment lifespan
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1204RWR209B Reflective Wave Reduction Device is available for immediate purchase, ideal for industrial motor control and electrical noise reduction applications.
