Relay Interface Module 6A 1 Changeover | 110V AC/DC | LED Indicator | DIN Rail by NHP
Relay interface module with 6A changeover contact and 110V AC/DC operation—ideal for automation systems and control panels. Built for industrial and commercial use, featuring LED status indication and DIN rail compatibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

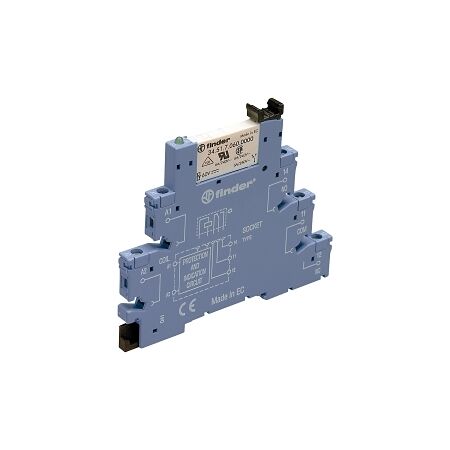

Product Name/Title: Finder 38 Series Relay Interface Modules Relay 6A 1 Changeover 110V AC DC Coil
Brand: NHP
SKU: 3851110VACDC
Alternatively Known As: Relay Module, Switching Relay, Interface Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage AC: 400 V
- Rated Switching Power at AC 1: 1500 VA
- Rated Switching Power at AC 15 230 V: 300 VA
- Breaking Capacity at DC 1 30 V: 6 A
- Breaking Capacity at DC 1 110 V: 0.2 A
- Voltage Type for Actuating: AC/DC
- Degree of Protection: IP20
- Type of Electric Connection: Screw connection
- Material of Contact: Silver nickel
- Material of Contact Insert: Thermoplastic
- Dimensions (H x L x W): 88mm x 72mm x 62mm
- Weight: 0.2 kg
Key Features
- 1 changeover contact with a nominal current of 6A.
- Suitable for AC/DC operation with a control supply voltage of 110V.
- LED indication for operational status.
- DIN rail mounting compatible.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC controls
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 38 Series Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
