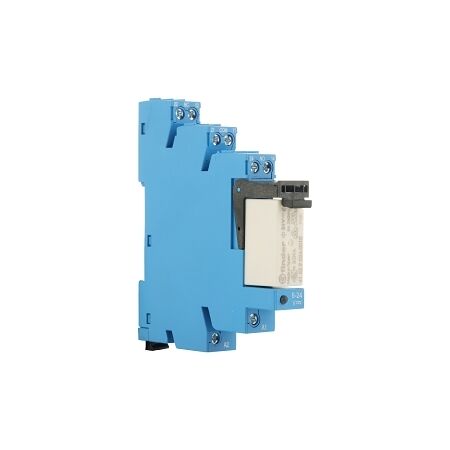

Relay Interface Module 6A 1 Changeover | 12V DC Sensitive Coil | LED Status | Spring Clamp by NHP
Relay interface module with 6A 1 changeover contact and 12V DC sensitive coil—ideal for automation systems and control panels. Built for easy installation with LED status indication and spring clamp connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 38 Series Relay Interface Modules Relay 6A 1 Changeover 12V DC Sensitive Coil
Brand: NHP
SKU: 386112VDC
Alternatively Known As: Relay Module, Interface Relay, Switching Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Number of Contacts: 1 Changeover Contact
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 300 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Breaking Capacity at DC-1 (110 V): 0.2 A
- Control Supply Voltage (US) at DC: 12 V
- Electrical Life at Un in Service: 60000 cycles
- Mechanical Life: 10000000 cycles
- Degree of Protection: IP20
- Material of Contact: Silver Nickel
- Material of Contact Insert: Thermoplastic
- Dimensions (H x L x W): 93.6mm x 72.5mm x 62mm
- Weight: 0.5 kg
Key Features
- Mono stable drive switching attitude.
- LED indication for operational status.
- Spring clamp connection for easy installation.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC controls
- General: Any application requiring relay control
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 38 Series Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable relay control.
