Relay Interface Module 6A 1 Changeover | 230V AC Coil | LED Status | DIN Rail by NHP
Relay interface module with 6A nominal current and 230V AC coil—ideal for industrial automation and control panels. Built for reliable relay control, with LED status indication and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

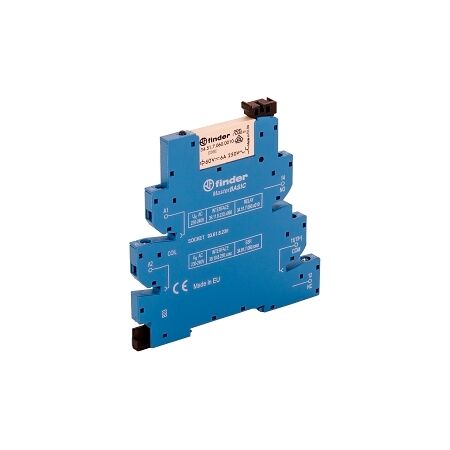

Product Name/Title: Finder 39 Series Master Basic Relay Interface Module 6A 1 Changeover 230V AC Coil
Brand: NHP
SKU: 3911230VAC
Alternatively Known As: Relay Interface Module, Switching Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC 1: 1500 VA
- Rated Switching Power at AC 15 230 V: 300 VA
- Electrical Life: 60,000 cycles
- Mechanical Life: 10,000,000 cycles
- Degree of Protection: IP20
- Operating Temperature: -40 to 70 °C
- Type of Electric Connection: Screw connection
- Dimensions (H x L x W): 87mm x 91mm x 62mm
- Weight: 0.2 kg
Key Features
- 1 changeover contact with a nominal current of 6A.
- LED indication for operational status.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC control
- General: Any application requiring relay control for electrical devices
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 39 Series Master Basic Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable relay control.
