Relay Interface Module 6A 1 Changeover | 240V AC Coil | LED Indicator | DIN Rail by NHP
Relay interface module with 6A nominal current and 1 changeover contact—ideal for industrial automation and control panels. Built for reliable relay control, with LED status indication and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

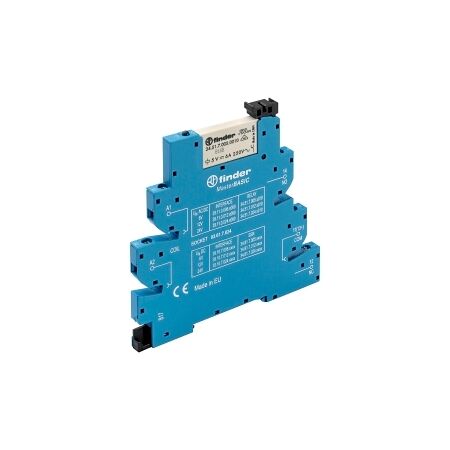

Product Name/Title: Finder 39 Series Master Plus Relay Interface Modules 6A 1 Changeover 240V AC Coil Fuseable Output
Brand: NHP
SKU: 3931230VAC
Alternatively Known As: Relay Interface Module, Switching Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 300 VA
- Electrical Life: 60000 cycles
- Mechanical Life: 10000000 cycles
- Degree of Protection: IP20
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 943mm x 907mm x 62mm
- Weight: 0.5 kg
Key Features
- 6A nominal current with 1 changeover contact.
- LED indication for operational status.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC control
- General: Any application requiring relay control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 39 Series Master Plus Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable relay control.
Non-Returnable & Non-Cancellable
